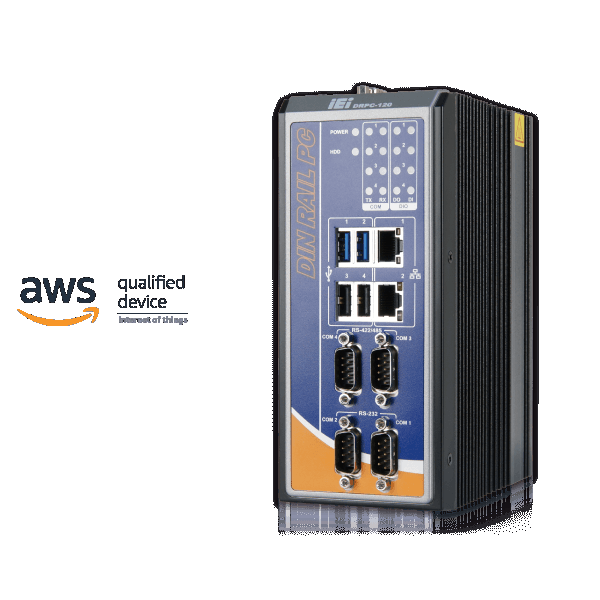

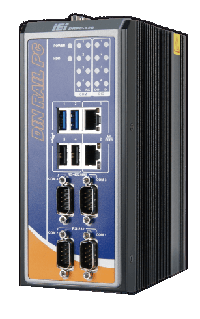

> 产品 > 导轨安装嵌入式系统 > DRPC-120-BT| ● Intel® Atom™ E3845 1.91GHz |
| ● 1 x 2.5' SATA HDD/SSD drive bay |
| ● DDR3L 1.35V SO-DIMM support |
| ● Programmable OLED display |
| ● 8-bit digital I/O (4-bit inputs/outputs) |
| ● IEI iRIS-2400 solution |
产品规格
| Factor | CPU: |
| Intel® Atom™ E3845 1.91 GHz | |
| Chipset:SoC | |
| System Memory: | |
| One 2 GB 204-pin DDR3L SO-DIMM pre-installed | |
| (system max: 8 GB) | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5' SATA 6Gb/s HDD/SSD Bay |
| Indicators | Power/HDD/Com port/DIO |
| I/O Ports | 2 x USB 3.0 |
| 2 x USB 2.0 | |
| Ethernet: | |
| 2 x RJ-45 | |
| 1 x PCIe GbE by Intel® I210 controller | |
| 1 x PCIe GbE by Intel® I211 controller | |
| COM Port: | |
| 2 x DB-9 w/3KV isolation protection | |
| 2 x DB-9 w/3KV isolation protection | |
| 8-bit digital I/O, 4-bit input/4-bit output | |
| 1 x VGA, 1 x HDMI | |
| 802.1 b/g/n 2T2R (optional) | |
| Operating Temperature | -20°C ~ 60°C with air flow (SSD) |
| Humidity | 5% ~ 95%, non-condensing |
| Dimensions | 74.08 x 140 x 171.5 |
| Weight | 1.4 kg/2.5 kg |
| Color | Black |
| Expansion Slots | 1 x Half-size PCIe Mini slot (w/o USB signal) |
| 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) |
| DRPC-120-BTi-E5-LED/2G-R10 | Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, LED indicators, RoHs |
| DRPC-120-BTi-E5-OLED/2G-R10 | Fanless embedded system, Intel® Bay-Trail E3845 1.91 GHz, TDP 10W, 2GB DDR3L pre-installed memory, 1 x VGA, 1 x HDMI, 8 CH DIO, iRIS-2400 optional,9 V~30 V DC, OLED indicators, RoHs |
