DRPC-240-TGL-U

Enlarge image

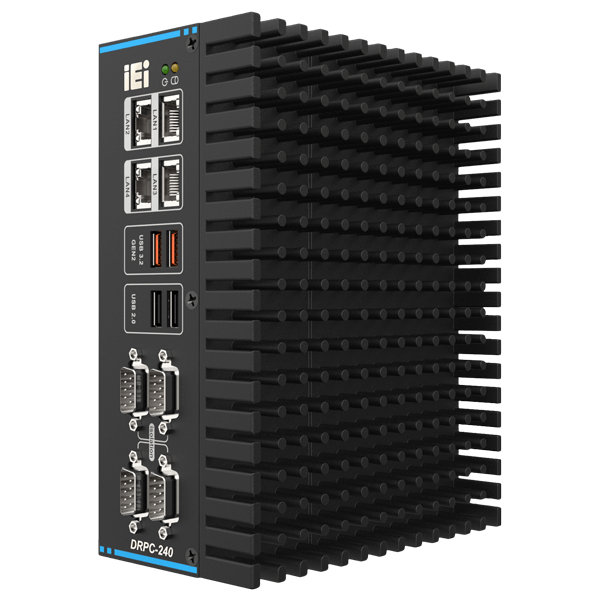

无风扇导轨嵌入式系统 采用 Tiger Lake 第11代 Intel Core方案

Datasheet (PDF)    Download (Deriver/BIOS/Manual/QIG)



产品特征 产品特征

» 支持的CPU:
Intel® Celeron® 6305/6305E 1.8 GHz (dual-core, 15W TDP)
Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, 15W TDP)
Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, 15W TDP)
» 4 x 2.5GbE ports, 支持PoE(可选)
» 2 x RS-232 & 2 x RS-422/485 (2.5kV隔离)
» 兼容CE/FCC

产品规格 产品规格

SBC Form Factor● CPU:
Intel® Celeron® 6305E 1.8 GHz (dual-core, TDP 15W)
Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W)
Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W)
● 芯片组:
SoC
● 系统内存:
2 x SO-DIMM DDR4 3200 MHz (预装8 GB ) (支持多达到64GB)
● 电源:
输入: 接线端子: 12 ~ 28V直流
功率: 12V @ 6.98A (Intel ® Core™ i5-1145G7E带8GB内存)
I/O Ports● USB:
2 x USB 3.2 Gen 2
2 x USB 2.0
● Ethernet: 4 x RJ-45 (* 支持可选的 PoE AF 模块)
1 x 2.5 GbE by Intel® I226LM
3 x 2.5 GbE by Intel® I226V (colay I226LM)
● COM Port:
2 x RS-422/485 with AFC (DB-9, 带2.5kV隔离)
2 x RS-232 (DB-9, 带2.5kV隔离)
● Digital I/O:
12-bit Digital I/O (6-in/ 6-out) (optional)
● 显示:
1 x HDMI™ (up to 3840 x 2160@30Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
● TPM:
支持Intel PTT
● 看门狗:
可编程 1 ~ 255 秒/分钟
Expansion Slots● M.2:
1 x 2230 A-key (PCIe Gen3 x1/USB 2.0)
1 x 3042/52/80 B-key (PCIe Gen3 x1/USB 3.0/USB 2.0)
1 x 板载SIM卡槽 (合页类) 适用于M.2 B key
● 背板:
1 x PCIe x4
(选配)
Cooling method / System Fan无风扇
4 针外部系统风扇连接器
Drive Bays1 x 2.5” SATA 6Gb/s HDD/SSD bay
Buttons1 x 电源开关
1 x 复位开关
1 x AT/ATX switch
Indicators1 x 电源灯 (绿色)
1 x 硬盘灯 (黄色)
Construction铝合金
Color黑色
Dimensions81 x 150 x 190
Weight2.15/ 2.5 kg
工作温度-20°C ~ 60°C 有气流 (SSD)
相对湿度10% ~ 95% 无冷凝
Operating VibrationHalf-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating ShockMIL-STD-810G 514.6C-1 (SSD)
安规&电磁兼容 CE/FCC
OS SupportMicrosoft Windows 10 / Windows 11, Linux

订购信息 订购信息

DRPC-240-TGL-U-i7CS-R11Fanless embedded system, Intel®Tiger Lake-U i7-1185G7E 1.8GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS
DRPC-240-TGL-U-i5CS-R11Fanless embedded system, Intel®Tiger Lake-U i5-1145G7E 1.5GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS
DRPC-240-TGL-U-W10E64-V-R10OS Image with Windows® 10 Enterprise Value 64-bit 2019 for DRPC-240-TGL-U Celeron/i3/i5 Series, with DVD-ROM, RoHS
DRPC-240-TGL-U-W10E64-H-R10OS Image with Windows® 10 Enterprise High End 64-bit 2019 for DRPC-240-TGL-U i7 Series, with DVD-ROM, RoHS
DRPC-240-TGL-U-CECS-R11Fanless embedded system, Intel®Tiger Lake-U Celeron® 6305E 1.8GHz (dual core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS
