DRPC-242-ADL-P

Enlarge image

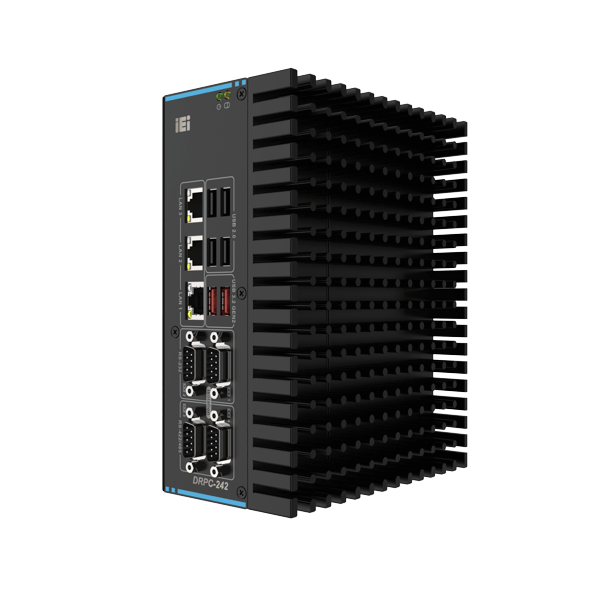

无风扇 DIN 导轨嵌入式系统

Datasheet (PDF)    Download (Deriver/BIOS/Manual/QIG)



产品特征 产品特征

» Supported CPUs:
Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
Intel® Celeron® 7305 (5-core, 15W TDP)
» 2 x USB 3.2 Gen2 & 4 x USB 2.0
» 2 x RS-232 & 2 x RS-422/485 (待2.5KV隔离)
» 符合CE/FCC

产品规格 产品规格

SBC Form Factor●Supported CPU:
Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
Intel® Celeron® 7305 (5-core, 15W TDP)
●芯片组:
SoC
●系统内存:
2 x SO-DIMM slot DDR4 3200 MHz (预装8GB) (最大上限64GB)
●电源:
3针凤凰端子: 12-28V直流
功耗: 12V@4.46A (Intel® Core™ i7-1260P 带8GB DDR4内存)
I/O Ports●USB:
2 x USB 3.2 Gen2
4 x USB 2.0
●网络:
1 x 2.5 GbE by Intel® I226LM controller support iAMT
2 x 2.5 GbE by Intel® I226-V controller
●显示:
1 x lockable HDMI™ 1.4b (up to 4096 x 2160@30Hz)
1 x DP 1.4b (up to 4096 x 2160 @60Hz)
●COM Port:
2 x RS-232 (DB9 with 2.5KV isolation)
2 x RS-232 (选配)
2 x RS-422/485 with AFC (DB9 with 2.5KV isolation)
●GPIO:
1 x 12-bit(6-in, 6-out)(选配)
●TPM:
支持 Intel PTT
●看门狗定时器：
可编程 1 ~ 255 秒/分钟
Expansion Slots●M.2:
1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro
1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0)
1 x 板载SIM 卡槽 (hinge type) for M.2 B key
1 x 2280 M-key (PCIe Gen4 x4)
●Backplane:
1 x PCIe Gen3 x4 (选配)
Cooling method / System Fan无风扇
4-pin 外部风扇接口
Drive Bays1 x 2.5” SATA 6Gb/s SSD bay
Buttons1 x 电源开关
1 x 2-pin凤凰端子远程开关接口
1 x 复位开关
1 x AT/ATX 开关
Indicators1 x 电源灯
1 x 硬盘灯
Construction铝合金
Color黑色
Dimensions81 x 150 x190 mm
Weight1.88 / 2.66KG
工作温度-20°C ~ 60°C 带0.7M/S气流 (SSD)
相对湿度10% ~ 95% 无冷凝
Operating Vibration10-500 Hz,1.04 Grms, random, 1 hr/axis
Operating ShockHalf-sine wave shock 5G, 11ms, 100 shocks per axis
安规&电磁CE, FCC, UKCA
OS SupportMicrosoft® Windows® 10/11, Linux

订购信息 订购信息

DRPC-242-ADL-P-i7CS-R11Embedded system with 12th Gen Intel® Core™ i7-1260P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-i5CS-R11Embedded system with 12th Gen Intel® Core™ i5-1240P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-i3CS-R11Embedded system with 12th Gen Intel® Core™ i3-1220P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-Ri7ECS-R11Embedded system with 13th Gen Intel® Core™ i7-1370PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-Ri5ECS-R11Embedded system with 13th Gen Intel® Core™ i5-1340PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-Ri3ECS-R11Embedded system with 12th Gen Intel® Core™ i3-1320PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
DRPC-242-ADL-P-CCS-R11Embedded system with 12th Gen Intel® Celeron® 7305, TDP 15W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
