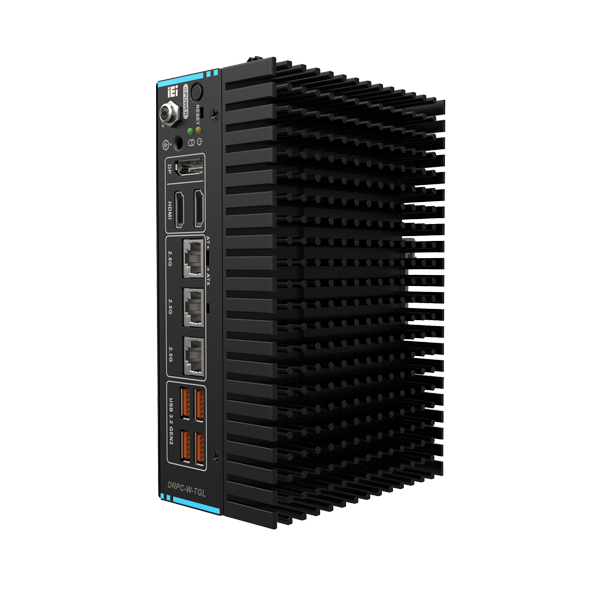

> 产品 > 导轨安装嵌入式系统 > DRPC-W-TGL
| » 支持的CPU: |
|
Intel® Core™
i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W)
|
|
Intel® Core™
i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W)
|
|
Intel® Core™
i3-1115G4E 2.2 GHz (up to 3.9 GHz, dual-core, TDP 15W)
|
|
Intel®
Celeron® 6305/6305E 1.8 GHz (dual-core, TDP 15W)
|
|
» 支持三独立显示
|
|
» 3 x 2.5GbE
ports
|
|
» 1 x M.2 A
Key
|
|
» 1 x M.2 B
Key (带SIM卡槽)
|
|
» 符合 CE/FCC 标准
|
| SBC Form Factor | ● Supported
CPU: Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W) Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W) Intel® Core™ i3-1115G4E 2.2 GHz (up to 3.9 GHz, dual-core, TDP 15W) Intel® Celeron® 6305/6305E 1.8 GHz (dual-core, TDP 15W) ● 芯片组: SoC ● 系统内存: 1 x DDR4 3200MHz SO-DIMM (预装8GB) (****支持到32GB) ● 电源: 直流插孔: 12 V直流 ● 功耗: 12V@4.1A (Intel i5-1145G7E 带8GB DDR4内存) |
| I/O Ports | ●
USB: 4 x USB 3.2 Gen 2 ● 网络: LAN1: Intel® I225V 2.5GbE (I225-LM for i5/i7 SKU) LAN2/3: Intel® I225V 2.5GbE ● 显示: 2 x HDMI™ 1 x DP ● TPM: 支持 Intel PTT ● 看门狗定时器： 可编程 1 ~ 255 秒/分钟 |
| Expansion Slots | ●
M.2: 1 x M.2 A Key 2230 for WIFI & BT (选配) 1 x M.2 B Key (PCIe x2) 3042/3052 w/SIM slot for 5G (选配) |
| Cooling method / System Fan | 无风扇 4 针外部系统风扇连接器 |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Buttons | 1
x 电源开关 1 x 复位开关 |
| Indicators | 1
x 电源灯 1 x 硬盘灯 |
| Construction | 铝合金 |
| Color | 黑色 |
| Dimensions | 176 x 116 x 67.8 (mm) |
| Weight | 0.98/1.2 Kg |
| 工作温度 | -20°C ~ 60°C 有气流 |
| 相对湿度 | 10% ~ 95% 无冷凝 |
| Operating Vibration | 10-500 Hz,1.04 Grms, random, 1 hr/axis |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| 安规&电磁 | 符合CE/FCC认证 |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
| DRPC-W-TGL-U-i7C-R10 | Fanless System with Intel® Tiger Lake-U Core™ i7-1185G7E 1.8GHz (up to 4.4GHz, quad-core, TDP 15W), 3 x 2.5GbE Lan, 2 x HDMI, 1 x DP, 8GB memory pre-installed, 12V DC, RoHS |
| DRPC-W-TGL-U-i5C-R10 | Fanless System with Intel® Tiger Lake-U Core™ i5-1145G7E 1.5GHz(up to 4.1GHz,quad-core,TDP 15W),3 x 2.5GbE Lan,2 x HDMI,1 x DP,8GB memory pre-installed,12V DC,RoHS |
| DRPC-W-TGL-U-i3C-R10 | Fanless System with Intel® Tiger Lake-U Core™ i3-1115G4E 2.2GHz(up to 3.9GHz,dual-core,TDP 15W),3 x 2.5GbE Lan,2 x HDMI,1 x DP,8GB memory pre-installed,12V DC,RoHS |
| DRPC-W-TGL-U-CEC-R10 | Fanless System with Intel® Tiger Lake-U Celeron™ 6305E 1.8GHz(dual-core,TDP 15W),3 x 2.5GbE Lan,2 x HDMI,1 x DP,8GB memory pre-installed,12V DC,RoHS |
