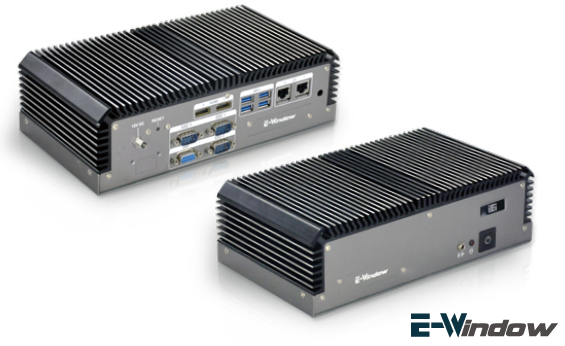

> 产品 > 强固型系统 > ECN-360A-ULT3| ● On-board CPU |
|
» i5-6300U dual-core up to 3.0GHz
|
|
» 3855U dual-core up to 1.6GHz
|
|
● Two 2.5"" SATA 6Gb/s HDD/SSD
drive bay
|
|
● Operating temperature: -20°C ~ 60 °C
|
|
● Two flexible E-Window for modularized
expansion I/O
|
产品规格
|
SBC Form Factor
|
Refer to SBC |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
2 x 2.5” SATA HDD bay(No RAID support) |
|
Buttons
|
Power switch |
|
Indicators
|
Power, HDD |
|
I/O Ports
|
4 x USB3.0 |
| 2 x LAN | |
| 1 x RS-232/422/485 | |
| 2 x RS-232 | |
| 1 x 8-bit digital I/O | |
| 2 x HDMI | |
| 1 x Line-out | |
| 2 x 802.11b/g/n (optional) | |
|
Operating Temperature
|
-20°C ~ 60°C with air flow (SSD) |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Construction
|
SECC |
|
Dimensions
|
255 x 130 x 75 |
|
Weight
|
2.2 kg/ 3kg |
|
Color
|
Black |
|
Expansion Slots
|
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support) |
| 1 x Half-size PCIe Mini card slot |
| ECN-360A-ULT3-i5/4G-R10 | Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed,12V DC, RoHS |
| ECN-360A-ULT3-CE/WD/4G-R10 | Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS |
| ECN-360A-ULT3-i5/WD/4G-R10 | Fanless System with Intel® Core™ i5-6300U up to 3.0GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 9~36V DC, RoHS |
| ECN-360A-ULT3-CE/4G-R10 | Fanless System with Intel® Celeron® 3855U up to 1.6GHz , TDP 15W, 2 x GbE LAN port , 2 x HDMI, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, 12V DC, RoHS |
