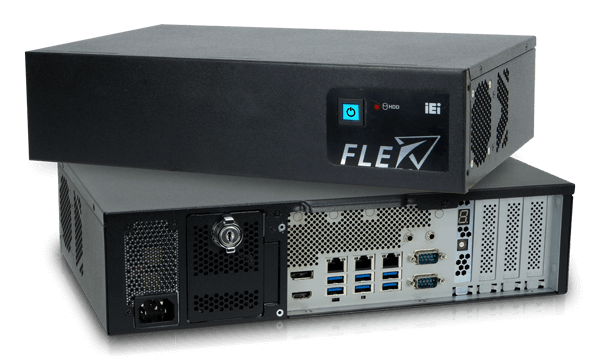

FLEX-BX210-Q470

Enlarge image
2U模块化电脑支持第10、11代 LGA1200 Intel Core i7/i5/i3, Pentium 处理器

Datasheet (PDF)    Download (Deriver/BIOS/Manual/QIG)



产品特征 产品特征

» 支持CPUs:
Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
» 四个支持 RAID 0/1/5/10 的热插拔 HDD/SSD 托架
» 配备 PCIe 3.0 x4 插槽和 PCIe 3.0 x8 插槽
» M.2 2280 PCIe Gen 3 x4 支持NVMe
» 支持IEI Mustang系列加速卡

产品规格 产品规格

SBC Form FactorCPU:
10/11 th Gen Intel® Core™ CPU 35/65W
Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
芯片组:
Q470/Q470E
系统内存:
2 x 288-pin 2933/2666 MHz dual-channel DDR4 unbuffered DIMM (支持多达到64GB)
电源:
ATX 电源,交流输入
350W电源
I/O PortsUSB:
6 x USB 3.2 Gen 1
网络:
3 x 2.5GbE LAN
串口:
2 x RS-232
显示:
1 x HDMI™
1 x DP
声卡:
1 x Line out
1 x Mic in
TPM:
支持 Intel PTT
看门狗定时器：
可编程 1 ~ 255 秒/分钟
Expansion SlotsM.2:
1 x M.2 B-Key 3042/52插槽
(带SIM卡槽,支持 5G/LTE; 支持PCIe 3.0 x1 & USB 3.2 Gen 1)
1 x M.2 M-Key 2280插槽 (支持PCle 3.0 x4)
1 x M.2 A-Key 2230 (支持PCIe 3.0 x1 & USB 2.0)
扩展插槽:
2 x PCle 3.0 x8
2 x PCle 3.0 x4
Cooling method / System Fan3 x 系统风扇, 1 x CPU风扇
Drive Bays4个热插拔 2.5＂ HDD/SSD SATA 6Gb/s 托架 (支持RAID 0/1/5/10), 带LED指示灯
Buttons1 x 电源开关
1 x 复位开关
1 x AT/ATX开关
Indicators1 x 电源灯 (蓝色)
1 x 硬盘灯
Construction金属
Color黑色
Dimensions357 x 230 x 88
Weight4.1 kg/7.2 kg
工作温度-10°C ~ 50°C
相对湿度5% ~ 95%, 无冷凝
Operating Vibration5~17Hz, 0.1 double amplitude displacement 17 ~ 640Hz 1.5G acceleration peak to peak
Operating Shock10G acceleration part to part (11ms)
安规&电磁符合CE/FCC认证
OS SupportMicrosoft Windows 10 / Windows 11, Linux

订购信息 订购信息

FLEX-BX210-Q470-i9D-R202U Modular box PC, Intel® 10th Generation Core™ i9-10900TE 1.8GHz (up to 4.5GHz, 10-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i7D-R202U Modular box PC, Intel® 10th Generation Core™ i7-10700TE 2.0GHz (up to 4.4GHz, 8-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i5C-R202U Modular box PC, Intel® 10th Generation Core™ i5-10500TE 2.3GHz (up to 3.7GHz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20
FLEX-BX210-Q470-i3C-R202U Modular box PC, Intel® 10th Generation Core™ i3-10320 3.8GHz (up to 4.6GHz, 4-core, TDP 65W), 8GB DDR4 pre-installed memory,TPM 2.0, 350W PSU,R20
FLEX-BX210-Q470/35-R20Barebone, 2U AI Modular BOX PC, Intel® COMET Lake, Q470 chipset, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, w/o CPU, 350W PSU, R20
