● Intel®Atom™ x5-E3930 1.3GHz (up to 1.8 GHz) |
● Two GbE LAN ports
|
● Two RS-232/422/485
|
● M.2 A-key slot for WiFi Module
|
● Pre-installed Mustang-MPCIE-MX2, 2 x Intel
Myriad X VPU for AI deep learning workload consolidation
|
产品规格
SBC Form Factor
|
●CPU: |
Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W) | |
●Chipset: | |
SoC | |
●System Memory: | |
1x 204-pin DDR3L SO-DIMM slot pre-installed with 8 GB memory | |
●Power: | |
Input : 2-pin terminal block: 9~36V DC-in | |
●Reliability: | |
Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27 | |
Operating Vibration: MIL-STD-810G 514.6C-1 | |
Safety/EMC: CE/FCC | |
Cooling method / System Fan
|
Fanless |
Drive Bays
|
SATADOM: Pre-installed 128GB |
eMMC: 1 x eMMC 5.0 support (up to 32GB optional) | |
Micro SD: 1 x Micro SD Slot | |
Buttons
|
1 x Power Button |
1 x Reset Button | |
1 x AT/ATX Switch | |
Indicators
|
1 x LED for HDD (Yellow) |
1 x LED for Power (Green) | |
I/O Ports
|
●USB: 2 x USB 3.0 |
●Ethernet:2 x RJ-45 PCIe GbE by Intel® I211 controller | |
●COM Port:2 x RS-232/422/485 (DB-9/RJ45) | |
●Display:1 x VGA | |
Operating Temperature
|
-20°C ~ 50°C with air flow |
Humidity
|
10% ~ 95%, non-condensing |
Construction
|
Extruded aluminum alloy |
Dimensions
|
137 x 102.8 x 49.4 (WxDxH) (mm) |
Color
|
Blue & Silver |
Expansion Slots
|
M.2: |
1 x M.2 A key 2230 (PCIe by 1, USB2.0) | |
PCIe Mini: | |
Pre-installed Mustang-MPCIE-MX2 |

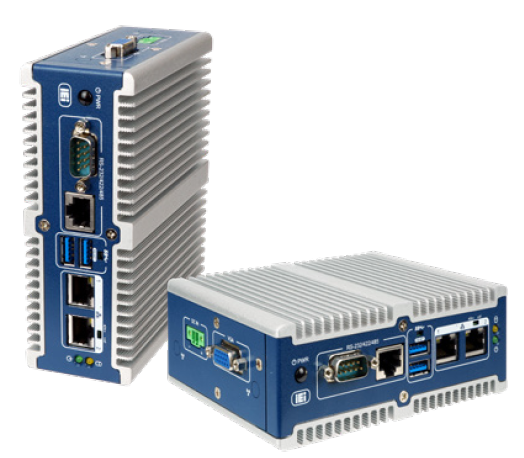

ITG-100AI-E1/8GB/S-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 8GB DDR3L pre-installed memory, VGA, M.2, COM, 9-36V DC, Mustang-MPCIE-MX2 and RoHS |
