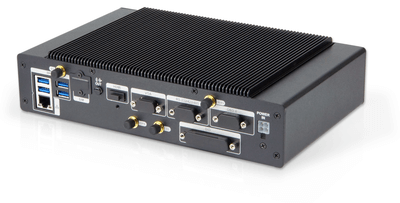

> 产品 > 智能交通系统 > IVS-110-AL| ● Intel® Apollo Lake processor |
|
● Dual SIM slot
|
|
● Optional 3G/Wi-Fi
|
|
● 16 x DI/DO
|
|
● 1 x HDMI (lockable), 1 x VGA
|
|
● Built-in GPS function
|
|
● E-Mark certification
|
|
● Built-in OBD-II/J1939
|
|
● IP4X protection
|
产品规格
| SBC Form Factor | *CPU: Intel® Atom™ x7-E3950 Processor (quad-core 2.0GHz, 12W TDP) |
| *Chipset: SoC | |
| *System Memory: 1 x 204-pin DDR3L SO-DIMM. 4GB pre-installed | |
| *Communication | |
| WLAN: PCIe Mini Wi-Fi 802.11 a/b/g/n/ac (optional) | |
| Bluetooth: BT 4.0/3.0+HS (combo with WLAN optional module) | |
| WWAN: PCIe Mini WCDMA/HSDPA/HSUPA (optional) | |
| GPS: On board GPS | |
| *Safety/EMC: CE/FCC/E-Mark/IP rating : IP 4X compliant | |
| *Supported OS: Microsoft® Windows 10 IoT Enterprise | |
| Cooling method / System Fan | Fanless |
| Drive Bays | *Hard Drive: 1 x 2.5' SATA 6Gb/s HDD/SSD drive bay |
| *mSATA / eMMC: | |
| 1 x mSATA (PCIe Mini Slot) | |
| 1 x eMMC 5.0 (reserved) | |
| I/O Ports | 4 x USB 3.0 |
| 1 x RJ-45 PCIe GbE by Intel® I211 | |
| 1 x RS-232/422/485 (BIOS configuration) | |
| 1 x 16-bit digital I/O (8-bit input / 8-bit output) | |
| 1 x DB9 OBD-II/J1939 | |
| 2 x Display - | |
| >> 1 x VGA (Up to 1920 x 1200 @ 60 Hz) | |
| >> 1 x HDMI (Up to 3840 x 2160 @ 30 Hz) | |
| 1 x Audio line out | |
| 2 x on board SIM card slot | |
| Operating Temperature | Operating: -30°C ~ +70°C with air flow |
| Storage: -40°C ~ 80°C | |
| Humidity | 10% ~ 95%, non-condensing |
| Construction | Extruded aluminum alloy |
| Mounting Wall mount / VESA 100 | |
| Dimensions | 261 x 170 x 60 (WxHxD) (mm) |
| Weight | 2.4 kg / 3.8 kg (Net/Gross) |
| Color | Black |
| Expansion Slots | 1 x Full/Half-size PCIe Mini slot (reserved for WWAN) |
| 1 x Full/Half-size PCIe Mini slot (reserved for mSATA or E-window) | |
| 1 x Half-size PCIe Mini slot (reserved for WLAN) |
| IVS-110-AL-E3/4G-R10 | Fanless embedded system with Intel® Atom™ x7-E3950 (12W) Processor with 4GB DDR3L pre-installed memory, on board GPS, HDMI, VGA, one GbE LAN, one 2.5" SATA HDD bay, two SIM slots, RoHs |
