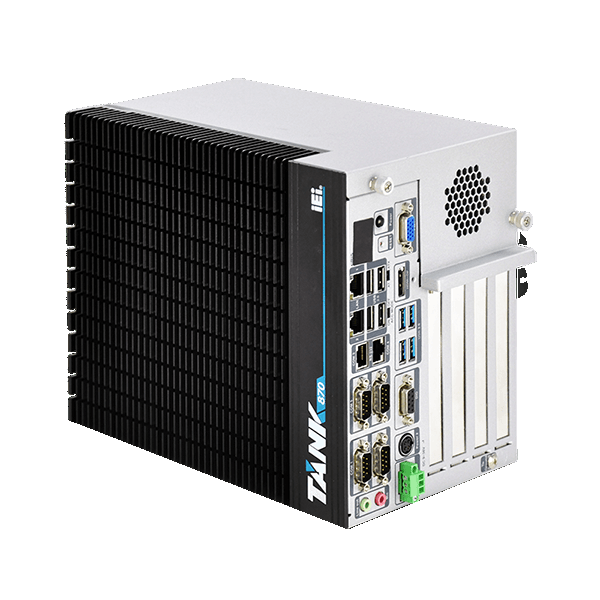

> 产品 > TANK系列强固型系统 > TANK-870-Q170| ● 6th/7th Gen Intel® Core™ processor platform with Intel® Q170 chipset and DDR4 memory |
|
● Triple independent display with high
resolution support
|
|
● Rich high-speed I/O interfaces on one side
for easy installation
|
|
● On-board internal power connector for
providing power to add-on cards
|
|
● Great flexibility for hardware expansion
|
产品规格
|
SBC Form Factor
|
●CPU: |
| Intel 7th Gen Core CPU & | |
| Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W) | |
| Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W) | |
| ●Chipset: Intel® Q170 | |
| ●System Memory: | |
| 2 x 260-pin DDR4 SO-DIMM, pre-installed one 4GB (system max: 32GB) | |
| ●Power: | |
| Input - DC Jack: 9 V~36 V DC, Terminal Block: 9 V~36 V DC | |
| Consumption: 19 V@3.68 A (Intel® Core™ i7-6700TE with 8 GB memory) | |
| Internal Connector: 5V@3A or 12V@3A | |
| ●Reliability: | |
| Operating Shock - Half-sine wave shock 5G; 11ms; 100 shocks per axis | |
| Operating Vibration - MIL-STD-810G 514.6 C-1 (with SSD) | |
| Safety/EMC - CE/FCC | |
| ●IPMI: 1 x iRIS-2400 (optional) | |
|
Cooling method / System Fan
|
Fanless |
|
Drive Bays
|
2 x 2.5＂ SATA 6Gb/s HDD/SSD bay (RAID 0/1 support) |
|
Buttons
|
1 x Power Button |
| 1 x Reset Button | |
| 1 x AT/ATX Switch | |
| 1 x ACC Mode | |
|
I/O Ports
|
●USB: 4 x USB 3.0, 4 x USB 2.0 |
| ●Ethernet: | |
| 2 x RJ-45 | |
| LAN1 (iRIS): Intel® I210 PCIe controller | |
| LAN2: Intel® I219LM PCIe controller | |
| ●COM Port: | |
| 4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection) | |
| 2 x RS-232/422/485 (DB-9) | |
| ●Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output | |
| ●Display: | |
| 1 x VGA (Up to 1920 x 1200@60Hz) | |
| 1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz) | |
| 1 x iDP (optional) | |
| ●Audio: 1 x Line-out, 1 x Mic-in | |
|
Operating Temperature
|
i7-6700TE -20°C ~ 45°C with air flow (SSD) |
| i5-6500TE -20°C ~ 60°C with air flow (SSD) | |
|
Humidity
|
10% ~ 95%, non-condensing |
|
Construction
|
Extruded aluminum alloys |
|
Dimensions
|
2-slot: 121.5 x 255.2 x 205 (WxDxH) (mm) |
| 4-slot: 154.8 x 255.2 x 205 (WxDxH) (mm) | |
|
Weight
|
2-slot: 4.2 kg/6.3 kg |
| 4-slot: 4.5 kg/6.5 kg | |
|
Color
|
Black C + Silver |
|
Expansion Slots
|
●PCIe Mini: |
| 1 x Half-size PCIe Mini slot | |
| 1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA) | |
| ●Backplane: | |
| 2-slot model: 1 x PCIe x16, 1 x PCI | |
| 2-slot model: 2 x PCIe x8 | |
| 4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni | |
| 4-slot model: 1 x PCIe x16, 3 x PCI, 1 x Full-size PCIe Mni |
| TANK-870-Q170i-i5/4G/2A-R11 | Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
| TANK-870-Q170i-i5/4G/2B-R11 | Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCI expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
| TANK-870-Q170i-i5/4G/4A-R11 | Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 2 x PCIe by 8 & 2 x PCI expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
| TANK-870-Q170i-i5/4G/4B-R11 | Ruggedized Fanless embedded system with Intel® Core i5-6500TE 2.3GHz, (up to 3.3 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 3 x PCI expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
| TANK-870-Q170i-i7/4G/2A-R11 | Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 2 x PCIe by 8 expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
| TANK-870-Q170i-i7/4G/2B-R11 | Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCI expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
| TANK-870-Q170i-i7/4G/4A-R11 | Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 2 x PCIe by 8 & 2 x PCI expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
| TANK-870-Q170i-i7/4G/4B-R11 | Ruggedized Fanless embedded system with Intel® Core i7-6700TE 2.4GHz, (up to 3.4 GHz, Quad Core, TDP 35W), 4GB DDR4 pre-installed memory, 1 x PCIe by 16 & 3 x PCI expansion, VGA/HDMI+DP/iDP, iRIS-2400 optional, 9~36V DC, RoHS |
