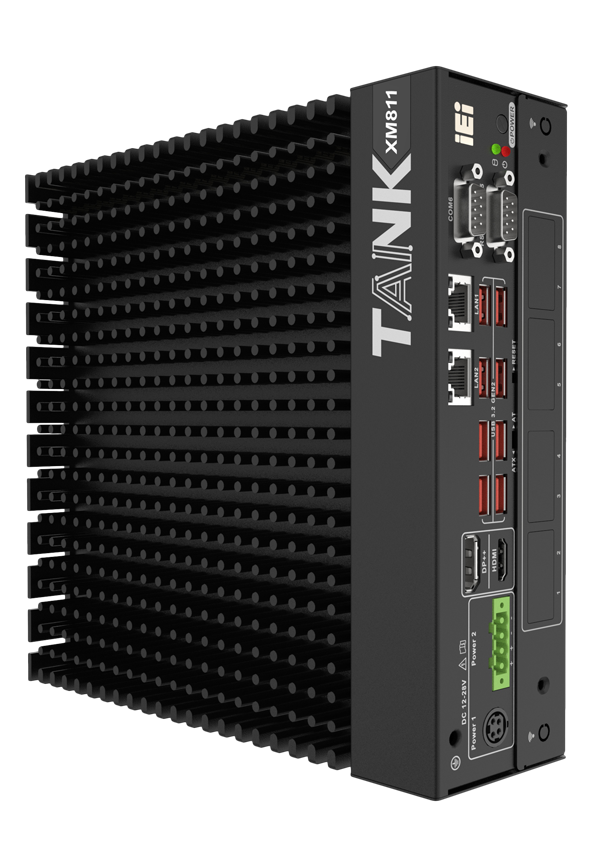

> 产品 > TANK系列强固型系统 > TANK-XM811
| » 支持的CPU: |
|
Intel® Core™
i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
|
|
Intel® Core™
i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
|
|
Intel® Core™
i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
|
|
» 2 x 2.5GbE
ports
|
|
» 多个USB和串行接口
|
|
» 多种内部扩展板，灵活选择
|
|
» 多种可选背板和机箱
|
|
» 符合 CE/FCC 标准
|
| SBC Form Factor | ● CPU: 12th/13th/14th Gen Intel® Core™ CPU 35/65W Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP) Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP) Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP) ● 芯片组: R680E ● 系统内存: 2 x SO-DIMM DDR4 3200 (预装8GB) (支持多达64GB) ● 电源: 直流插孔: 12 V~28 V直流 接线端子k: 12 V~28 V直流 功耗: 12V @ 8.8A (Intel® Core™ i9-12900TE带16GB 内存) |
| I/O Ports | ●
USB: 8 x USB 3.2 Gen 2 ● 网络: 2 x RJ-45: 2 x 2.5 GbE by Intel ® I226V (colay I226LM) ● 串口: 2 x RS-232/422/485 4 x RS-232 ● 数字l I/O: 12-bit Digital I/O (6-in/ 6-out) ● 显示: 1 x HDMI™ 1 x DP++ ● TPM: 支持 Intel PTT ● 看门狗定时器： 可编程 1 ~ 255 秒/分钟 |
| Expansion Slots | ●
M.2: 1 x 2280 M-key (PCle x4) 1 x 2230 A-key (USB+PCIe x1, supports vPRO) ● 背板: 选配 |
| Cooling method / System Fan | 无风扇 4 针外部系统风扇连接器 |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Buttons | 1
x 电源开关 1 x 复位开关 1 x AT/ATX开关 |
| Indicators | 1
x 电源灯 (绿色) 1 x 硬盘灯 (黄色) |
| Construction | 铝合金 |
| Color | 黑色 |
| Dimensions | 230.6 x 256.04 x 76.2 |
| Weight | 3.33/3.7 kg |
| 工作温度 | -20°C
~ 60°C 有气流 (CPU TDP35W & SSD) -20°C ~ 50°C 有气流 (CPU TDP65W & SSD) |
| 相对湿度 | 10% ~ 95% 无冷凝 |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (SSD) |
| 安规&电磁 | 符合CE/FCC认证 |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
| TANK-XM811-i9AD-R11 | Ruggedized Fanless Embedded System With Intel® 12th i9 CPU, 16GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
| TANK-XM811-i7AC-R11 | Ruggedized Fanless Embedded System With Intel® 12th i7 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
| TANK-XM811-i5AC-R11 | Ruggedized Fanless Embedded System With Intel® 12th i5 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
