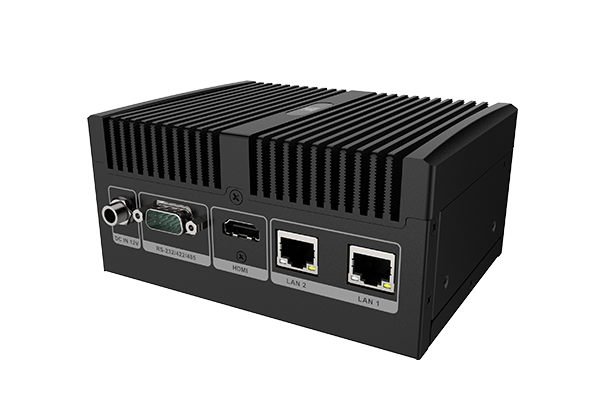

| » 超紧凑型工业迷你电脑无风扇系统 |
|
» Intel®
Celeron® J6412 2.0 GHz (up to 2.6 GHz, 四核, TDP 10W)
|
|
» 板载LPDDR4x 8G
(****支持到16GB)
|
|
» M.2扩展
|
|
» 4个USB 3.2
Gen2 (10Gb/s) 端口
|
|
» 2个2.5GbE网络
|
| SBC Form Factor | ● CPU: Intel® Celeron® J6412 2GHz (up to 2.6 GHz, 四核, TDP 10W) ● 芯片组: SoC ● 系统内存: 板载LPDDR4x 8GB (****支持到16G) ● 电源: 直流插孔: 12V 直流 功耗: +12V@3.6A (Intel® Celeron® J6412 带8GB内存) |
| I/O Ports | ●
USB: 2 x USB 3.2 Gen2 2 x USB 2.0 (可选)(USB扩展只适用于未安装2.5寸硬盘的情况) ● 网络: 2 x RJ-45 2.5 GbE by I225V controller ● 显示: 1 x HDMI™ 1.4b (up to 4k@ 30Hz) ● 串口: 1 x RS-232/422/485 (DB9) 1 x RS-232 (可选) ● TPM: 支持Intel PTT ● 无线/蓝牙: 1 x 802.11a/b/g/n/ac (M.2 A Key可选) ● 看门狗定时器: 可编程1 ~ 255 秒/分钟 |
| Expansion Slots | ●
M.2: 1 x 2230 A-key (PCIe Gen3 x1/ USB2.0) 1 x 2280 M-key (PCIe Gen3 x2) |
| Cooling method / System Fan | 无风扇 |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Buttons | 1
x 电源开关(带灯) 1 x 复位开关 1 x AT/ATX开关 1 x 清除 CMOS 开关 |
| Indicators | 1
x 电源灯 1 x 硬盘灯 |
| Construction | 挤压铝合金 |
| Color | 黑色 |
| Dimensions | 137 x 102.8 x 65.8 |
| Weight | 0.97KG /1.74KG |
| 工作温度 | -10°C ~ 50°C带0.7M/S 风流 (M.2) |
| 相对湿度 | 10% ~ 95% 无冷凝 |
| Operating Vibration | 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| 安规&电磁 | CE / FCC / UKCA 认证 |
| OS Support | Microsoft® Windows® 10/11, Linux |
| uIBX-260-EHL-W10IoT21-E-R10 | OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for uIBX-260-EHL Series, with DVD-ROM, RoHS |
| uIBX-260-EHL-JC-R10 | Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x RS-232/422/485, 4 x USB 3.2, 1 x HDMI™, 2 x 2.5GbE Lan, 12V DC, RoHS |
