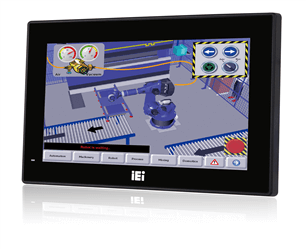

> 产品 > 轻薄平板电脑（J1900） > AFL3-W10A-BT| ● W10” light industrial interactive panel PC |
|
● 9 V ~ 30 V wide range DC input with
lockable DC jack
|
|
● Selectable AT/ATX power mode
|
|
● Built-in speakers
|
|
● One mSATA slot
|
|
● IP64 compliant front panel
|
|
● IEI One Key Recovery solution alllows you
to create rapid OS backup and recovery (suggested with over 4GB storage
capacity)
|
产品规格
|
Cooling method / System Fan
|
Fanless |
|
CPU
|
Intel® Celeron® J1900 (quad core, 2.0 GHz) |
|
Memory Max.
|
8GB |
|
Storage
|
mSATA |
|
On-board Memory
|
One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed |
|
Wireless
|
IEEE 802.11a/b/g/n/ac |
|
Ethernet
|
2 x PCIe GbE by RTL8111E controller |
|
Audio
|
AMP 2W + 2W (internal speaker) |
|
Audio Codec
|
ALC892 |
|
I/O Ports and Switches
|
1 x RS-232 COM port (RJ-45 connector) |
| 1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V) | |
| 2 x USB 3.0 | |
| 2 x USB 2.0 | |
| 2 x RJ-45 for GbE LAN | |
| 1 x Power switch | |
| 1 x Audio port (line-out) | |
| 1 x Reset button | |
| 1 x AT/ATX switch | |
| 1 x 9-30V DC lockable power jack | |
|
Power consumption
|
12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory) |
|
Power Requirement
|
9 V ~ 30 V |
|
Operating Temperature
|
-10°C~50°C |
|
Safety & EMC
|
CE / FCC |
|
Humidity
|
10% to 95% (non-condensing) |
|
Storage Temperature
|
-20°C~60°C |
|
IP Level
|
IP 64 compliant front panel |
|
Color
|
Black C |
|
Mounting
|
Panel, Wall, Stand, Arm |
| VESA 75mm x 75mm | |
|
Dimensions (LxWxH) (mm)
|
262 x 181 x 42 |
|
Net Weight
|
1.06 kgs |
|
Construction Front Panel
|
PC + ABS Plastic |
|
Cutout Dimensions
|
236 x 150 (W x H) (mm) |
|
Storage
|
mSATA |
|
Dimensions
|
262 x 181 x 42 (LxWxH) (mm) |
|
Weight
|
1.06/2.58 (Net/Gross, kgs) |
|
Color
|
Black C |
|
Size
|
10.1” |
|
Resolution
|
1280 x 800 (16:10) |
|
Brightness (cd/m2)
|
350 |
|
Contrast Ratio
|
800:01:00 |
|
LCD Color
|
16.2M |
|
Pixel Pitch (mm)
|
0.1695 (H)×0.1695 (V) |
|
Viewing Angle (H-V)
|
170º / 170º |
|
Backlight MTBF
|
15000 hrs |
|
Touch Screen
|
Projected capacitive type |
|
Touch Controller
|
EETI EXC7200 |
|
Audio
|
AMP 2W + 2W (internal speaker) |
|
Camera
|
2-megapixel with low light function |
|
OSD Function
|
Software OSD |
|
System Cooling
|
Fanless |
|
Microphone
|
digital microphone |
| AFL3-W10A-BT-J1/PC/2G-R13 | 10.1” 350cd/m² 1280x800 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11 a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R13 |
