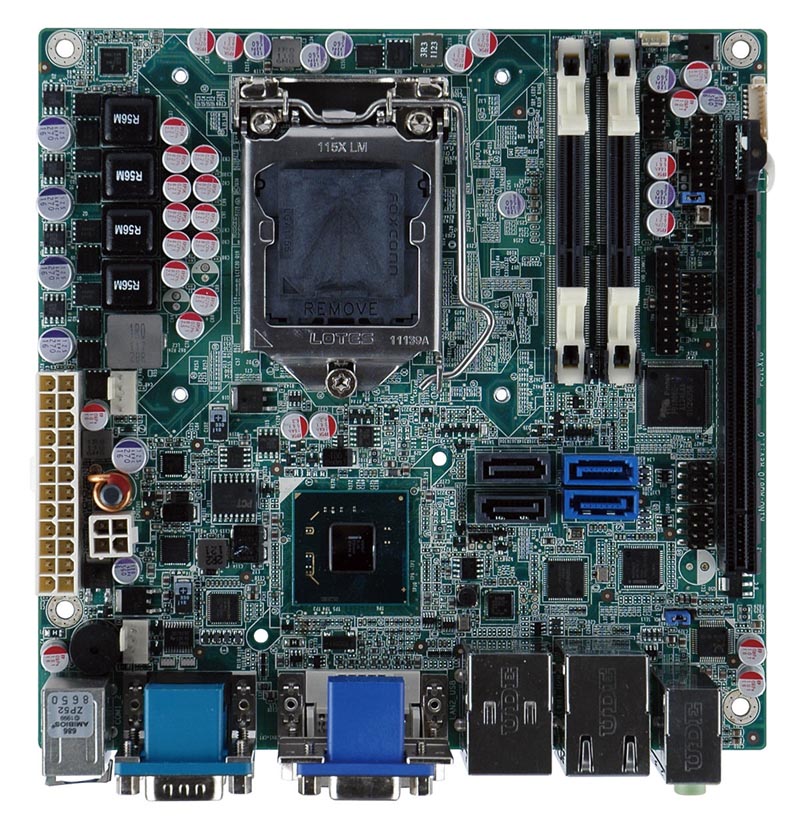

KINO-AQ670
Mini-ITX SBC 支持 LGA1155 Intel® Core™ i7 /i5/ i3/Pentium® 和 Celeron® CPU, DDR3, VGA/ DVI-D, 2 x COM, Intel GbE, SATA 6Gb/s, USB3.0, HD 音频和 RoHS


产品特征 产品特征
  1. LGA1155 支持新一代 Intel® Core™ i7/i5/i3/Pentium® 和 Celeron® 处理器
2. 双通道 DDR3 1333/1066MHz 支持可达 16GB
3. VGA 和 DVI-D 支持独立双显
4. 支持高速 USB 5Gb/s 和 SATA 6Gb/s
5. Intel GbE LAN 支持 Intel® AMT 7.0
6. 威强一键恢复 (One Key Recovery) 解决方案可快速创建 OS 备份并完成恢复


产品规格 产品规格

CPULGA1155 Socket 支持 Intel® Core™ i7/i5/i3/Pentium® 和d Celeron® 处理器
芯片组Intel® Q67
BIOSUEFI BIOS
内存2 个 204-pin 1066/1333MHz 双通道 DDR3 SDRAM SO-DIMM (系统****支持 16GB)
以太网Intel® 82583V PCIe 控制器
Intel® 82579 PHY 支持 Intel® AMT 7.0
I/O接口2 x RS-232
1 x TPM pin header
6 x USB 2.0
2 x USB 3.0
2 x SATA 3Gb/s
2 x SATA 6Gb/s 支持 Raid 0,1,5,10
1 x PS/2 KB/MS
Super I/OFintek F81866
音频Realtek ALC662 HD Audio Codec
显示接口VGA 集成 Intel® Q67
DVI-D 集成 Intel® Q67
扩展槽1 x PCIe x16 插槽
看门狗定时器软件可编程支持 1~255 sec. 系统恢复
电源ATX 电源模式
风扇1 x 4-pin CPU 风扇接口
1 x 4-pin 系统风扇接口
功耗5V@3.84A, 12V@0.16A, Vcore_12V@5.31A, 3.3V@1.81A, 5VSB@0.5A (2.5GHz Intel® Core™ i5-2400S with 2GB*2 DDR3 1333MHz)
图形支持 DX10.1 和 OpenGL3.0, full MPEG2. VC1. AVC 解码
GPIO可编程 8-bit GPIO
工作温度-10°C ~ 60°C
相对湿度5% ~95%, 无冷凝
尺寸170mm x 170mm
重量毛重:1100g, 净重: 700g

订购信息 订购信息

产品名称描述
KINO-AQ670-R10 Mini-ITX SBC supports LGA1155 Intel® Core™ i7/i5/i3 CPU, DDR3, VGA/DVI-D, 2COM, Intel® GbE, SATA 6Gb/s, USB 3.0, HD Audio and RoHS
19800-003100-200-RS Dual ports USB cable with bracket
32102-000100-200-RS SATA power cable
SACF-KIT01-R10 SATA to CF converter board
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA-1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA-1155, dual core 2.7GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2120T Intel® Core™ i3-2120T processor, LGA-1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G630T Intel® Pentium® G630T processor, LGA-1155, dual core 2.3GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron® G440 processor, LGA-1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W
CF-1156E-RS-R11 High-performance LGA1155/LGA1156 cooler kit, 95W

订购信息 包装清单

1 * KINO-AQ670 single board computer1 * I/O shielding (P/N:45014-0008C0-00-RS)
4 * SATA cable (P/N:32801-000703-200-RS)1 * Mini Jumper Pack
1 * Utility CD1 * QIG
1 * One Key Recovery CD
