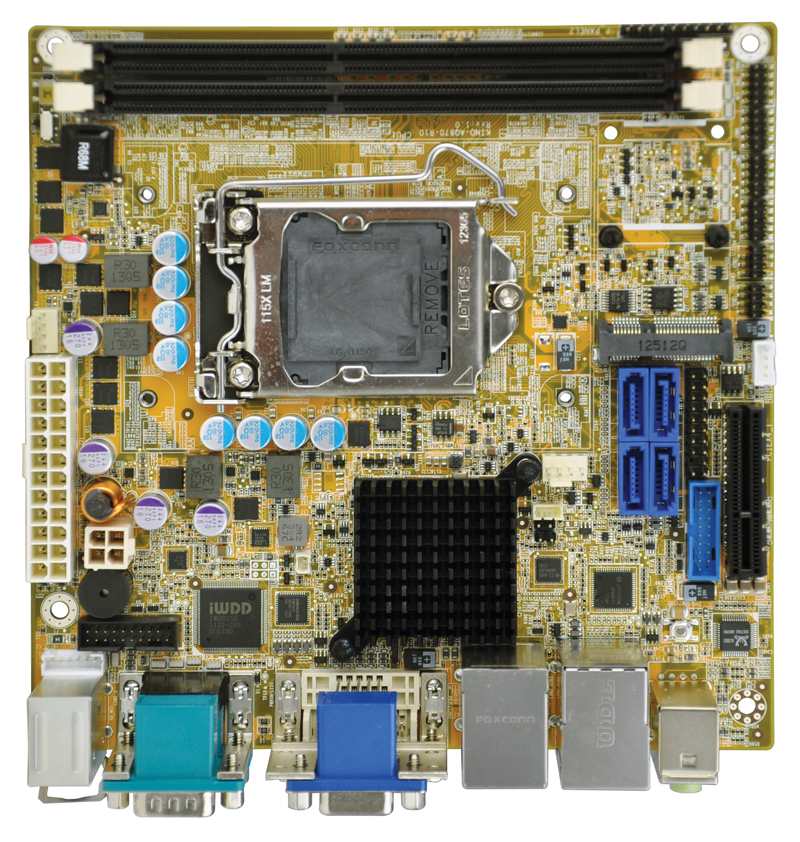

KINO-AQ870
LGA1150 socket supports 4th Gen Intel® Core™ i7/i5/i3 Processor, DVI-D /VGA / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS


产品特征 产品特征
  1. LGA1150 socket supports 4th Gen Intel® Core™ i7/i5/i3 Processor
2. DDR3 1066/1333/1600 MHz dual channel SDRAM
3. 3D micro-architecture enhancements supports for DX11.1, OCL 1.2 and OGL3.2
4. Rich media acceleration for hardware decode and encode acceleration
5. Intel® GbE Lan with Intel® AMT 9.0 supported
6. High speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA supported
7. IEI Jumper-less function

产品规格 产品规格

CPULGA1150 socket supports 4th Gen Intel® Core™ i7/i5/i3 Processor
PCHIntel® Q87
BIOSUEFI BIOS
System MemoryTwo 240-pin 1066/1333/1600 MHz dual-channel DDR3 SDRAM Unbuffered DIMM supported (system max. 16GB)
EthernetIntel® I211 PCIe controller/ Intel® I217LM with Intel® AMT supported
I/O Interface5 x RS-232/ 4 x USB 3.0 (2 x Rear I/O, 2 x pin header)/ 1 x RS-422/485/ 6 x USB 2.0 (2 x Rear I/O, 4 x pin header)/ 1 x 6-pin wafer for PS/2 KB/MS/ 1 x 6-pin connector for PS2 KB/MS (Rear I/O)/ 4 x SATA 6Gb/s with raid support
Digital I/O8-bit digital I/O (4-bit input, 4-bit output)
Super I/OFintek F81866
TPM2 x 10-pin pinheder
SMBus1 x 4-pin wafer
AudioRealtek ALC662 HD Audio codec
Display InterfacesDisplayPort integrated in the CPU (pin header for changing to HDMI, LVDS, VGA)
LAN LAN LED: 2 x 2 PIN for LAN1 LED, LAN2 LED
Expansion1 x PCIex4/ 1 x Mini PCIe card slot (colay mSATA)
Watchdog TimerSoftware programmable support 1~255 sec. system reset
Power SupplyATX Power Supply
Power Consumption3.3V@1.11A, 5V@3.01A, 12V@0.12A, Vcore@6.32A, 5VSB@0.15A (Intel® 2.60GHz CPU with two 1600MHz 2GB DDR3 memory)
GraphicSupport for DX11.1 and OpenGL3.2/ Full MPEG2, VC1, AVC Decode
DVI OutputDVI-D Integrated in the CPU
2nd VGA OutputVGA Integrated in the Intel® Q87
Temperature-20°C ~ 60°C
Humidity5% ~ 95%, non-condensing
Dimensions170mm x 170mm
WeightGW: 900g/NW: 450g
Front Panel1 x Front Panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
Fan Connector1 x 4-pin CPU fan connector/ 1 x 4-pin System fan connector

订购信息 订购信息

产品名称描述
KINO-AQ870-R10Mini-ITX SBC supports Intel® 22nm 4th generation mobile Core™ i7/i5/ i3 and Celeron® on-board processors, HDMI / VGA / LVDS / DP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
32000-070301-RS Dual USB cable
32200-000049-RS RS232 cable, 200mm
32200-074800-RS RS-422/485 cable, 200mm
CF-1150SA-RS Special cooler kit for LGA1150, High-performance compatible, 95W
CF-1150SB-RS Special cooler kit for LGA1150, High-performance compatible, 65W
CF-1150SC-RS Special cooler kit for LGA1150, 1U chassis compatible, 65W
CF-1150SD-RS Special cooler kit for LGA1150, 1U chassis compatible, 35W
DP-LVDS-R10DisplayPort to 24 bit dual channel LVDS converter board (For iEi IDP connector)
DP-HDMI-R10 DisplayPort to HDMI converter board (For iEi IDP connector)
DP-DVI-R10 DisplayPort to DVI-D converter board (For iEi IDP connector)
DP-VGA-R10 DisplayPort to VGA converter board (For iEi IDP connector)
TPM-IN01-R1120-Pin Infineon TPM module, software management tool, firmware V3.17

订购信息 包装清单

1 * KINO-AQ870 Motherboard1 * I/O shielding (P/N: 45014-0008C0-00-RS)
4 * SATA cable (P/N: 32801-000703-200-RS)1 * Mini Jumper Pack (P=2.0)
1 * Utility CD 1 * QIG
