PCIE-H610

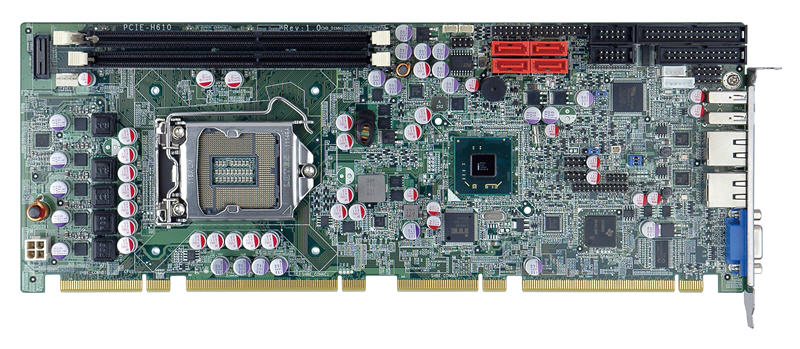

Full-size PICMG 1.3 CPU card Supports 32nm LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® H61, DDR3, VGA, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio


产品特征 产品特征
  1. Full-size PICMG 1.3 graphics grade solution
2. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported
3. Dual-channel 1333/1066MHz DDR3/DDR3L SDRAM supported up to 16GB
4. Intel® HD Graphics technology integrates high-performance graphics and media processing
5. TPM V1.2 hardware security function supported by TPM module
6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

产品规格 产品规格

CPU LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor
PCH Intel® H61
BIOS UEFI BIOS
System Memory Two 240-pin 1333/1066MHz dual-channel DDR3 & DDR3L (1.35V) DIMMs supported (system max. 16GB)
Ethernet Dual Realtek RTL8111E PCIe GbE controllers (LAN1 with ASF 2.0 supported)
I/O Interface 2 x RS-232
1 x RS-422/485
4 x SATA 3GB/s
1 x LPT
1 x FDD
1 x 6-pin wafer for KB/MS
6 x USB 2.0 (2 by Rear IO, 4 by on-board pin header)
4 x USB 2.0 (4 by backplane pin header via golden finger)
Digital I/O 8-bit programble I/O
Super I/O Fintek F81866
Infrared 1 x 5-pin header
TPM 2 x 10-pin headers
SMBus 1 x 4-pin wafer
Audio Supports by IEI AC-KIT-888HD audio kit
Display Interfaces 1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB module) (optional)
Expansion PCIe signal and PCI signal via golden finger
Watchdog Timer Software programmable supports 1~255 sec. system reset
Power Supply 5V/12V, AT/ATX support
Power Consumption 5V@4.41A, 12V@0.21A, Vcore_12V@7.72A, 3.3V@1.71A, 5VSB@0.16A
(3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)
Graphic Intel® HD Graphics Gen 6 supports for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode
Temperature -10°C ~ 60°C
Humidity 5% ~95%, non-condensing
Dimensions 338 mm x 126 mm
Weight GW: 1200g/NW: 420g
Front Panel 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
I2C 1 x 4-pin wafer
PCIe-PCI Bridge TI XIO3130
Fan Connector 1 x 4-pin smart Fan Connector

订购信息 订购信息

产品名称 描述
PCIE-H610-R10 Full-size PICMG 1.3 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel® H61, DDR3, VGA, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS
PCIE-H610-DVI-R10 Full-size PICMG 1.3 CPU card supports 32nm LGA1155 Intel® Core™ i7/i5/i3 CPU with Intel® H61, DDR3, VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS
32205-003800-100-RS RS-422/485 cable, 200mm
19800-000075-RS KB/MS cable with bracket
SAIDE-KIT01-R10 SATA to IDE/CF converter board
32102-000100-200-RS SATA power cable
32229-000100-100-RS FDD flat cabl
32200-015100-RS LPT cable
AC-KIT-888HD-R10 7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2100T Intel® Core™ i3-2100T processor, LGA1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G620T Intel® Pentium® G620T processor, LGA1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron® G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS-R10 High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156B-RS-R10 High performance LGA1155/LGA1156 cooler kit, 95W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W
TPM-IN01-R11 20-pin Infi neon TPM module, software management tool, firmware V3.1

订购信息 包装清单

1 * PCIE-H610 single board computer 1 * Dual RS-232 cable (P/N:19800-000051-RS)
1 * USB cable (P/N:19800-003100-200-RS) 4 * SATA cable (P/N:32801-000703-200-RS)
1 * Mini jumper pack 1 * Utility CD
1 * One Key Recovery CD 1 * QIG (Quick Installation Guide)
