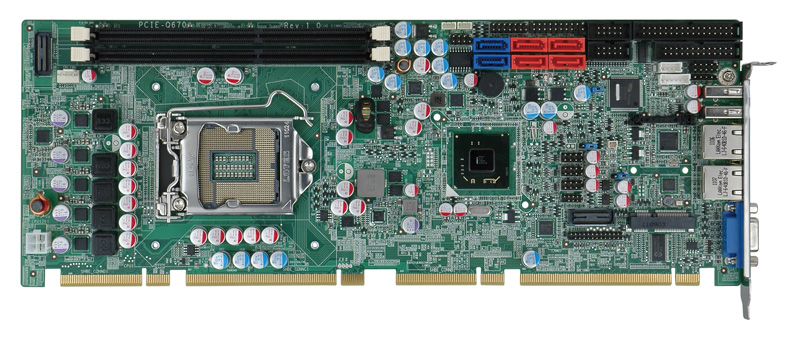

PCIE-Q670
Full-size PICMG 1.3 CPU card Supports LGA1155 Intel® Xeon® E3 and Intel® Core™ i3/Pentium®/Celeron® CPU with Intel® C206, DDR3, VGA/DVI-D, Dual Intel® PCIe GbE, SATA 6Gb/s, PCIe Mini, HD Audio and RoHS


产品特征 产品特征
  1. PICMG 1.3 full-size graphics grade solution
2. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors supported
3. Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
4. Supports dual independent display by VGA and DVI-D (DVI model)
5. Supports PCIe Mini expansion
6. Intel® PCIe GbE with Intel® AMT 7.0 support
7. Supports SATA 6Gb/s
8. Supports RAID function via SATA 6Gb/s and SATA 3Gb/s
9. TPM V1.2 hardware security provided by the TPM module
10. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

产品规格 产品规格

CPU LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor
PCH Intel® Q67
BIOS UEFI BIOS
System Memory Two 240-pin 1066/1333MHz dual-channel unbuffered DDR3 SDRAM DIMM supported (system max. 16GB)
Ethernet LAN1: Intel® 82583V PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 7.0 support
I/O Interface 2 x RS-232
1 x RS-422/485
1 x LPT 1 x FDD
8 x USB 2.0 (2 by rear IO, 6 by on-board pin header)
1 x 6-pin wafer for KB/MS
4 x SATA 3Gb/s (RAID 0/1/5/10 supported)
2 x SATA 6Gb/s (RAID 0/1/5/10 supported)
Digital I/O 8-bit digital I/O (4-bit input, 4-bit output)
Super I/O Fintek F81866
Infrared 1 x 5-pin header
TPM 1 x 20-pin header
SMBus 1 x 4-pin wafer
Audio Supported by IEI AC-KIT-888HD audio kit
Display Interfaces VGA integrated in Intel® Q67 (rear I/O)
DVI-D integrated in Intel® Q67 (via header to IO-KIT-001-R20 DVI-D/USB Module) (optional)
LAN LAN1: Intel® 82583V PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 7.0 support
Expansion PCIe signal and PCI signal via golden fi nger
1 x PCIe Mini slot (with USB 1.1/2.0 signal)
Watchdog Timer software programmable support 1~255 sec. system reset
Power Supply AT/ATX power supply supported
Fan 1 x 4-pin smart fan connector
Power Consumption TBD
Memory Clock Two 240-pin 1066/1333MHz dual-channel unbuffered DDR3 SDRAM DIMM supported
Graphic Support for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode
Temperature -10°C ~ 60°C
Humidity 5% ~95%, non-condensing
Dimensions 338 mm x 126 mm
Weight GW: 1200g / NW: 420g
Front Panel 1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)

订购信息 订购信息

产品名称 描述
PCIE-Q670-R10 Full-size PICMG 1.3 CPU Card Supports LGA1155 32nm Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q67, DDR3, VGA, Dual Intel® PCIe GbE, SATA 6Gb/s, PCIe Mini, HD Audio and RoHS
PCIE-Q670-DVI-R10 Full-size PICMG 1.3 CPU Card Supports LGA1155 32nm Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q67, DDR3, DVI-D, Dual Intel® PCIe GbE, SATA 6Gb/s, PCIe Mini, HD Audio and RoHS
32205-003800-100-RS RS-422/485 cable, 200mm
19800-000075-RS KB/MS cable with bracket
SAIDE-KIT01-R10 SATA to IDE/CF converter board
32102-000100-200-RS SATA power cable
32229-000100-100-RS FDD flat cable
32200-015100-RS LPT cable
AC-KIT-888HD-R10 7.1 channel HD Audio kit with Realtek ALC888 supports dual audio streams
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA1155, Quad core 2.3GHz, 6M Cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA1155, Dual core 2.7GHz, 3M Cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2100T Intel® Core™ i3-2100T processor, LGA1155, Dual core 2.5GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G620T Intel® Pentium G620T processor, LGA1155, Dual core 2.2GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron G440 processor, LGA1155, Single core 1.6GHz, 1M Cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS High-performance LGA1155/LGA1156 cooler kit,1U chassis compatible, 73W
CF-1156B-RS High-performance LGA1155/LGA1156 cooler kit, 95W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W

订购信息 包装清单

1 * PCIE-Q670 Single Board Computer 1 * Dual RS-232 Cable (P/N: 19800-000051-RS) (P/N:19800-000051-RS)
4 * SATA Cable (P/N: 32801-000703-200-RS) (P/N:32801-000703-200-RS) 1 * USB Cable (P/N: 19800-003100-200-RS) (P/N:19800-003100-200-RS)
1 * One Key Recovery CD 1 * Mini Jumper Pack
1 * Utility CD 1 * QIG (Quick Installation Guide)
