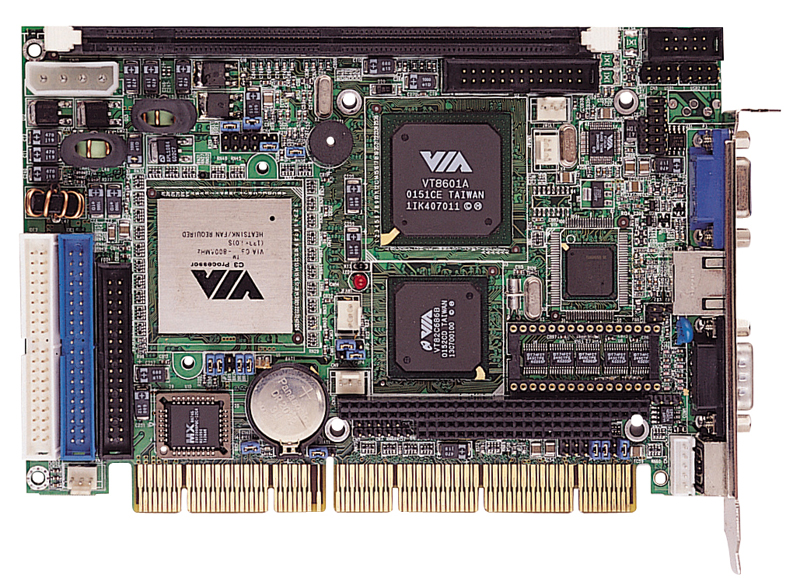

PCISA-C800EVR

Enlarge image
PCISA VIA® C3 1.0GHz CPU Card with VGA, LAN & Audio

Datasheet(PDF)    Download (Deriver/BIOS/Manual/QIG)

产品特征 产品特征
  1. Embedded VIA® C3 1.0GHz CPU
2. VIA 8601 integrated graphic engine
3. PC133 SDRAM memory support upto 512MB
4. LAN, USB, Audio integrated

产品规格 产品规格

CPU VIA C3 1Ghz
System Chipset VIA VT8601T + VT82C686B
BIOS AMI BIOS
System Memory 1 x 168-pin PC100/133 MHz up to 512MB
Ethernet 10/100Mbps RTL8100B Ethernet chipset
I/O Interface 4 x USB 1.1
1 x LPT
1 x FDD
2 x IDE
1 x CFI
1 x DOC
1x RS232
1x RS232/ 422/ 485
1 x PS/2 keyboard/mouse
Super I/O VT82C686B
Digital I/O 8 bit digital I/O, 4 input / 4 output
Infrared N/A
Audio 2.1 channer AC97 codec by VIA® VT
SSD CF Type II
Display Interfaces VGA integrated in VIA VT8601T
Expansion 1 x PC/104 (ISA Bus)
Watchdog Timer Software programmable supports 1~255 sec. system
Power Supply AT/ATX support
Power Consumption 5VSB@0.18A, 5V@3.9A, 12V@0.2A, (VIA C3 1Ghz, PC133/512MB RAM)
Temperature operation: 0 ~ 60º (32 ~ 140ºF)
Humidity operation: 5% ~ 95% non-condensing
Dimensions 185mm x 122 mm
Weight GW: 1.0Kg

订购信息 订购信息

产品名称 描述
PCISA-C800EVR-RS-1G-R20 Half-Size SBC VIA C3 1.0GHz SBC with VGA, Audio, LAN

订购信息 包装清单

1 * PCISA-C800EVR-RS-1G-R20 single board computer 1 * Mini jumper pack
1 * ATA66/100 HDD cable (P/N:32200-000052-RS) 1 * RS232/LPT cable (P/N:19800-000050-RS)
1 * RS232/422/ 485 cable (P/N:19800-000017-RS) 1 * Keyboard/ PS2 mouse Y cable (P/N:32000-000138-RS)
1 * FDD cable (P/N:32000-000017-RS) 1 * Audio cable (P/N:19800-000020-RS)
1 * Utility CD 1 * QIG
