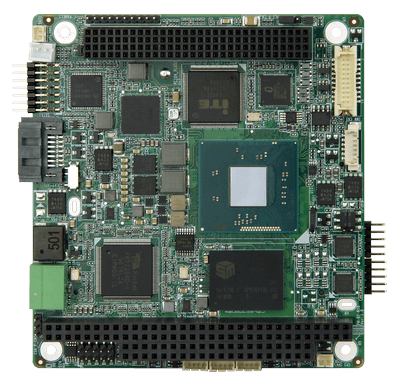

> 产品 > PC/104 模块 > PM-BT| ● PC/104 规格 SBC 支持 22nm Intel® Atom™ 板载 SoC |
|
● 支持 PC/104-Plus (ISA 和 PCI signal) 功能
|
|
● 5V DC 输入解决方案
|
|
● 支持 2 COM, PCIe Mini, USB 和可选板载 SSD
|
|
● VGA 和 LVDS 双显示
|
|
● -40°C ~ 85°C 的宽范围温度支持 (适用于 E38xx 系列
CPU)
|
|
● IEI 一键恢复解决方案可以创建快速操作系统备份和恢复
|
产品规格
|
Display Output
|
Dual independent display |
| 1 x VGA (up to 2560x1600@60 Hz) | |
| 1 x 18/24-bit single-channel LVDS (2x10 pin) | |
|
CPU
|
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) |
| Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W) | |
| Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W) | |
| Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W) | |
|
Memory Max.
|
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB |
| (J1900, E3845,E3825) or 4 GB (N2807) | |
|
Ethernet
|
1 x Intel® I210 |
|
Input
|
5V DC input |
|
Operating Temperature
|
-20°C ~ 60°C (for J1900/N2930/N2807) |
| -40°C ~ 85°C (for E38xx) | |
|
Humidity
|
5% ~ 95%, non-condensing |
|
Storage Temperature
|
-40°C ~ 85°C |
|
Storage
|
1 x SATA 3Gb/s with 5V SATA power connector |
|
Dimensions
|
96 mm x 90 mm |
|
Weight
|
NW 120g |
|
Expansion Slots
|
1 x PC/104-Plus (ISA+PCI) |
|
Watchdog Timer
|
Software programmable, supports 1~255 sec. system reset |
|
BIOS
|
AMI UEFI BIOS |
|
Super IO
|
Fintek F81866 |
|
PCIe Mini
|
1 x Full-size PCIe Mini slot (supports mSATA) |
|
I/O Interface
|
1 x Digital I/O (1 x 8-bit digital I/O, 2x5 pin, P=2.0) |
| 1 x Expansion / Front panel (1 x 10-pin header, P=2.0, power LED, HDD LED, power button and reset button) | |
| 3 x Internal USB 2.0 (1x4 pin, P=1.25) | |
| 2 x Internal RS-232/422/485 (2x5, P=2.0) |
订购信息
| PM-BT-J19001-R10 | PC/104-Plus Single Board Computer with Intel® Atom™ J1900 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS |
| PM-BT-N28071-R10 | PC/104-Plus Single Board Computer with Intel® Atom™ N2807 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS |
