PM-LX2

Enlarge image

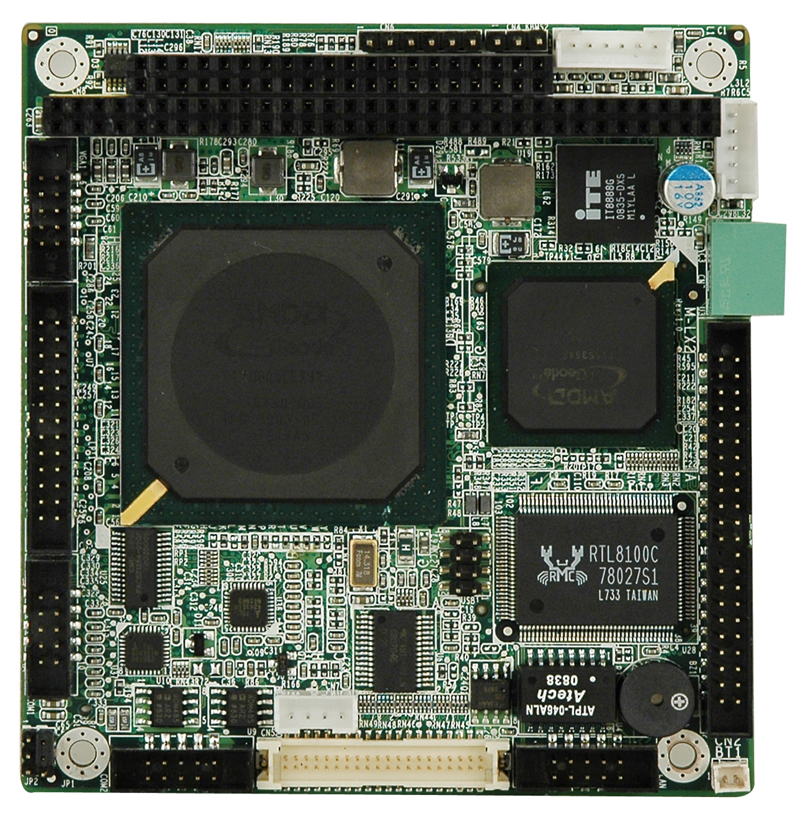

PC/104 AMD LX800 CPU Board with on board TTL, VGA and USB2.0

Datasheet (PDF)    Download (Deriver/BIOS/Manual/QIG)

产品规格 产品规格

CPU AMD® Geode™ LX800 500 MHz processor
System Chipset AMD® Geode™ LX800 + CS5536
BIOS Award BIOS
System Memory One 200-pin 400 MHz DDR SDRAM SO-DIMM supported (system max. 1 GB)
Ethernet One Realtek RTL8100C 10/100Mbps ethernet chipset
Super I/O PM-LX2-800-R10: SMSC SCH3114-NU
PM-LX2-800W-R10: SMSC SCH3114I-NU (Wide Temperature)
Digital I/O 2 x USB 2.0
2 x RS-232
1 x RS-422/485
1 x PS/2 for KB/MS
1 x LPT
1 x Silm FDD
1 x CF Type II
1 x IDE
Display Interfaces CRT integrated in AMD® LX800
24-bit TTL integrated in AMD® LX800
Expansion 1 x PC/104 support by ITE IT8888G
Watchdog Timer Softwafe programmable support 1~255 sec. system reset
Power Supply 5 V only, AT support
Power Consumption 5 V @ 1.09 A (AMD® Geode™ LX800 with 512 MB DDR 400)
Temperature Operatoin:
PM-LX2-800-R10: 0°C~60°C
PM-LX2-800W-R10: -40°C~70°C
Humidity Operation: 5% ~95% non-condensing
Dimensions 95 mm x 95 mm
Weight GW: 500g / NW 110g

订购信息 订购信息

产品名称 描述
PM-LX2-800-R10 PC/104 SBC with AMD® LX800 500 MHz, VGA/TTL, LAN, USB2,0 and CFII
PM-LX2-800W-R10 PC/104 SBC with AMD® LX800 500 MHz, VGA/TTL, LAN, USB2,0 and CFII, wide temperature -40~70°C
32400-001100-RS FDD cable
32200-015100-RS LPT cable
32200-074800-RS RS-422/485 cable

订购信息 包装清单

1 * PM-LX2 single board computer 1 * PS/2 KB/MS cable (P/N:32000-023800-RS)
1 * Dual USB cable (P/N:32000-070301-RS) 1 * LAN cable (P/N:32000-055702-RS)
1 * ATA33 flat cable (P/N:32200-000009-RS) 1 * Power cable (P/N:32100-130300-RS)
1 * VGA cable (P/N:32000-033804-RS) 2 * RS-232 cable (P/N:32200-000049-RS)
1 * Mini jumper pack 1 * QIG
1 * Utility CD
