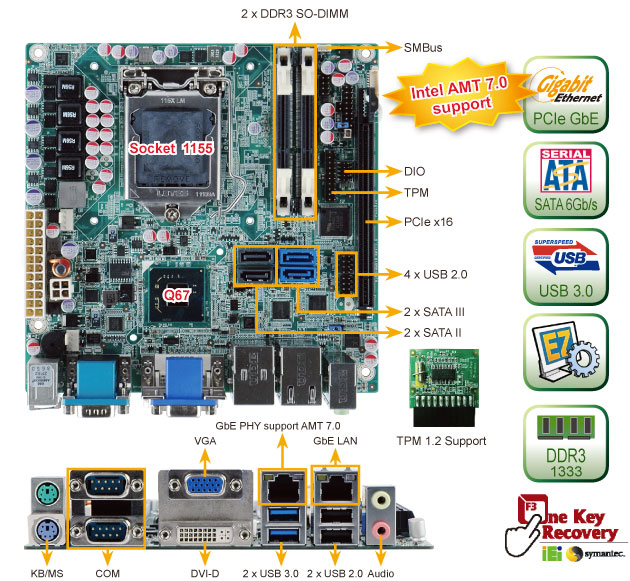

威强发布新款MINI-ITX主板 KINO-AQ670
[ Date: 2012-2-23 16:30:51]


    特征

LGA1155 支持新一代 Intel® Core™ i7/i5/i3/Pentium® 和 Celeron® 处理器
双通道 DDR3 1333/1066MHz 支持可达 16GB
VGA 和 DVI-D 支持独立双显
支持高速 USB 5Gb/s 和 SATA 6Gb/s
Intel GbE LAN 支持 Intel® AMT 7.0
威强一键恢复 (One Key Recovery) 解决方案可快速创建 OS 备份并完成恢复

   产品信息




KINO-AQ670 Mini-ITX SBC 支持 LGA1155 Intel® Core™ i7 /i5/ i3/Pentium® and Celeron® CPU, DDR3, VGA/ DVI-D, 2COM, Intel GbE, SATA 6Gb/s, US B3.0, HD 音频 和 RoHS
    规格




CPU LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium® 和 Celeron® 处理器
芯片组 Intel® Q67
内存 2 个 204-pin 1066/1333MHz 双通道 DDR3 SDRAM SO-DIMM (系统****支持 16GB)
BIOS UEFI BIOS
以太网 Intel® 82583V PCIe 控制器
Intel® 82579 PHY 支持 Intel® AMT 7.0
图形引擎 Support for DX10.1 and OpenGL3.0, full MPEG2. VC1. AVC decode
显示输出 VGA intrgrated in Intel® Q67
DVI-D integrated in Intel® Q67
Super IO Fintek F81866
音频 Realtek ALC662 HD 音频解码
I/O 接口 2 x RS-232
1 x TPM pin header
6 x USB 2.0
2 x USB 3.0
2 x SATA 3Gb/s
2 x SATA 6Gb/s 支持 Raid 0,1,5,10
1 x PS/2 KB/MS
扩展 1 x PCIe x16 插槽
看门狗定时器 软件可编程支持 1~255 sec. 系统恢复
GPIO 可编程 8-bit GPIO
风扇 1 x 4-pin CPU 风扇接口
1 x 4-pin 系统风扇接口
电源 ATX 电源
功耗 5V@3.84A, 12V@0.16A, Vcore_12V@5.31A, 3.3V@1.81A, 5VSB@0.5A (2.5GHz Intel® Core™ i5-2400S with 2GB*2 DDR3 1333MHz)
操作温度 -10°C ~ 60°C
相对湿度 5% ~95%, 无冷凝
尺寸 170mm x 170mm
重量 GW:1100g, NW: 700g


    尺寸 (单位: mm)





    包装清单




1 x KINO-AQ670 Single Board Computer
1 x Mini Jumper Pack
1 x I/O shielding (P/N: 45014-0008C0-00-RS) 1 x Utility CD
4 x SATA Cable (P/N: 32801-000703-200-RS) 1 x QIG

    订购信息




料号 描述
KINO-AQ670-R10 Mini-ITX SBC supports LGA1155 Intel® Core™ i7/i5/i3 CPU, DDR3, VGA/DVI-D, 2COM, Intel GbE, SATA 6Gb/s, USB 3.0, HD Audio and RoHS
19800-003100-100-RS Dual ports USB cable with bracket
32102-000100-200-RS SATA power cable
SACF-KIT01-R10 SATA to CF converter board
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
CPU-DT-i5-2500T Intel® Core™ i5-2500T processor, LGA-1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T Intel® Core™ i5-2390T processor, LGA-1155, dual core 2.7GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2120T Intel® Core™ i3-2120T processor, LGA-1155, dual core 2.5GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-P-G620T Intel® Pentium® G620T processor, LGA-1155, dual core 2.2GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440 Intel® Celeron® G440 processor, LGA-1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU cooler
CF-1156A-RS High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156B-RS High-performance LGA1155/LGA1156 cooler kit, 95W
CF-1156C-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W
