 New Level of Performance |
 |
New 45nm Family Process |
| |
 |
| 45nm Intel Core 2 Duo Features |
|
| Built upon enhanced Intel Core Microarchitecture |
|
| Greater Performance at given frequency and higher frequency |
|
| Introduce new SSE4 for graphic/ media/ gaming application |
|
| Better energy efficiency |
|
| Larger Cache, Faster Buses | | |
| |
|
Desktop CPU Introduction |
| |
| |
|
Core Micro-architecture Evolution |
| |
|
| |
| |
| | |
45nm VS. 65nm |
 |
|
Core Micro-architecture Evolution |
| |
| CPU |
ScienceMark |
CPU-Z
(8192KB, 128Byte Stride) |
| Conroe |
13 cycles |
66.87 ns |
| Wolfdale |
12 cycles |
48.86ns | |
| Larger L2 Cache & lower Latency deliver better performance in Computing /Video Processing/ Graphic/ Multi-Media applications!! | | |
| |
|
Data Processing Capability Improved |
| |
| Benchmark |
Wolfdale |
Conroe |
Improvement |
| SicenceMark 2.0 |
Overall |
1463.85 |
1378.07 |
+6.22% |
| SiSoftware Sandra 2007 |
RAM Bandwidth Int |
6919 |
6318 |
+9.51 |
| RAM Bandwidth Flo |
6891 |
6285 |
+9.64 |
| CineBench 9.5 |
Multi-Core/CPU |
798 |
742 |
7.55% | | | |
| |
|
Graphic Performance Improved |
| |
| Benchmark |
Wolfdale |
Conroe |
Improvement |
| 3D MARK 05 |
Default |
15316 |
14055 |
+8.97 |
| CineBench 9.5 |
C4D Shading |
503 |
462 |
+8.87 |
| OpenGL Software |
1738 |
1458 |
+19.20% |
| Mainconcept |
1080p MPEG2 to H.264 |
204.78s |
179.20s |
+12.49% | | | |
| |
|
Greater Power Efficiency |
| |
| CPU Status |
Wolfdale |
Conroe |
| Idle |
Power |
43 W |
61 W |
| Temperature |
31oC |
41¡ãC |
| Max Power Loading |
Power |
59 W |
83 W |
| Temperature |
37oC |
49¡ãC | | | |
| | |
IAMT Ready to Simplify IT Manageability |
 |
| Discover: |
| Intel?Active Management Technology (Intel?AMT) stores hardware & software information in non-volatile memory and allows IT to discover the assets, even while PCs are powered off**. With Intel?AMT, remote consoles do not rely on local software agents, helping to avoid accidental data loss. |
| |
| Heal: |
| Intel AMT provides out-of-band management capabilities to allow IT to remotely heal systems after OS failures. Alerting & event logging help IT detect problems quickly to reduce downtime. |
| |
| Protect: |
| Intel AMT helps to protect your network by making it easier to keep software and virus protection consistent and up-to-date across the enterprise. Third party software can store version numbers or policy data in non-volatile memory for off-hours retrieval or updates | |
 |
 | |
| | |
Easy-to-use Data Protection by Intel Matrix Storage |
 |
 |
 |
Unique Matrix RAID capability
Easy to use data protection features
Native eSATA enables BOM reduction
High performance RAID 0, 1, 5, 10 | |
| | |
|
Specifications
|
.gif) |
CPU |
|
LGA775 45nm Intel Core 2 Quad, Core 2 Duo, Celeron CPU with a 1333/1066/800 MHz FSB |
|
System Chipsets |
|
Intel Q35 + ICH9DO |
|
BIOS |
|
AMI BIOS Label with 8MB SPI EEPROM |
|
System Memory |
|
4 x 240-pin 2 GB (max.) 800/667 MHz dual-channel DDR2 SDRAM DIMM (system max. 8 GB) |
|
Ethernet |
|
| Dual GbE |
| LAN1: Intel 82573L (MAC + PHY) |
| LAN2 :Intel 82566DM (PHY) with iAMT support | |
|
IO Interface |
|
| 4 x RS-232 |
| 12 x USB 2.0 |
| 6 x SATA II support RAID 0, 1, 5, 10 |
| 1 x LPT |
| 1 x FDD |
| 2 x PS/2 for KB/MS (external) | |
|
Digital I/O |
|
8-bit Digital I/O, 4-bit input / 4-bit output |
|
Infrared Interface |
| |
1 x Infrared Interface by pin header | |
|
Audio |
| |
Realtek ALC883 HD Audio |
|
Graphic |
|
VGA intergated in Intel?Q35 |
|
TPM1.2 |
|
1 x 20-pin header on-board for TPM (Trusted Platform Module) |
|
Watchdog Timer |
|
Software Programmable supports 1 ~ 255sec. system reset |
|
Power Supply |
|
ATX |
|
Power Consumption |
|
| 3.3V-2.41A, 5V-5.71A, 5Vsb-0.13A, 12V-0.18A (2DMark 2001) |
| Intel Core 2 Duo E6850 3.0GHz, 8GB DDR2 667MHz, 3DMark 2001 | |
|
Temperature |
|
Operating: 0 ~ 60oC (32 ~ 140oF) |
|
Humidity |
|
Operating: 5% ~ 95% non-condensing |
|
Dimensions |
|
244mm x 244mm |
|
Weight |
|
GW: 1.1kg | | | |
Packing List & Ordering Information |
| Packing List |

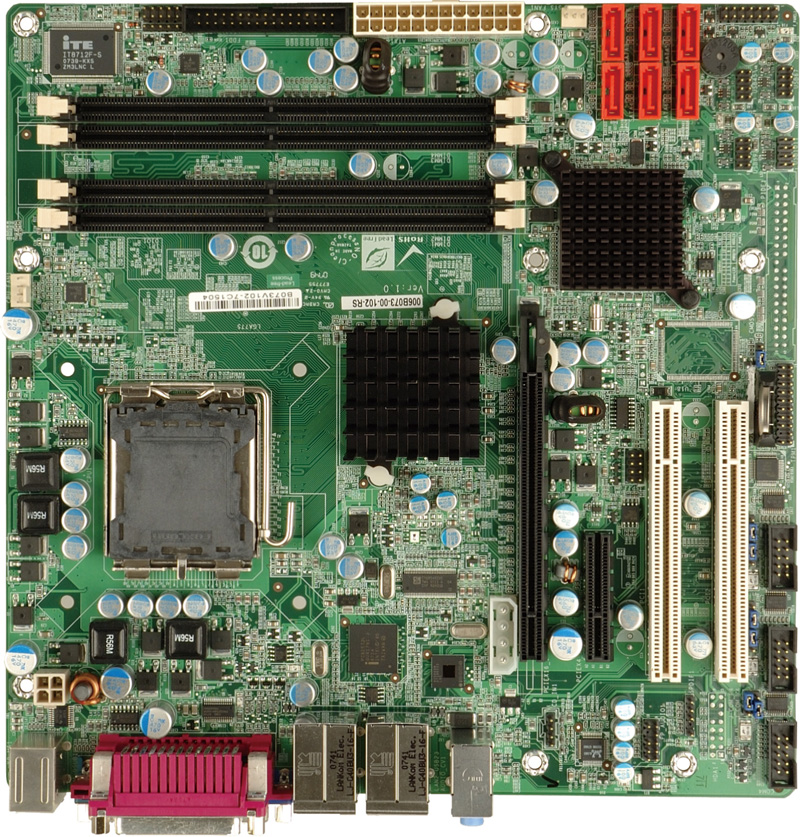

| 1 x IMB-Q354 single board computer |
1 x USB cable (P/N: CB-USB02-RS) |
| 1 x Mini jumper pack |
1 x Utility CD |
| 6 x SATA cable (P/N: 32000-062800-RS) |
1 x IO Shielding (P/N: 45002-450903-00-RS) |
| 3 x SATA Power cable (P/N: 32100-088600-RS) |
1 x QIG |
| 1 x Dual RS-232 cable (P/N: 19800-000051-RS) |
| |
| |
| Ordering Information |
| Part No. |
Description |
| IMB-Q354-R10 |
Mirco ATX Motherboard Supports 45nm LGA775 Intel Core Duo CPU with a 800/1066/1333 MHz FSB, Intel Q35 & ICH9DO platform, Dual Intel PCIe GbE, Six SATA II
with RAID Functions. |
| CF-520-RS |
High Performance CPU Cooler (115mm x 115mm x 67mm, 115W) |
| TPM-IN01-R10 |
Infineon 20-pin Trusted Platform Module with S/W Management Tool |
| TPM-WI-1-R10 |
Winbond 20-pin Trusted Platform Module with S/W Management Tool |
| SDVO-100VGA-R10 |
PCIe x16 VGA Output SDVO Card supports dual display (IEI CPU board only) |
| SDVO-100DVI-R10 |
PCIe x16 DVI Output SDVO Card supports dual display (IEI CPU board only) |
| CF-775A-RS |
CPU cooler | | | | | |
| |
| |
|
