| Main Feature |
 |
Pure ISA solution with new AMD® Geode GX2 processor and on board DDR memory |
| |

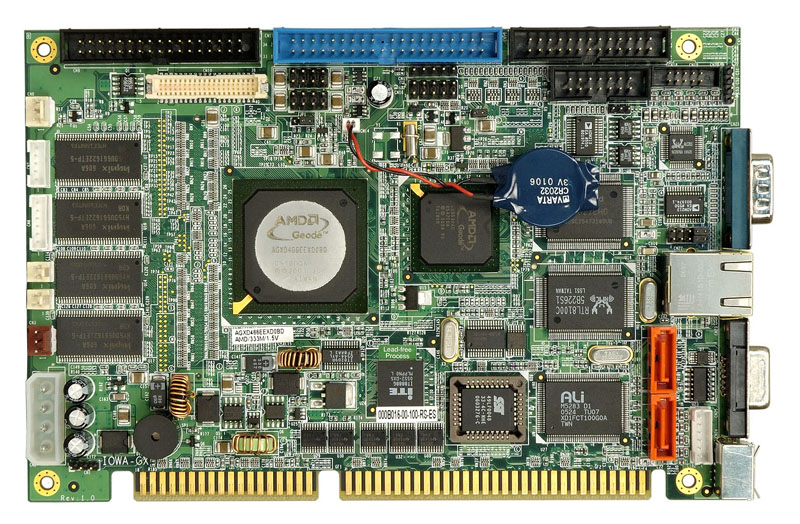

The IEI IOWA GX series is built within a half-size SBC form factors with complete system functionalities, while featuring flexibility, versatility, and enhanced capabilities. |
| |
|
 |
Flexible memory options |
|
| |
On board DDR266: 128 MB memory. Extra one available DDR SO-DIMM socket Total System memory support up to 1GB |
|
| |
|
 |
 |
Extended Connectivities |
| |
Enhanced TTL, SATA, RS-232, RS-422/485 and USB 2.0 interfaces for extended connectivities |
| |
|
 |
Green Product |
|
| |
RoHS Compliance |
|
 |
Pure ISA solution with new AMD® Geode GX2 processor and on board DDR memory |
| |
Complete CPU/ NB Integrated Solution
|
| |
|
|
| |
|
| |
IEI GX Benefit |
|
| |
IOWA-GX intergrades with AMD Geode™ GX 466 processor and CS5536 companion device, the IEI IOWA-GX delivers the optimum balance between power consumption and performance. The IOWA-GX is powered by a new x86 core processor with support for MMX and 3DNow!™ technology extensions. Built around the AMD GeodeLink™ architecture with an on-chip bandwidth of up to 6Gbps, the GX processor supports high-quality Internet applications. |
|
| |
Equivalence Platform |
| |
| Processor Feature Comparison VS. GX1-300 |
| Feature |
Geode GX2 |
| Integer Performance |
1.5x VS. GX1-300 |
| FPU Performance |
5x VS. GX1-300 (w/ 3DNow!) |
| FPU Instruction Set |
MMX + 3DNow |
| Caches |
16KI + 16 KD |
| Memory |
266MHz DDR |
| PCI Interface |
66MHz |
| Internal Bus |
GeodeLink 6GB/s |
| Clock Speed |
333-400MHz |
| Process |
0.15u |
| Package |
368 EBGA |
 | |
 |
| Feature |
CS-5535 |
CS-5536 |
| PCI Interface |
66MHz |
66MHz |
| IDE Interface |
ATA-66 |
ATA-66 |
| USB Interface |
4 USB 1.1 Ports |
4 USB 2.0 |
| Graphics |
Integrated into GX2 |
Integrated into GX |
| Power Management |
APM, ACPI |
APM, ACPI |
| Process |
0.15¦Ì, 1.2/1.5v |
0.13¦Ì, 1.2V |
| Package |
208 PBGA |
208 PBGA | | |
| |
|
|
|
 |
Flexible memory options |
|
| |
On board DDR266: 128 MB memory. Extra one available DDR SO-DIMM socket Total System memory support up to 1GB |
|
| |
|
|
 |
Extended Connectivities |
| |

|
Complete IO/ LCD/ BP Support |
| |
|
| |
|
|
| |
 |
Storage Protection with Performance |
| |

|
I. Protection |
 |
| |
|
 |
Vibration free lockable SATA connectors and cables to protect the connection between HDD and SBC |
| |
|
 |
RAID 1 with mirror function provides redundancy data protection |
| |

|
II. Performance |
| |
|
|
IEI SATA RAID Storage Technology provides RAID capability, enabling faster storage performance with data striping with protecting against data loss from a hard drive failure by mirroring all data across multiple devices. |
| |
| HDD RAID TEST |
IDE |
SATA |
RAID 0 |
RAID 1 |
JBOD |
| Read Speed MB/s |
48.5 |
56.8 |
91.1 |
56.8 |
56.3 | |
| |
|
| |
|
| |
 |
Extra Data Security ! |
| |
 |
 |
|
2 * 3.5¡± SATA HDD, hot swappable, maximum capacity |
|
|
IOWA-GX + RIAD Function make a total security solution to you !!! |
| RAID |
Raid 0 |
Raid 1 |
| Minimum Disks Requirement |
2 |
2 |
| Capacity |
N |
N/2 |
| Redundancy |
NO |
Yes | | |
|
 |
Equivalent model |
| |
|
|
 |
Green Product |
| |
IEI is committed to compliance with all applicable laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) in electrical and electronic products. The goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. With IEI ' s new lead free production, all customers can start to work for their long term projects without worry about the RoHS regulation. |
|
|
|
 |
Specification |
| |
|
|
 |
Audio AC¡¯97 Codec Realtek ALC203 |
 |
Display CRT CRT integrated in AMD® Geode GX466 TTL 24-bit TTL LCD integrated in AMD Geode GX466 |
 |
Watchdog Timer Software programmable supports 1~255 sec. system reset |
 |
Power Supply +5V¡À 5%, AT/ATX power support |
 |
Power Consumption +5V@0.92A (AMD GX 466 with DDR 256MB RAM) |
 |
Temperature operation: 0 ~ 60º (32 ~ 140ºF) |
 |
Humidity operation: 5% ~ 95% non-condensing |
 |
Dimension 165mm x 115 mm |
 |
Weight GW: 1.0Kg | | |
|
 |
Ordering Information |
| |
| Packing List |
| 1 x IOWA-GX single board computer |
1 x SATA power cable ( P/N: 32100-088600-RS) (IOWA-GX-466S-128MB only ) |
| 1 x Mini jumper pack |
1 x Keyboard/ PS2 mouse cable (P/N: 32000-000138-RS) |
1 x IDE flat cable 40p/40p/40p ( P/N: 32200-000052-RS) |
1 x Utility CD |
2 x SATA cable ( P/N: 32000-062800-RS) (IOWA-GX-466S-128MB only ) |
1 x QIG | |
| |
|
|
| |
| Ordering Information |
Part No.
|
Description |
| IOWA-GX-466-128MB-R10 |
Half-size SBC with AMD GX 466 processor 333Mhz, CRT/LCD,LAN, Audio and onboard 128MB DDR RAM |
| IOWA-GX-466S-128MB-R10 |
Half-size SBC with AMD GX 466 processor 333Mhz, CRT/LCD,LAN, SATA, Audio and onboard 128MB DDR RAM |
| CB-USB02-RS |
USB cable |
| 19800-000047-RS |
1 x 2.54 Pitch single RS-232 port cable w/BK |
| 32000-072101-RS |
Audio cable |
| 32200-000017-RS |
FDD cable |
| 19800-000049-RS |
LPT cable | |
| | | |
| |
| |
|
