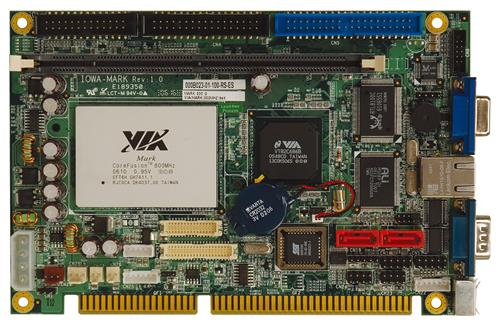

IOWA-MARK Features Build in VIA-MARK Platform VIA MARK solution combines VIA Eden-N CPU and Twister-T133 north bridge into one single package and offers industry leading power efficiency with unprecedented legacy support. VIA Mark is also scalable to 800MHz with a maximum TDP of just 8 watts facilitating silent, fanless designs for IOWA-MARK. Support RAID function and multiple display interface IOWA-MARK provide RAID function for faster and safer storage system requirement. It also supports multiple graphic output interface such as VGA / TTL & LVDS for versatile display conditions. CPU card with pure ISA interface, support DMA mode IOWA-MARK Offering full legacy support through ISA (Industry Standard Architecture) also supports DMA mode to enhance system performance. IEI provides Backplanes for ISA SBC Eight backplanes for ISA SBC provide powerful expansion capability. IEI also provide industrial chassis for delivering system level solution.  VIA Mark Platform Benefits Benefit Low Power and Fanless solution Long term support till 2010/Dec. Easy for replacing VIA VT8606 & Eden/C3 series w/o impact Drivers / Software / BIOS compatible CPU Spec VIA MARK CoreFusion Processor Frequency 533/800MHz Processor FSB 133MHz TDP Max. 6/8W Process Technology 0.13u Package HSBGA 3D Instruction Set MMX, SSE, 3DNow compatible Memory Support PC100 / 133 SDRAM Integrated Graphics S3 Graphics ProSavage4 LVDS Transmitter Yes Dual Display Support Yes Video Capture Port Yes ISA Support Yes (VIA 686B SB solution)  RAID for faster and safer storage system RAID System consists of a set of two or more hard disks, with two basic purposes: provide a faster disk system (i. e., speed up disk data loading) through a technique called data stripping - or RAID 0 - and/or set up a safer disk system by means of a technique known as mirroring or RAID 1. These two techniques may be used either separately or jointly RAID 0 (Data Stripping) RAID 1 (Data Stripping) the pair of hard disks will make up a single set Computer to believe that it is dealing with a single, larger disk. Copy automatically the entire contents of a hard disk to another one. Main hard disk goes up in smoke, the second will automatically ctivate.  Multiple display interfaces LVDS Benefit High speed data transfer support high resolution in industrial application Low power requirement Low noise for stable quality of signal High noise-resistance  ISA interface support DMA transfers DMA Mode DMA controller can transfer data from I/O port to memory or from memory to I/O without going through CPU. Safe CPU resource for transferring block of data to enhance system performance. ISA (Industrial Standard Architecture) Year invented 1981 Invented by IBM width 8 bit / 16 bit Number of device 1 per slot Style parallel Speed 8 MHz  IEI Backplanes for ISA SBC only Model BP-3S-RS-R30 BP-4S-RS-R30 BP-5S-RS-R30 BP-6S-RS-R30 Total Slot 3 4 5 6 ISA Slot 3 4 5 6 PSU Type AT AT AT AT Chassis PAC-53GH PR-1300G PAC-400G PAC-42GH PR-1500G PAC-52G, PAC-106G PR-1300G, PAC-1000G Note Model BP-7S-RS-R30 BP-8S-RS-R30 BP-10S-RS-R30 BP-14S-RS-R30 Total Slot 7 8 10 14 ISA Slot 7 8 10 14 PSU Type AT AT AT AT Chassis PAC-700G PAC-1700G PAC-125G RACK-3400G RACK-305G, RACk-360G RACK-814G, RACK-3000G Note  Specification CPU VIA MARK 533/800MHz System Chipset VIA VT82C686B BIOS Award BIOS System Memory - 1 x 168-pin PC100/133MHz up to 512 MB - On board 128MB SDRAM Ethernet Realtek RTL8100C for 10/100Mbps I/O I/O Interface 4 x USB 1.1 1 x IDE 1 x FDD 1 x LPT 2 x SATA-150 with ALI M5283 RAID 0,1 function support. 2 x RS232 1 x PS2 Mini DIMM Audio Realtek ALC655 with AC'97 codec Display CRT integrated in VIA MARK 24 bits TTL LVDS Dual channel 18- bit LVDS SSD CF Type II Watchdog Timer Software programmable supports 1~255 sec. System reset reset, by ICP6629 Power Supply +5V,+12V, ATX support Power Consumption +5V@2.99A, +12V@0.09A(VIA MARK 800MHZ, On board 128MB+PC133 128MB) +5V@2.81A, +12V@0.04A(VIA MARK 533MHZ, On board 128MB+PC133 128MB) Temperature operation: 0~60¡ãC (32~140¡ãF) Humidity operation: 5% ~ 95% non-condensing Dimension 185mm x 122 mm Weight GW: 1.0Kg  Packing List 1 x IOWA-MARK single board computer 1 x Audio cable (P/N:32000-072101-RS) 1 x Mini jumper pack 1 x SATA Power cable(P/N:32000-088600-RS) 1 x ATA66/100 flat cable (P/N: 32200-000052-RS) 1 x KB/PS2 Mouse Y cable(P/N:32000-000138-RS) 2 x SATA cable (P/N:32000-062800-RS) 1 x Utility CD 1 x single RS232 cable ((P/N: 19800-000047-RS) 1 x QIG  Ordering Information Part No. Description IOWA-MARK-533-128MB-R10 ISA CPU Card VIA MARK 533Mhz, CRT/LCD, LAN, Audio with on board 128MB Memory IOWA-MARK-533S-128MB-R10 ISA CPU Card VIA MARK 533Mhz, CRT/LCD, LAN, SATA, Audio with on board 128MB Memory IOWA-MARK-800-128MB-R10 ISA CPU Card VIA MARK 800Mhz, CRT/LCD, LAN, Audio with on board 128MB Memory IOWA-MARK-800S-128MB-R10 ISA CPU Card VIA MARK 800Mhz, CRT/LCD, LAN, SATA, Audio with on board 128MB Memory 32200-028401-RS Single RS232 cable 32200-000017-RS FDD cable 19800-000049-RS LPT cable
