| Features |
| 1. PICMG1.3 and RoHS compliant |
| 2. Supports Socket S1 AMD Processors: AMD Turion?64 X2 Dual-Core Mobile Technology and Mobile AMD Sempron?processors |
| 3. Built in AMD 690G Top-grade Integrated Multi-Media Platform |
| 4. Support DVI-D + VGA, (S-Video, Composite, Component) + DVI-D for Dual Display Configurations |
| 5. 4 x SATA II support Raid 0, 1,0+1 Function |
| 6. Support Dual PCIe GbE |
| 7. Support 1x PCIe Mini Card Slot for Expansion | |
|
|
|
AMD Mobile Solution Introduction |
| |
|
| |
| |
| |
Benefits-1
|
|
|
| | |
| |
|

|
| |
Backplanes Support List
|
|
|
| |

|
| |
Value-Added Features
|
|
|
| |
|
|

|
| |
NEW PICMG 1.3 Backplane
|
|
|
| |
|
|

|
| |
RAID Protection
|
|
|
|

Specification
|
| |
CPU |
|
Supports AMD Turion?64 X2 Dual-Core Mobile Technology and Mobile AMD Sempron?Socket S1 processors |
| |
HyperTransport?Technology |
|
200/400/600/800MHz HyperTransport Interface |
| |
System Chipset |
|
AMD 690G + SB600 |
| |
BIOS |
| |
AMI |
| |
System Memory |
| |
2 x SO-DIM Dual Channel DDR2 400/533/667/800MHz up to 2GB |
| |
Ethernet |
| |
Dual PCIe GbE Broadcom BCM5787M Chipsets |
| |
IO Interface |
| |
2 x RS-232 1 x LPT 10 x USB2.0 (6 on CPU card by pin header, 4 on backplane by pin header) 4 x SATA II support RAID 0, 1, 0+1 1 x IDE 1 x FDD 1 x 6-pin Mini Din connector for KB&MS 1 x 20-pin LPC TPM |
| |
Digital I/O |
| |
8-bit Digital I/O, 4-bit input / 4-bit output |
| |
IrDA |
| |
1 x IrDA by pin header |
| |
Audio |
| |
7.1 Channel HD Audio Kit with Realtek ALC883 supports dual audio streams | |
| |
Graphic |
|
1. ATI Radeon Express 1250 graphic engine intergated in AMD 690G provides VGA/DVI-I/TV(S-Video, Composite, Component) interfaces 2. AVIVO provides advanced scaling, color correction of video playback processing, H/W decoding(WMV9, MPEG2/MPEG4), 2D/3D H/W |
| |
Dual Display Configurations |
|
DVI-D + VGA TV(Composite, S-Video, Component) + DVI |
| |
Expansion |
|
1 x PCIe Mini Card Slot |
| |
Watchdog Timer |
| |
Software Programmable supports 1~255sec. system reset |
| |
Power Supply |
| |
ATX |
| |
Power Consumption |
| |
3.3V@0.77A, 5V@4.23A, 5Vsb@0.1A, 12V@2.53A (AMD Turion 64x2 TL-60 2.0GHz, DDR2 667MHz 1GB x 2)-3DMark?2001 SE 330 |
| |
Temperature |
| |
operation: 0°C ~ 60°C(32°F ~ 140°F) |
| |
Humidity |
| |
operation: 5% ~95% non-condensing |
| |
Dimensions |
| |
338mm x 122mm |
| |
Weight |
| |
GW:1.1g |
| |
|
| |
| | |
| | | |
| |
| | | |

Packing Lists |

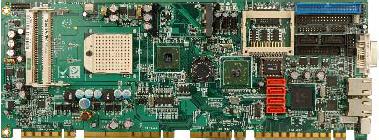

| 1 x PCIE-690S1 single board computer |
| 1 x Mini jumper pack |
| 1 x ATA66/100 flat cable (P/N: 32200-000052-RS) |
| 4 x SATA cable (P/N: 32000062800-RS) |
| 2 x SATA power cable (P/N: 32100-088600-RS) |
| 1 x KB/MS Y cable (P/N: 32000-000138-RS) |
| 1 x Dual RS-232 cable (P/N:19800-000051-RS) |
| 1 x USB cable (P/N: CB-USB02-RS) |
| 1 x VGA D-Sub Cable with Bracket (P/N:19800-000025-RS) |
| 1 x Utility CD |
| 1 x QIG | |
| |
Ordering Information |
| Part No. |
Description |
| PCIE-690S1-R10 |
PICMG1.3 Full Size CPU Card with AMD Socket S1 Processors, AMD 690G & SB600 Chipset, TV-out, DVI-I, VGA Multi-display Interfaces, 4 x SATA II with Raid Function, Dual PCIe GbE, PCIe Mini Card Slot |
| 24105-000047-RS |
AMD Turion 64 X2 Dual-Core Mobile TL-60, 2.0GHz; 512KBx2, 800MHz, TDP 35W, Socket S1(638pins), RoHS |
| 24105-000044-RS |
AMD Turion 64 X2 Dual-Core Mobile TL-52, 1.6GHz;512KBx2, 800MHz, TDP 31W, Socket S1(638pins), RoHS |
| 24105-000045-RS |
Mobile AMD Sempron Single-Core 3500+, 1.8GHz; 512KB, 800MHz, TDP 25W, Socket S1(638pins), RoHS |
| 24105-000053-RS |
Mobile AMD Sempron Single-Core 2100, 1GHz; 256KB, 800MHz, TDP 9W, Socket S1(638pins), RoHS |
| TPM-IN01-R10 |
Infineon 20-pin Trusted Platform Module with S/W Management Tool |
| TPM-SI01-R10 |
Sinosun 20-pin Trusted Platform Module with S/W Management Tool |
| TPM-WI-1-R10 |
Winbond 20-pin Trusted Platform Module with S/W Management Tool |
| AC-KIT-883HD-R10 |
7.1 Channel HD Audio Kit with Realtek ALC883 supports dual audio streams |
| HDTVCABLESET-01 |
HDTV Cable Set with Composite / S-Video / Component Output |
| CF-479B-RS |
High Performance CPU Cooler (50mm x 50mm x 26mm, 50W) |
| 32200-00001-RS |
FDD Cable |
| 19800-000049-RS |
LPT Cable |
| | | |
| | | |
 | |
| |
| |
|
