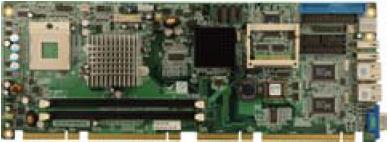

PCIE-9152

PICMG 1.3 Socket-479 Intel Pentium M, Celeron M CPU Card With VGA,Dual PCI GbE, SATA and USB 2.0


What is PICMG1.3 ?


Why PICMG1.3?

Faster & Higher ?PICMG1.3

Intel 915GM Platform

Top-grade Choice for Mobile Single Core CPU


Intel 915GM Express Chipset

Intel 855GME Chipset

Processor Supported

Pentium?M, Celeron?M

Pentium?M, Celeron?M

FSB Speed

533MHz/400MHz

400MHz

Memory Type

DDR2 400/533,

DDR 333/266/200

DDR 333 1 ch

Memory Channels

Dual/Single Channel

Single Channel

Integrated Graphics

Intel GMA 900,

Integrated 32-bit 3D/2D gfx core with Dynamic Video Memory Technology

(200/222/333 MHz @ 1.5v) ,

(190/200/213/222 MHz @ 1.05v)

Discrete Graphics

PCIe x16

AGP4x (discrete graphics only)

Integrated TV Out

Yes

N/A

Max Panel Display Resolution

LVDS: Up to UXGA (1600x1200),

LVDS: Up to UXGA (1600x1200),

Digital/Analog Converter for CRT: QXGA (2048x1536)

Digital/Analog Converter for CRT: QXGA (2048x1536)

Intel Display Power Savings Technology

Yes

N/A

PCI Masters

7 PCI Masters

6 PCI Masters

IDE / SATA

1 x ATA 100

ATA 66/100

2 x SATA

USB

8 x USB 2.0

6 x USB 2.0/1.1

PCI Express I/O Ports

Four PCIe x1

N/A

Audio Circuitry

Intel?High Definition Audio 24-bit 192KHz, AC'97 2.3 Audio

Integrated AC'97 controller, 6 channels


Value Added Designs




Product Spec

CPU
On-board ULV CeleronR M 600MHz 512k cache / 1.0GHz zero cache processor,
Socket 479 IntelR PentiumR M CeleronR M (Dothan and Banias Core) with
400/533MHz FSB
System Chipset
Intel?915GM + ICH6-M
BIOS
AMI Flash BIOS
System Memory
2 x 240-pin dual channel DDR2 400/533MHz up to 2GB
Ethernet
Dual Realtek RTL8110SC PCI GbE
I/O
2 x RS-232
1 x LPT
2 x USB2.0
2 x SATA
1 x IDE
1 x FDD
1 x KB (by pin header)
1 x MS (by pin header)
1 x 20-pin (for TPM1.2 Module)
Digital I/O
8-bit digital I/O, 4-bit input / 4-bit output
IrDA
1 x IrDA by pin header
Super I/O
ITE IT 8712F
SSD
CF Type II

 Display Interface
VGA integrated in Intel?915GM
18-bit Dual-channel LVDS
Supports HDTV resolution up to 1080i/1080p
Audio
5.1 Channel AC'97 Audio Kit with Realtek ALC655 Codec
7.1 Channel HD Audio Kit with Realtek ALC883 support dual audio streams
Watchdog Timer
Sofware programmable supports 1~255sec.
System reset
Power Supply
ATX
Power Consumption
5V@ 1.89A, 12V@ 1.75A, 3.3V@ 3.64A
Temperature
operation: 0 ~ 60?C (32 ~ 140?F)
Humidity
operation: 5% ~ 95% non-condensing
Dimension
338mm x 122mm
Weight
GW: 1100g / NW: 373g


Packing List & Ordering Info
