High bandwidth performance by PCI-Express x 16 !

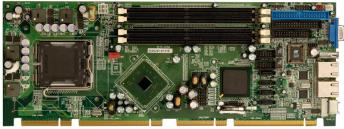

The PICMG 1.3 PCIE-9450 solves the bandwidth problem by replacing the system host board (SHB)
Intel Dual Core Pentium D CPU support !
An Intel?Pentium?D processor-based PC delivers an extra powerful gear when you need it.
Dual PCI-Express GbE with RAID function support !
The Intel?945G Express Chipset delivers outstanding system performance through high-bandwidth interfaces .
Green Product
RoHS Compliance |
 New PICMG1.3 Brief !
The PICMG 1.3 PCIE-9450 solves the bandwidth problem by replacing the system host board (SHB) to backplane parallel bus interfaces with high-speed serial links.
Why PICMG 1.3 - PCIE-9450?
 Data bottlenecks
Parallel bus architectures can¡¯t handle high-performance system
| Faster |
Chipsets and system bus |
| |
Chipsets no longer offer native support for ISA |
| |
Chipsets are migrating toward PCI Express |
|
|
|
|
|
PCI Express x8 |
|
|
|
Half duplex 24 |
Half duplex 533 |
|
Full duplex 2500 |
Full duplex 5000 |
New Bandwidth
PCI Express interfaces replace the PICMG 1.0 parallel interfaces
Full PCI card support is maintained with limited ISA card support possible
Enables a fast, simple and cost-effective transition to SHB.
| Specification |
PICMG 1.0 |
PICMG 1.2 |
PICMG 1.3 |
| BUS support |
ISA (24MB/s)
PCI 66(533MB/s) |
PCI-X 133(1066MB/s)
PCI-X 133(1066MB/s) |
PCI Express x1(5000MB/s)
PCI Express x8(2500MB/s)
PCI 32-bit bus (optional) |
Compatibility
Improves Upon Previous PICMG?1.0 specifications and fully support of existing system software and device drivers. PCIE-9450 brings you to the new high speed data bandwidth age!
| Connecto |
Type |
Pin Count |
Signal description |
| A |
PCI Express x16 |
164 |
One PCI Express x16, or
Two PCI Express x8 |
| B |
PCI Express x8 |
98 |
One PCI Express x8, or
Two PCI Express x4, or
One PCI Express x4 and Four PCI Express x1 |
| C |
PCI Express x16 |
164 |
Power pin, USB 2.0, Serial ATA, GbE, and IPMB |
| D |
PCI Express x8 |
98 |
32-bit PCI/PCI-X bus with bus speed up to 133MHz |
| Edge Connector Electrical Functions: |
| A/B: |
PCIe Links & Power |
| C: |
I/O & Power |
| D: |
Optional 32-bit PCI(-X) | |
| Edge Connector Mechanicals: |
| A/B: |
x16 PCIe, 164 contacts each |
| C/D: |
x8 PCIe, 98 contacts each |
| |
| | |
| |
New Dual Core Pentium?D
An Intel?Pentium?D processor-based PC delivers an extra powerful gear when you need it. |
|
 PCIE-9450 brings you to the latest CPU and Memory technology!
| Solution for: |
Low Cost Server |
| |
Real Time Monitor System |
| |
Performance Hungry System |
| Full Range CPU supported and tested |
| Mfg. |
|
Model |
Capacity/Speed |
Description |
|
Intel?/STRONG> |
Dual core |
820 |
Pentium 4 2.8GHz |
FSB:800MHz |
|
Intel?/STRONG> |
Dual core |
840 |
Pentium 4 3.2GHz |
FSB:800MHz |
|
Intel?/STRONG> |
|
520 |
Pentium 4 2.8GHz |
FSB:800MHz |
|
Intel?/STRONG> |
|
|
Pentium 4 3.73GHz |
FSB:1067MHz |
|
Intel?/STRONG> |
Dual core |
|
Pentium 4 3.8GHz |
FSB:800MHz |
|
Intel?/STRONG> |
|
|
Pentium 4 2.66GHz |
FSB:533MHz |
|
Intel?/STRONG> |
|
|
Celeron D 2.8GHz |
FSB:533MHz | |
| |
| Pentium?/SPAN> D Performance |
|
|
| |
|
Dual Core Pentium?D With DDRII 667!
PCIE-9450 with Intel 945G Express Chipset provides all new technology
Main Features
Support Intel Pentium Extreme Edition / Pentium-D 8xx
Series with 1066/800/533 MHz System Bus
- Dual Core Pentium?4 Processors combined physically
- Enhanced Intel?Speedstep Technology for better power consumption
- Intel EMT64 Technology support future OS Appliance
New Memory Architecture
This new design includes wider internal data buses that support dual-channel DDR2 memory technology at 667 MHz (up to 10.7 GB/s of peak memory bandwidth) for greater platform performance and memory flexibility.
| |
| SATAII With double transfer rate! |
 |
 |
Intel?nbsp;Graphics Media Accelerator 950
Intel?GMA 950 improved Microsoft DirectX9.0 3D performance, better video playback and quality. Combined with the Intel high-performance dual-channel memory interface, can deliver significant graphics performance over previous Intel platforms. and dual independent display. |
| |
|
Intel ?I/O Controller Hub (Intel?nbsp;ICH7R)
The Intel?945G Express Chipset elevates storage performance with next generation Serial ATA (SATA) and enhancements to Intel?Matrix Storage Technology. This chipset has four integrated SATA II ports for transfer rates up to 3 Gb/s (300 MB/s) to SATAII hard drives or optical devices. Support for RAID 0, 1, 5 and 10 allows for different RAID capabilities that address specific needs and usages. |
| |
 |
With retention latches on SATAII connectors, connection to SATAII drives is safe from vibration and accidental impact.
 |
| |
|
Drive interface |
Transfer rate |
|
P-ATA |
133MB/sec |
|
Serial ATA |
150MB/sec |
|
Serial ATA II |
300MB/sec |
|
Fibre Channel |
200MB/sec |
|
Ultra 160 SCSI |
160MB/sec |
|
Ultra 320 SCSI |
320MB/sec |
|
SAS Serial Attached SCSI |
320MB/sec | | |
| |
|
 |
PCI Express
PCI Express support higher ability for both PCI & AGP upgrading. PCI Express X1 provides 500MB/s opposed to PCIs 133MB/s, and PCI Express X16 provides 8G/s opposed to AGP 8X 2133MB/s. |
| |
Performance Difference
|
Dedicate VS Share Bandwidth
145% more efficiency than PCI GbE
 | |
| |
|
 |
PCIE-9450-R10 + AC-KIT08R-R10
5.1 Channel Audio Kit
 |
| |
Upgrading 5.1 Channel Audio Function in PCIE-9450 |
| |
| COLOR |
DESCRIPTION |
| 2 CHANNELS |
6 CHANNELS |
| Green |
LINE OUT |
FROUNT OUT |
| Blue |
LINE IN |
SURROUND OUT |
| Pink |
MIC IN |
CENTER_LFE OUT | |
 |
 | |
|
PCIE-9450 with Intel?Matrix Storage Technology
 |
 |
|
|
|
|
|
Four port SATA RAID controller, providing storage benefits of Intel?Matrix Storage Technology.
|
|
|
Exceptional storage performance with increased data protection on a RAID-enabled double hard drive array.
|
|
|
Integrated into system BIOS, enables pre-OS RAID creation, naming and deletion of RAID arrays.
|
Intel?RAID Migration Technology
|
Seamless migration from a single hard drive to a RAID 0 or RAID 1 dual hard drive array without requiring OS reinstallation.
|
|
|
Software interface providing advanced storage interface for Serial ATA, including native command queuing and native hot plug.
|
Intel?Matrix Storage Manager
|
Software solution with full management and status reporting of RAID array, including detailed reporting of storage devices.
| |
 |
 | |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| RAID |
Raid 0 |
Raid 1 |
Raid 10 |
Raid 5 |
| Minimum Disks Requirement |
2 |
2 |
4 |
3 |
| Capacity |
N |
N/2 |
N/2 |
N-1 |
| Redundancy |
No |
Yes |
Yes |
Yes | |
 |
 | |
| Performance with Protection |
| System Configuration |
| Memory |
Elixir DDR2 4200U 512MB*4 (M2TU51280AF-37B) |
O.S |
Windows XP professional service pack 2 |
| SATA HDD |
HITACHI HDT722525DLA380 (SATA II) |
Power |
Seven team ST-350BKV 350W |
| |
Western Digital WD2500KS-00MJB0 250GB (SATA ?#55911;�SPAN> |
|
| |
| |
|
RAID Type |
Configuration |
Average read speed (MB/s) |
CPU utilization |
|
RAID |
SATA?#55875;�R>(HDD 250GB*1) |
54.9 |
2% |
|
RAID 0 (2HDD) |
SATA?#55984;�>(HDD 250GB*2) |
99.7 |
4% |
|
RAID 1 |
SATA?#55875;�R>(HDD 250GB*2) |
54.7 |
4% |
|
RAID 0 (4HDD) |
SATA?#55875;�R>(HDD 250GB*4) |
121.1 |
4% |
|
RAID 10 (0+1) |
SATA?#55875;�R>(HDD 250GB*4) |
100.8 |
4% |
|
RAID5 |
SATA?#55875;�R>(HDD 250GB*3) |
90.3 |
4% | |
| |
| |
 |
| |
|
|
|
|
RoHS Compliance
IEI is committed to compliance with all applicable laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) in electrical and electronic products. The goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. With IEI ' s new lead free production, all customers can start to work for their long term projects without worry about the RoHS regulation.
|
|
|
| PCIE-9450 Specification |
|
CPU
Intel®LGA775 with FSB 533/800/1066Intel®Pentium®D processor supported |
|
System Chipset
Intel?945G + ICH7R |
|
BIOS
AMI Flash BIOSSMIBIOS (DMI) compliantConsole redirection function supportPXE (Pre-Boot Execution Environment ) supportUSB booting support |
|
System Memory
4 x DDRII 240-pin DIMM sockets of DDRII-400/533/667 MHz DDRII SDRAM |
|
Ethernet
Dual Marvell 88E8053 PCI-Express GbE controller |
|
I/O
I/O Interface
2 x RS-232
1 x LPT
1 x IrDA
7 x USB 2.0 (6 by pin header)
4 x SATAII-300, with Raid 0,1,5 and 10 supported
1 x ATA-100
1 x FDD1 x PS2 Keyboard / Mouse
2 x 5 Pin header for four GPI and four GPO | |
|
Display
Graphic controller
Intel?Graphics Media Accelerator 950 integrated with DB-15 VGA output |
|
Watchdog Timer
Software programmable supports 1~255 sec. system |
|
Power Supply
4 pin ATX 12V, 24 pin ATX Power on PICMG1.3 boardplane |
|
Power Consumption
12V: 9A, 5V: 2.6A, 3.3V: 6.3A, 5Vsb: 0.93A, -12V: 0.1A(Pentium D 3.73GHz/1066 MHz CPU with 4GB DDR2-667MHz) |
|
Temperature
operation: 0 ~ 60?(32 ~ 140ºF) |
|
Humidity
operation: 5% ~ 95% non-condensing |
|
Dimension
380(L)mm x 133(W)mm |
|
Weight
GW: 1.2Kg | | |
| PCIE-9450 Ordering Information |
| Packing List |
1x PCIE-9450 single board computer
|
1x KB/PS2 Mouse Y cable
P/N: 32000-000138-RS |
1x mini jumper pack
P/N: 33100-000033-RS
|
1x RS232 cable (2 COM Ports)
P/N: 19800-000051-RS |
1x ATA66/100 flat cable
32000-062800-RS
|
1x USB cable
P/N: CB-USB02-RS |
4x SATA cable
P/N: 32000-062800-RS
|
1x Utility CD |
2x SATA Power cable
P/N: 32100-088600-RS
|
1 x QIG | |
| |
| Ordering Information |
Part No.
|
Description |
PCIE-9450-R10
|
PICMG 1.3 LGA 775 533/800/1066 MHz FSB CPU Card with VGA, PCI-Express GbE, S-ATAII and USB 2.0 |
AC-KIT08R-R10
|
Audio Kit |
CF-520-RS
|
CPU Cooler |
32200-000017-RS
|
FDD cable |
32200-000040-RS
|
LPT cable | |
| | |
| |
| |
|
