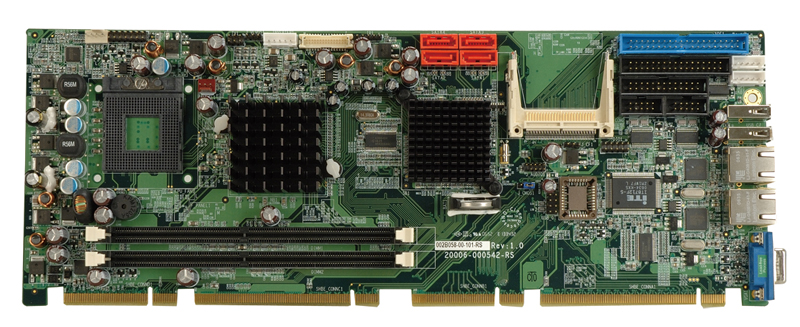

PCIE-9452

PICMG 1.3 Socket M Intel Core 2 Duo CPU Card With VGA,Dual PCIe GbE, SATA II and USB 2.0




 New PICMG 1.3 Brief

Improves Upon Previous PICMG® 1.0 specifications and fully support of existing system software and device drivers. PCIE-9450 brings you to the age of new high speed data bandwidth !
Connector
Type
Pin Count
Signal description
A
PCI Express x16
164
One PCI Express x16, or
Two PCI Express x8
One PCI Express x8, or
Two PCI Express x4, or
One PCI Express x4 and Four PCI Express x1
B
PCI Express x8
98
C
PCI Express x16
164
Power pin, USB 2.0, Serial ATA, GbE, and IPMB
D
PCI Express x8
98
32-bit PCI/PCI-X bus with bus speed up to 133MHz

Edge Connector Electrical Functions:
A/B – PCIe Links & Power
C - I/O & Power
D - Optional 32-bit PCI(-X)

Edge Connector Mechanicals:
A/C – x16 PCIe, 164 contacts each
B/D – x8 PCIe, 98 contacts each


 PCIE-9452 Dual Core Processor

A Dual-Core Intel® Processor Benefit
　
Core™ 2 Duo
Core™ Duo
Pentium® M
Processor Number
T7600
T2500
760
Architecture
65-nm
65-nm
90-nm
L2 Cache
4MB
2MB
2MB
Clock Speed
2.33 GHz
2 GHz
2 GHz
Front Side Bus
667 MHz
667 MHz
533 MHz
Chipset
945GM
945GM
915GM
Power (TDP)
34W
31W
27W
•Two physical Cores in a package to share system loading
•Each with its own L1 cache and share the L2 cache to enhance processing speed
•Each with its own execution resources with truly parallel multi-tasking and threaded execution. Increased throughput.


 Low Power Processor




 Low Power Processor




 Real-Time Thermal Test


Meeting your power budget is essential for attaining system performance and cost goals.
  Low power enables higher clock frequency, higher reliability, better noise margins, and reduced capital and operational costs.



 Dual GbE Support ASF2.0


 ASF2.0 Features
Remote management in low-power or OS absent states
Bi-directional communication.
Plug and play
System Health Monitor / Asset Security Management / Remote Control


Remote Control
Power up/down
Reset and Reboot Multiple Boot Device

Benefit
Minimize IT Maintenance
Minimizing system power consumption
Maximizing remote visibility of local systems


Value Add Options I.
HDTV Function
Audio Function
Value Add Options II.


 Specifications

CPU
Socket M Intel Core 2 Duo, Core Duo/Solo, with 667MHz FSB Intel® Celeron M 533MHz FSB (Yonah Core)
System Chipset
Intel® 945GM + ICH7R
BIOS
AMI Flash BIOS
System Memory
2 x 240-pin dual channel DDRII 400/533/667MHz up to 4GB
Ethernet
Dual PCIe GbE Broadcom BCM5787M chipsets
I/O Interface
2 x RS-232
1 x LPT 4 x USB 2.0
4 x SATA II with Intel RAID 0,1,5 and 10
1 x IDE
1 x FDD
1 x KB ( by pin header )
1 x MS ( by pin header )
Digital I/O
  8-bit digital I/O, 4-bit input/ 4-bit output
IrDA
  1 x IrDA by pin header
Super I/O
ITE IT8712F
Display Interface
VGA / 18-bit dual channel LVDS intgrated in Intel 945GM Support HDTV resolution up to 1080i / 1080P by component interface
Audio
5.1 channel AC’97 Audio Kit with Realtek ALC655 codec
7.1 channel HD Audio Kit with Realtek ALC883 support dual audio streams
SSD
CF Type II
Watchdog Timer
Software programmable supports 1 ~255 sec. System reset
Power Supply
5V@4.14A, 12V@2.9A, 3.3V@ 0.72A (Intel Core™2 Duo T7200 2.06GHz/667 MHz CPU with 1GB DDRII 667MHz)
Power Consumption
operation: 0'C ~ 60'C ( 32 ~ 140ºF)
Temperature
operation: 0'C ~ 60'C ( 32 ~ 140ºF)
Humidity
operation: 5% ~95% non-condensing
Dimensions
338 mm x 122 mm
Weight
GW: 1100 g / NW: 380 g


 Packing List / Ordering Information
Packing List
1 x PCIE-9452 Single Board Computer 1 x Dual RS-232 cable (P/N: 19800-000051-RS)
1 x Mini Jumper Pack 1 x USB cable (P/N: CB-USB02-RS)
1 x ATA 66/100 flat cable (P/N: 32200-000052-RS) 1 x KB/MS cable with bracket
(P/N: 19800-000066-RS)
4 x SATA cable (P/N: 32000-0628000-RS) 1 x Utility CD
2 x SATA Power cable (P/N: 32100-088600-RS) 1 x QIG

Ordering Information
Part No. Description
PCIE-9452-R10 PICMG 1.3 Socket M Intel® Core™2 Duo CPU Card With VGA,Dual PCIe GbE, SATA II and USB 2.0
AC-KIT-883HD-R10 7.1 Channel HD Audio Kit with Realtek ALC883 support dual audio streams
AC-KIT08R-R10 5.1 Channel AC'97 Audio Kit with Realtek ALC655
CF-479B-RS CPU cooler
SDVO-100VGA-R10 PCIe x16 VGA Output SDVO Card supports dual display
(IEI CPU board only)
SDVO-100DVI-R10 PCIe x16 DVI Output SDVO Card supports dual display
(IEI CPU board only)
32000-000075-RS 5-Pin wafer to PS/2 connector cable for Keyboard or Mouse
19800-000049-RS LPT cable
32200-000017-RS FDD cable
