| Features |
|
1. PICMG1.3 and RoHS compliance
|
|
2. LGA775 Intel Core 2 Quad processor CPU support up to 1066MHz FSB |
|
3. Dual channel DDRII 533/667/800 MHz support up to 4GB |
|
4. High performance PCI Express Gigabit Ethernet controller |
|
5. 6 x SATAII with Intel Matrix Storage Manager support | |
 |
 New PICMG 1.3 Brief -1
|
|
| |
| | |
|
New PICMG 1.3 Brief -2
|
|
|
| | |
|
|
|
IEI Quad Core Platform
|
|
|
| | |
|
Intel Matrix Storage Solution
|
|
|
| | |
|
RAID protection
|
|
|
|
|
|
NEW PICMG 1.3 Backplane
|
|
|
|
Chassis Solution
|
|
|
| | | | |
|
Specification
|
|
CPU |
|
LGA 775 Intel®Core 2 Quad, Core 2 Duo, Pentium?D/4 , Celeron®D with 533/800/1066MHz FSB |
|
System Chipset |
|
Intel Q965 + ICH8DO |
|
BIOS |
|
AMI Flash BIOS |
|
System Memory |
| |
4 x 240-pin dual channel DDRII 533/667/800 MHz up to 8GB |
|
Ethernet |
| |
Dual Intel PC82573 PCIe GbE controller |
|
I/O Interface |
| |
2 x RS-232 |
| |
10 x USB 2.0 |
| ( 4 by Pin header(CPU Board) + 2 by connector + 4 by Pin header(backplane) ) |
| 6 x SATA II with Intel RAID 0,1,5 and 10 |
| 1 x IDE |
| 1 x KB ( by pin header ) |
| 1 x MS ( by pin header ) |
|
Digital I/O |
|
8-bit digital I/O, 4-bit input/ 4-bit output |
|
IrDA |
|
1 x IrDA by pin header |
| | |
|
Display Interface |
| |
VGA Intgrated in Intel Q965 |
|
Audio |
| |
7.1 channel HD Audio Kit with Realtek ALC883 support dual audio streams |
|
SSD |
| |
N/A |
|
Watchdog Timer |
|
Software programmable supports 1 ~255 sec. System reset |
|
Power Supply |
| |
ATX Power |
|
Power consumption |
| |
5V@5.32A, 12V@3.63A, 3.3V@ 4.8A(Intel?Core 2 Duo E6600 2.4GHz, 2GB 800MHz DDR2) |
|
Temperature |
| |
operation: 0°C ~ 60°C ( 32 ~ 140ºF) |
|
Humidity |
| |
operation: 5% ~95% non-condensing |
|
Dimensions |
| |
338 mm x 122 mm |
|
Weight |
| |
GW: 1200 g / NW: 474 g |
|
Super I/O |
|
ITE IT8712F | | |
| | |
Packing / Ordering Inf. |
| Packing List |

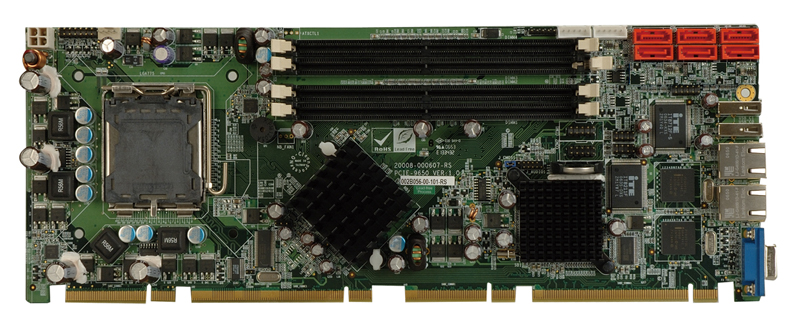

| 1 x PCIE-9650 Single Board Computer |
| 1 x Mini Jumper Pack |
| 1 x ATA 66/100 flat cable (P/N: 32200-000052-RS) |
| 6 x SATA cable (P/N: 32000-0628000-RS) |
| 3 x SATA Power cable (P/N: 32100-088600-RS) |
| 1 x Dual RS-232 cable (P/N: 19800-000051-RS) |
| 1 x KB/MS cable with Bracket (P/N:19800-000066-RS) |
| 1 x USB cable (P/N: CB-USB02-RS) |
| 1 x Utility CD |
| 1 x QIG | |
|
| Ordering Information |
| Part No. |
Description |
| PCIE-9650-R10 |
PICMG 1.3 LGA775 Intel Core 2 Quad CPU Card With VGA,Dual PCI-E GbE,SATA II and USB 2.0 |
| AC-KIT-883HD-R10 |
7.1 Channel HD Audio Kit with Realtek ALC883 support dual audio streams |
| 32000-000075-RS |
5-Pin wafer to PS/2 connector cable for keyboard or mouse |
| CB-USB14-RS |
4 ports USB cable |
| CF-520-RS |
CPU Cooler |
| CF-775A-RS |
CPU Cooler |
| SDVO-100VGA-R10 |
PCIe x16 VGA Output SDVO Card supports dual display (IEI CPU board only) |
| SDVO-100DVI-R10 |
PCIe x16 DVI Output SDVO Card supports dual display (IEI CPU board only) | | |
|
| |
 | |
| |
| |
|
