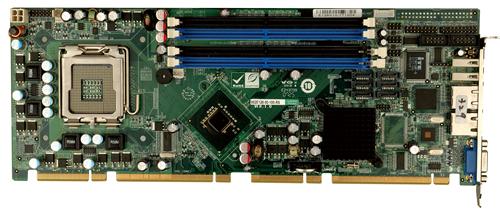

PICMG1.3 CPU Card supports 45nm Intel LGA 775 Core 2 Duo/Quad CPU at FSB800/1066/1333MHz, Intel?Q35 & ICH9-DO platform, Dual Intel GbE, SATAII with RAID 0,1,10,5 Functions, USB, HD Audio
|
|
| |
|
PICMG1.3 CPU Card supports 45nm Intel LGA 775 Core 2 Duo/Quad CPU
at FSB800/1066/1333MHz, Intel Q35 & ICH9-DO platform, Dual Intel GbE,
SATAII with RAID 0,1,10,5 Functions, USB, HD Audio |
Features
| |
1. PICMG1.3 and RoHS compliant
2. Supports Intel?45nm LGA775 Core 2 Duo/Quad processor
(Wofldale/Yorkfield) at FSB 1333/1066/800MHz
3. Intel Q35 & ICH9-DO Platform
4. 6 SATA Ports with Intel Matrix Storage Technology supported
5. Dual Intel PCIe GbE
6. TPM1.2 IT Security Solution Supported |
Specifications
| |
| CPU |
LGA775 45nm Intel Core 2 Quad(Yorkfield), Core? Duo(Wolfdale) , Core 2 Duo, Celeron at FSB800/1066/1333MHz processors
|
| System Chipset |
Intel Q35 + ICH9-DO
|
| BIOS |
AMI BIOS Label with 8MB SPI EEPROM
|
| System Memory |
4 x 240pin DIMM socket dual channel DDRII at 800/667MHz up to 8GB
|
| Ethernet |
Dual GbE
LAN1: Intel 82566DM (PHY)
LAN2: Intel 82573L(MAC + PHY)
|
| IO Interface |
2 x RS-232
12 x USB2.0 (2 on bracket, 6 on board by pin header, 4 on backplane by pin header)
6 x SATA II support RAID 0, 1, 10, 5
1 x 6-pin header on board for KB&MS
|
| Digital I/O |
8-bit Digital I/O, 4-bit input / 4-bit output
|
| IrDA |
1 x IrDA by pin header
|
| Audio |
10-pin header on board supports 7.1 channel HD Audio by IEI AC-KIT-883HD
|
| Graphic |
Analog VGA output
SDVO port
|
| TPM1.2 |
1 x 20-pin header on board for TPM (Trusted Platfom Module)
|
| Watchdog Timer |
Software Programmable supports 1~255sec. system reset
|
| Power Supply |
ATX
|
| Power Consumption |
3.3V-3.0A, 5V-5.1A, 5Vsb-0.28A, 12V-4.23A(2DMark 2001)
Intel Core 2 Duo E6700 2.66GHz at FSB1066, 8GB DDR2 667MHz, 3DMark 2001
|
| Temperature |
operation: 0 ~ 60oC (32 ~ 140oF)
|
| Humidity |
operation: 5% ~95% non-condensing
|
| Dimensions |
338mm x 126mm
|
| Weight |
GW:1.1kg
|
|
|
|
 |
| Ordering Information
 |
PCIE-Q350-R10 |
| |
PICMG1.3 CPU Card supports 45nm Intel LGA 775 Core 2 Duo/Quad CPU at FSB800/1066/1333MHz, Intel Q35 & ICH9-DO platform, Dual Intel GbE, SATAII with RAID 0,1,10,5 Functions, USB, HD Audio |
| |
AC-KIT-883HD-R10 |
| |
7.1 Channel HD Audio Kit with Realtek ALC883 supports dual audio streams |
| |
CF-520-RS |
| |
High Performance CPU Cooler (115mm x 115mm x 67mm, 115W) |
| |
32000-018302-RS |
| |
KB/MS cable with Mini DIM on bracket |
| |
TPM-IN01-R10 |
| |
Infineon 20-pin Trusted Platform Module with S/W Management Tool |
| |
TPM-SI01-R10 |
| |
Sinosun 20-pin Trusted Platform Module with S/W Management Tool |
| |
TPM-WI-1-R10 |
| |
Winbond 20-pin Trusted Platform Module with S/W Management Tool |
| |
SDVO-100VGA-R10 |
| |
PCIe x16 VGA Output SDVO Card supports dual display (IEI CPU board only) |
| |
SDVO-100DVI-R10 |
| |
PCIe x16 DVI Output SDVO Card supports dual display (IEI CPU board only) |
Packing List
| |
1*PCIE-Q350 single board computer |
| |
1*Mini jumper pack |
| |
6*SATA cable(P/N: 32000062800-RS) |
| |
3*SATA power cable(P/N: 32100-088600-RS) |
| |
1*Dual RS-232 cable(P/N:19800-000051-RS) |
| |
1*USB cable(P/N: CB-USB02-RS) |
| |
1*Utility CD |
| |
1*QIG | |
| |
| |
|
