 Low Power, High Performance Solution
|
|
|
|
CPU Support
- SOCKET CPU Type supports 400MHz FSB Pentium M / Celeron M CPU
- On Board Fanless CPU with Celeron M 1GHz zero cache CPU
Memory
DDR 266/200 MHz Memory supports better system and graphic performance
LAN
Dual GbE for better networking performance and redundancy GbE LAN applications.
Audio
Upgradeable 5.1 Channel audio Kit with ALC655 AC 97 codec | | |
|
|
| |
|
IEI PICOe Backplane Solution
Complete PICOe backplane solutions with fully support all kinds of chassis and power modes. PICOe is the easiest way to upgrade current system from slow ISA + PCI architecture to the latest high performance PCI-E+PCI solution.
|
CPU card on right side first slot |
|
PICOe
PCIe/PCI |
PCI |
PCIE |
PSU
type |
Note |
|
PCI |
x4 |
x1 |
|
HPE-3S1 |
2 |
|
|
ATX/AT |
CPU on R1st |
|
HPE-3S2 |
1 |
1 |
|
ATX/AT |
CPU on R1st |
|
HPE-4S1 |
3 |
|
|
ATX/AT |
CPU on R2st |
|
HPE-4S2 |
2 |
1 |
|
ATX/AT |
CPU on R2st |
|
HPE-5S1 |
4 |
|
|
ATX/AT |
CPU on R2st |
|
HPE-5S2 |
3 |
1 |
|
ATX/AT |
CPU on R2st |
|
HPE-5S3 |
2 |
0 |
2 |
ATX/AT |
CPU on R2st |
|
HPE-6S1 |
4 |
1 |
|
ATX/AT |
CPU on R1st |
|
HPE-6S2 |
3 |
0 |
2 |
ATX/AT |
CPU on R1st |
|
HPE-7S1 |
4 |
0 |
2 |
ATX/AT |
CPU on R2st |
|
HPE-8S0 |
4 |
0 |
2 |
ATX/AT |
Reserved 1 Slot | |
 | |
PCI/ PICOe Backplane Selection Guide
|
PAC series wall-mount Chassis |
|
4U Rack-mount Chassis |
|
2U Rack-mount Chassis | |
|
PCIe/PCI |
PCIe/
PCI |
HPE-3S1 |
HPE-3S2 |
HPE-4S1 |
HPE-4S2 |
HPE-5S1 |
HPE-5S2 |
HPE-5S3 |
HPE-6S1 |
HPE-6S2 |
HPE-7S1 |
HPE-8S0 |
|
Total Slot |
3 |
3 |
4 |
4 |
5 |
5 |
5 |
6 |
6 |
7 |
7 |
|
Expansion
Slots |
PCI |
2 |
1 |
3 |
2 |
4 |
3 |
2 |
4 |
3 |
4 |
4 |
|
PCIe |
x4 |
|
1 |
|
1 |
|
1 |
0 |
1 |
0 |
0 |
0 |
|
x1 |
|
|
|
|
|
|
2 |
|
2 |
2 |
2 |
|
PSU Type |
|
|
|
|
|
|
|
|
|
|
|
|
Chassis |
PR-1300G |
PR-1300G |
PAC-42GH
|
PAC-42GH |
PR-1500G
|
PR-1500G
|
PR-1500G
|
|
|
PAC-700G
PAC-400G
|
RACK-3400G
PAC-400G |
|
Note |
|
|
|
|
|
|
|
|
|
|
| | |
|
|
|
Fully compatible with all PICMG 1.0 half-size PCI card and PICOe SBC |
|
| Order Information |
| HPE-3S1-R10 |
3 Slot Backplane with 2 PCI Bus |
| PAC-53GH |
3 Slot Half Size Industrial Chassis |
| PR-1300G |
3 Slot Half Size Industrial Chassis | |
| Order Information |
| HPE-3S2-R10 |
3 Slot Backplane with 2 PCI Bus |
| PAC-53GH |
3 Slot Half Size Industrial Chassis |
| PR-1300G |
3 Slot Half Size Industrial Chassis | |
|
| Order Information |
| HPE-4S1-R10 |
4 Slot Backplane with 3 PCI Bus |
| PAC-400G |
4 Slot Half Size Industrial Chassis |
| PAC-42GH |
4 Slot Half Size Industrial Chassis |
| PAC-42GF |
4 Slot Half Size Industrial Chassis | |
| Order Information |
| HPE-4S1-R10 |
4 Slot Backplane with 2 PCI and 1 PCIex4 Bus |
| PAC-400G |
4 Slot Half Size Industrial Chassis |
| PAC-42GH |
4 Slot Half Size Industrial Chassis |
| PAC-42GF |
4 Slot Half Size Industrial Chassis | |
|
| Order Information |
| HPE-5S1-R10 |
5 Slot Backplane with 4 PCI Bus |
| PR-1500G |
4 Slot Half Size Industrial Chassis |
| RACK-500G |
5 Slots Full Size Industrial Chassis | |
| Order Information |
| HPE-5S2-R10 |
5 Slot Backplane with 3 PCI and 1 PCIex4 Bus |
| PR-1500G |
4 Slot Half Size Industrial Chassis |
| RACK-500G |
5 Slots Full Size Industrial Chassis | |
|
| Order Information |
| HPE-5S3-R10 |
5 Slot Backplane with 2 PCI and 2 PCIex4 Bus |
| PR-1500G |
4 Slot Half Size Industrial Chassis |
| RACK-500G |
5 Slots Full Size Industrial Chassis | |
| Order Information |
| HPE-6S1-R10 |
6 Slot Backplane with 4 PCI and 1 PCIex4 Bus |
| PAC-52G |
6 Slot Half Size Industrial Chassis | |
|
| Order Information |
| HPE-6S1-R10 |
6 Slot Backplane with 3 PCI and 2 PCIex1 Bus |
| PAC-52G |
6 Slot Half Size Industrial Chassis | |
| Order Information |
| HPE-7S-R10 |
7 Slot Backplane with 4 PCI Bus and 2 PCIe x1 |
| PAC-700G |
7 Slot Half Size Industrial Chassis |
| PAC-1700G |
7 Slot Full Size Industrial Chassis |
| RACK-3400G |
10 Slots Half Size Industrial Chassis |
| RACK-900G |
10 Slots Full Size Industrial Chassis | |
| Order Information |
| HPE-8S0-R10 |
7 Slot Backplane with 4 PCI Bus and 2 PCIe x1 |
| PACK-125G |
10 Slot Full Size Industrial Chassis |
| RACK-900G |
10 Slots Full Size Industrial Chassis | | |
| |
|
|
Specification
|
|
CPU
Socket 479 IntelR PentiumR M/Celeron M with 400 MHz FSB up to 2.10GHz
System Chipset
IntelR 852GM + ICH4 BIOS AMI
BIOS
AMI BIOS
System Memory
1 x 184-pin DDR 266/200MHz up to 1GB
Ethernet
Dual RTL8110SC for GbE
I/O
I/O Interface
2 x RS232
5 x USB 2.0
2 x IDE
1 X FDD
1 x LPT
1 x PS/2 keyboard/mouse
Expansion ( By Backplane Support )
4 PCI Master
Digital I/O
8 bit digital I/O, 4 input / 4 output |
Super I/O
W83627EHG
Audio
5.1 Channel Audio Kit with Realtek ALC655
SSD
CFII
Display
CRT integrated in 852GM
LVDS
Dual channel 18- bit LVDS
Watchdog Timer
Software programmable supports 1~255 sec. System reset reset
Power Supply
5V/+12V& -12V, AT/ATX support
Power Consumption
+5V@4.64 (CeleronR M 1.6G/DDR333 1G);
+5V@2.78 (CeleronR M 800M/DDR333 1G)-3D Mark
Temperature
operation: 0 ~ 60¡ã C (32 ~ 140¡ã F)
Humidity
operation: 5% ~ 95% non-condensing
Dimension
185mm x 122mm
Weight
GW: 1.0Kg | |
| |
|
Packing List
|
|
|

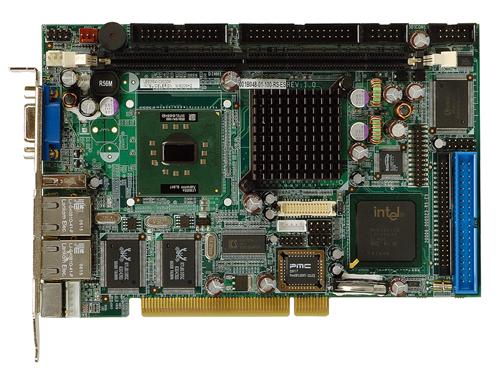

| 1 x PICO-8522 single board computer |
1 x USB cable (P/N:CB-USB02-RS) |
| 1 x Mini jumper pack |
1 x IO-Kit-001-RS-R20 (DVI only) |
| 1 x ATA66/100 flat cable (P/N: 32200-000052-RS) |
1 x Utility CD |
| 1 x KB/MS Y cable (P/N:32000-000138-RS) |
1 x QIG |
| 1 x Dual RS232 cable ((P/N: 19800-000051-RS) |
| | |
|
Ordering Information
|
| Part No. |
Description |
| PICO-8522-R10 |
PCI CPU Card IntelR PentiumR M/ CeleronR M FSB533MHz with CRT/ LCD, Dual GbE, and USB2.0 |
| PICO-8522-1GZ-R10 |
PCI CPU Card IntelR CeleronR M 1GHz/ none cache with CRT/ LCD, Dual GbE, and USB2.0 |
| PICO-8522DVI-R10 |
PCI CPU Card IntelR PentiumR M/ CeleronR M FSB533MHz with CRT/ LCD, Dual GbE, USB2.0, and DVI function. |
| PICO-8522DVI-1GZ-R10 |
PCI CPU Card IntelR CeleronR M 1GHz/ none cache with CRT/ LCD, Dual GbE, USB2.0, and DVI function. |
| AC-KIT08R-R10 |
5.1 Channel Audio Kit with Realtek ALC655 |
| 32200-000017-RS |
FDD cable |
| 19800-000049-RS |
LPT cable | |
| |
|
