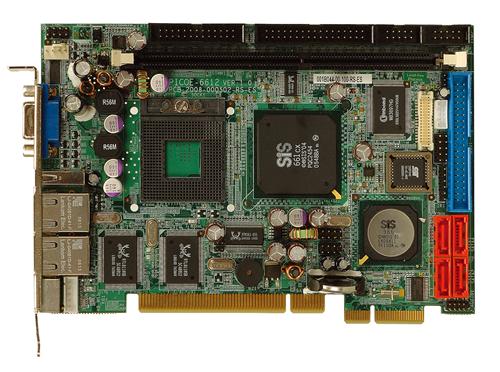

PICOe-6612LVDS

Socket-479 PCIe CPU Card Intel Pentium M/ Celeron M FSB400/533 MHz with VGA/ LVDS, Dual GbE, USB2.0, SATA and Audio


 PICOe CPU Card

The Advantage of PICOe

  • PICOe = PCI + PCI-E x4
    Great IO Bus Bandwidth & Performance of PCI-E
    Backward Compatible with Half-Size PCI CPU Card
    Various Backplane Selections with PCI-E

The Benefit of PICOe

  • 1. Same dimension, Backward Compatible as half-size PCI SBC
  • 2. Higher Performance as PCI only solution
  • 3. More Configuration with PCI-E add on cards


I. Increasing IO Bus bandwidth with leading technology

Specification
ISA
PCI 33
PCI-E x4
BUS support
(16MB/s)
(132MB/s)
(1250MB/s)

II. Backward Compatible to Half-Size PCI backplane and chassis

  • Dimension:185mm x 122 mm = All Half-sized CPU Card Share the same Chassis & I/O design
  • PCI pin definition same to PICMG 1.0 PCI = All Half-sized PCI CPU Card Share All Half-sized PCI Backplane
  • Four PCI Slots + One PCI-E x4 or Four PCI-E X1 More Configuration in your backplane with PCI or PCI-E Slot


IEI PICOe Backplane Solution

Complete PICOe backplane solutions with fully support all kinds of chassis and power modes. PICOe is the easiest way to upgrade current system from slow ISA + PCI architecture to the latest high performance PCI-E+PCI solution.

CPU card on right side first slot
PICOe
PCIe/PCI
PCI
PCIE
PSU
type
Note
PCI
x4
x1
HPE-3S1
2
ATX/AT
CPU on R1st
HPE-3S2
1
1
ATX/AT
CPU on R1st
HPE-4S1
3
ATX/AT
CPU on R2st
HPE-4S2
2
1
ATX/AT
CPU on R2st
HPE-5S1
4
ATX/AT
CPU on R2st
HPE-5S2
3
1
ATX/AT
CPU on R2st
HPE-5S3
2
0
2
ATX/AT
CPU on R2st
HPE-6S1
4
1
ATX/AT
CPU on R1st
HPE-6S2
3
0
2
ATX/AT
CPU on R1st
HPE-7S1
4
0
2
ATX/AT
CPU on R2st
HPE-8S0
4
0
2
ATX/AT
Reserved 1 Slot
PCI/ PICOe Backplane Selection Guide
PAC series wall-mount Chassis 4U Rack-mount Chassis 2U Rack-mount Chassis
PCIe/PCI
PCIe/
PCI
HPE-3S1
HPE-3S2
HPE-4S1
HPE-4S2
HPE-5S1
HPE-5S2
HPE-5S3
HPE-6S1
HPE-6S2
HPE-7S1
HPE-8S0
Total Slot
3
3
4
4
5
5
5
6
6
7
7
Expansion
Slots
PCI
2
1
3
2
4
3
2
4
3
4
4
PCIe
x4
1
1
1
0
1
0
0
0
x1
2
2
2
2
PSU Type

Chassis
PR-1300G
PR-1300G
PAC-42GH
PAC-42GH
PR-1500G
PR-1500G
PR-1500G

PAC-700G
PAC-400G
RACK-3400G
PAC-400G
Note



Fully compatible with all PICMG 1.0 half-size PCI card and PICOe SBC

Order Information
HPE-3S1-R10 3 Slot Backplane with 2 PCI Bus
PR-1300G 3 Slot Half Size Industrial Chassis

Order Information
HPE-3S2-R10 3 Slot Backplane with 2 PCI Bus
PR-1300G 3 Slot Half Size Industrial Chassis

Order Information
HPE-4S1-R10 4 Slot Backplane with 3 PCI Bus
PAC-42GH 4 Slot Half Size Industrial Chassis

Order Information
HPE-4S1-R10 4 Slot Backplane with 2 PCI and 1 PCIex4 Bus
PAC-42GH 4 Slot Half Size Industrial Chassis

Order Information
HPE-5S1-R10 5 Slot Backplane with 4 PCI Bus
PR-1500G 4 Slot Half Size Industrial Chassis
PAC-400G 5 Slots Compact Chassis

Order Information
HPE-5S2-R10 5 Slot Backplane with 3 PCI and 1 PCIex4 Bus
PR-1500G 4 Slot Half Size Industrial Chassis
PAC-400G 5 Slots Compact Chassis

Order Information
HPE-5S3-R10 5 Slot Backplane with 2 PCI and 2 PCIex4 Bus
PR-1500G 4 Slot Half Size Industrial Chassis

Order Information
HPE-6S1-R10 6 Slot Backplane with 4 PCI and 1 PCIex4 Bus

Order Information
HPE-6S1-R10 6 Slot Backplane with 3 PCI and 2 PCIex1 Bus

Order Information
HPE-7S-R10 7 Slot Backplane with 4 PCI Bus and 2 PCIe x1
PAC-700G 7 Slot Half Size Industrial Chassis
Order Information
HPE-8S0-R10 7 Slot Backplane with 4 PCI Bus and 2 PCIe x1
RACK-3400G 4U 10 Slots Full Size Rackmount Chassis



 Specification

CPU
  Socket 479 Intel Pentium M/Celeron M support 400/533 MHz FSB up to 2.26GHz
System Chipset
  SIS 661CX + SIS 966
BIOS
  AMI BIOS
System Memory
  1 x 184-pin DDR 400/333MHz up to 1GB
Ethernet
  Dual RTL8110S for GbE
I/O
  I/O Interface
2 x RS232
5 x USB 2.0,
1 x IDE
1 x FDD
1 x LPT
1 x CFII
4 x SATA-150 with RAID 0,1 function support
1 x PS2 for keyboard/mouse
Expansion ( By Backplane Support )
4 x PCI Master
2 x PCIe x1
Digital I/O
  8 bit digital I/O, 4 input / 4 output
Super I/O
  W83697HG
Audio
  5.1 Channel Audio Kit with Realtek ALC655
Display
  CRT integrated in SIS 661CX
LVDS
Dual channel 24 bit LVDS
Watchdog Timer
  Software programmable supports 1~255 sec. System reset reset
Power Supply
  5V/+12V& -12V, AT/ATX support
Power Consumption
  +5V @ 6.59 A, +12V @0.12 A (IntelR PentiumR M 2.13G/2M/533 CPU with 1GB DDR 400MHz)
Temperature
  operation: 0 ~ 60¡ã C (32 ~ 140¡ã F)
Humidity
  operation: 5% ~ 95% non-condensing
Dimension
  185mm x 122 mm
Weight
  GW: 1.0Kg


 Packing List

1 x PICOe-6612 single board computer 1 x Dual RS232 cable (P/N: 19800-000051-RS)
1 x Mini jumper pack 1 x KB/MS Y cable (P/N:32000-000138-RS)
1 x ATA66/100 flat cable (P/N: 32200-000052-RS) 1 x Utility CD
2 x SATA cable (P/N: 32000-062800-RS) 1 x QIG
1 x SATA Power cable (P/N: 32100-088600-RS)


 Ordering Information

Part No. Description
PICOe-6612-R10 PCIe CPU Card Intel Pentium M/ Celeron M FSB533 MHz with CRT/ LCD, Dual LAN, USB2.0, and SATA
PICOe-6612LVDS-R10 PCIe CPU Card Intel Pentium M/ Celeron M FSB533 MHz with CRT/ LCD, Dual LAN, USB2.0, SATA , and LVDS
CB-USB02-RS USB cable
AC-KIT08R-R10 5.1 Channel Audio Kit with Realtek ALC655
32200-000017-RS FDD cable
19800-000049-RS LPT cable
