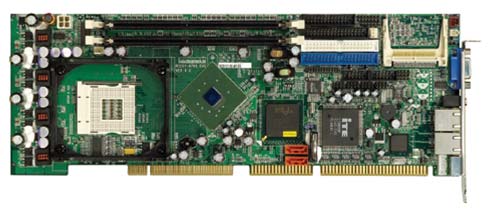

Pentium 4 SBC for RoHS Solution Ready !!

Features

- Intel P4 / Prescott / Celeron CPU supports up to FSB 800MHz - Intel Extreme Graphic II integrated graphic engine - Dual channel DDR400 SDRAM memory support - LAN, SATA, USB 2.0, Audio integrated - Optional RAID function available

Specifications

CPU Socket Socket-478  CPU Type Intel Pentium 4/ Prescott/ Celeron  FSB 533/800 MHz  Chipset Intel 865GV + ICH 5 /ICH5R (ROCKY-4786EVGR) Memory Dual channel DDR 333/400 SDRAM up to 2GB  Graphic Integrated with Intel 865G/GV  Bus:AGP 4X/8X  Ethernet 1st 10/100Mbps i82562ET Fast Ethernet controller (ROCKY-4786EV)  2nd 82547 GbE controller (ROCKY-4786EVG/EVGR/EVGL)  I/O Interface 2 x RS-232 serial ports  1 x PS/2 for Keyboard/Mouse  1 x LPT (SPP/EPP/ECP) 8 x USB 2.0 ports  1 x IrDA  Driver Interface 2 x IDE ATA-100/66/33  2 x SATA-150 , RAID Function (EVGR) 1 x FDD  Audio AC'97 Codec  SSD CF Type II  Power Consumption +12V@7.52A, +5V@6.98A, -12V@0.5A (P4 3.0GHz, Dual channel DDR400 512MB SDRAM) Watchdog Timer Software programmable supports 1 ~ 255 seconds system reset  Hardware Monitor CPU Vcore, Vcc, CPU/System fan speed and temperature detecting function  Operation Environment Temperation Range 0 ~ 60ºC  Relative Humidity 5 ~ 95%, non-condensing  GW 1.1kg

Ordering Information

Packing List 1 x ROCKY-4786 single board computer 1 x POWER CABLE (P/N:32100-087100-RS) 1 x Mini jumper pack 1 x RS-232 cable(2 COM Ports) : (P/N: 19800-000051-RS) 2 x SATA cable (P/N: 32000-062800-RS) 1 x USB cable (P/N: CB-USB02-RS) 1 x SATA power cable (P/N: 32100-088600-RS) 1x Utility CD 1 x Keyboard/ PS2 mouse Y cable (P/N: 32000-000138-RS) 1 x QIG 1 x HDD CABLE (P/N:32200-000052-RS)

Ordering Information Part No. Description ROCKY-4786EV-RS-R40 PICMG Socket-478 800MHz FSB Based CPU card with VGA, LAN, S-ATA, USB 2.0 & Audio ROCKY-4786EVG-RS-R40 PICMG Socket-478 800MHz FSB Based CPU card with VGA, LAN, GbE, S-ATA, USB 2.0 & Audio 32200-000017-RS FDD cable 32200-000049-RS LPT cable
