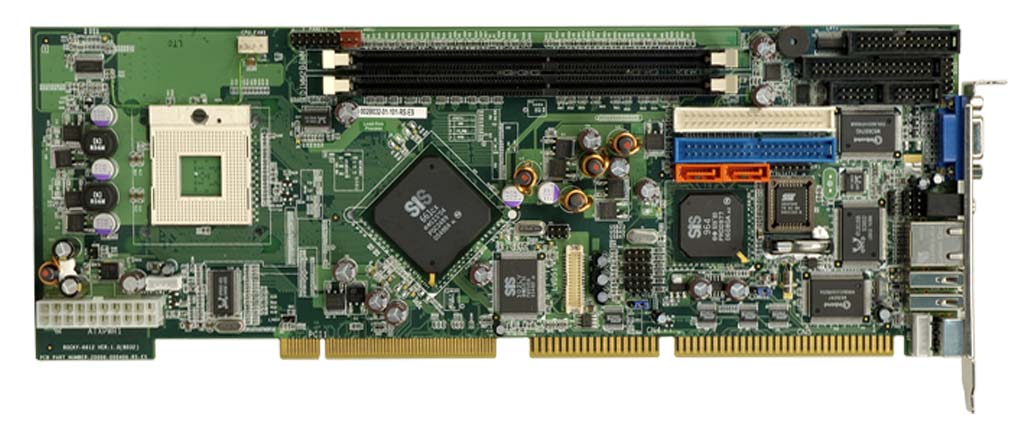

ROCKY-6612

PICMG 1.0 Socket-479 533MHz FSB CPU board with LVDS, USB and SATA RAID function support



ROCKY-6612 Features:
  Low Power, High performance in Pentium M socket 479 architecture
    Intel Pentium® M 533/400 MHz CPU upto 2.26 GHz  and DDR 400/333 MHz upto 2 GB support
  Low Thermal in CPU and Board area
    Whether viewed from the front or rear side, the ROCKY-6612 runs with reduced temp differences, and hence is more reliable.
  Low Profile design
    1U Socket/Fanless CPU Cooler in 1U chassis
  Compact Chassis Application
  Dual Channel LVDS Support
    Dual Channel LVDS 18/24 bit Support
  Complete all on one solution
    All in one solution with 2 x IDE, 2 x SATA, 2 x COM, 8 x USB 2.0, LPT, and FDD integrated.
  RAID Protection
    Dual SATA HDD RAID function & RAID administration software tool support
  Vibration free SATA connect
    Vibration free, lockable SATA connectors are available in both the ROCKY-6612
  IEI BIOS Features
    Soul of Board
  Green Product
    RoHS Compliance




Cost Effective in Pentium M

Pentium M FSB 533

The Intel Pentium M Processor with 533-MHz front side bus (FSB) is the next generation high performance, low-power mobile processor based on the Pentium M Processor architecture.

All instances of the Pentium M Processor in this document refer to the Pentium M Processor with 2-MB L2 cache and 533-MHz front side bus unless stated otherwise.

  New Intel Pentium M Solution ROCKY-6612
CPU Host Interface
Supports Intel Pentium M CPU with FSB 533/400
  SiS Mirage™ Graphic EngineSiS Mirage Graphic Engine
Powered by SiS Mirage Graphic Engine. Microsoft DirectX 7.0 H/W and Microsoft DirectX 9.0 S/W compliant.
  DDR Single Channel Memory Architecture
Single channel DDR memory architecture. Offers the maximum 3.2GB/s (DDR400).
  Ultra-AGPII Ultra-AGPII Technology
The Ultra-AGPII provides faster communication and up to 3.2GB/s transmission bandwidth between the built-in graphic engine and the northbridge memory controller.

  Compatible CPU :

Processor
Intel Pentium M Processor
Processor Number

780, 778, 770, 765, 760, 758, 755
753, 750, 745, 740, 738, 735, 733J,
733, 730, 725, 723, 718, 715, 713

Architecture
90 nm, 130 nm process
technology
L2 Cache
2MB, 1MB
Clock Speed
1.50 to 2.26 GHz
Clock Speed--Low Volt
1.30 to 1.60 GHz
Clock Speed--Ultra Low Volt
1 to 1.20 GHz
Front Side Bus
533 or 400 MHz

  Pentium M 533 Performance

ROCKY-6612_P-M_CPU Configuration
Model
IEI-ROCKY-M6610 Ver0.1
Workstation
2
CPU Type
P-M 2.0/2M/533 (760)
RAM Module
ADATA DDR400 1Gx2
HDD Type
WD 80G  (IDE)
DVD ROM
SONY DVD 16X
Featuring
Architectur
Cache
Clock
Front Side
Intel Pentium M
processor 760
90 nm
2MB L2
2 GHz
533MHz
Intel Pentium M
processor 755
90 nm
2MB L2
2 GHz

400MHz


  Performance Comparison FSB 400 VS. FSB 533

Whetstone FPU/SSE 2649 MFLOPS
Whetstone FPU/SSE 3564 MFLOPS
Dhrystone ALU (FSB 400) 5539 MIPS
Dhrystone ALU (FSB 533) 8198 MIPS


Equivalence models


  WSB-9152_150 ROCKY-6612_150
WSB-9152
ROCKY-6612
Pxx-6189
FSB Speed 533/400 MHz 533/400 MHz 400 MHz
Max Memory 2 GB DDRII 2 GB DDR Memory 2 GB DDR Memory
Memory Type DDR2 533/400 DDR 400/333 DDR 266/200
Memory Dual Channel Single Channel Single Channel
Integrated Graphics Intel GMA 900 SiS Mirage Graphic Engine Dynamic Video Memory Technology
Max Panel Display LVDS LVDS LVDS
IDE / ATA ATA 100 (1 Ch.) ATA 100 (2 Ch.), ATA 66/100
SATA 150 (2 Ports) SATA 300 SATA 150 (2 Ports) N/A
RAID Function RAID 0,1 RAID 0,1 N/A
USB 7 Ports USB 2.0 8 Ports USB 2.0 3 or 4 ports USB 2.0/1.1
LAN Dual PCI GbE 10/100 Base
Supported ICH ICH6-M SiS 964 ICH4-M


WSB-9152_250
WSB-9152
High Level Intel Pentium® M CPU solution
ROCKY-6612
Entry Level Intel Pentium M CPU solution
RoHS, Pentium® M 533 MHz with upgradeable SATA II RAID 0,1 protection function   RoHS, PICMG 1.0 Socket 479 533MHz FSB CPU board with LVDS, SATA,USB


Low Thermal in CPU and Board area

Software Test Programs & Tools
3Dmark 2001 build 330 (Loading Test for Windows)
TVS Viewer 3
TAS Thermal Analysis Utility
Infrared thermography is equipment or method, which detects infrared energy emitted from object, converts it to temperature, and displays image of temperature distribution
  Whether viewed from the front or rear side, the ROCKY-6612 runs with reduced temp differences, and hence is more reliable.

  LOW POWER CPU

Intel EID long term support Pentium M low power CPU list

Processor Brand Name  (PGA)
Processors
FSB (MHz)
L2 Cache (k)
TDP (max)
Core Vcc
T case ¡ãC
Intel® Pentium® M processor 760
Pentium M 2.0GHz
533
2M
27W
1.26-1.356V
0-100
Intel® Pentium® M processor 745
Pentium M 1.8GHz
400
2M
21W
1.276-1.340
0-100
Intel® Pentium® M processor 1.6 GHz
Pentium 1.6GHz
400
1M
24.5w
1.484V
0-100
Mobile Intel® Celeron® processor 1.2 GHz
Mobile Celeron 1.2 GHz
400
256K
20.8W
1.3V
0-100
Mobile Intel® Celeron® processor 1.2 GHz
Mobile Celeron 1.2 GHz
400
256K
20.8W
1.3V
0-100


Low Profile design

1U Socket/Fanless CPU Cooler in 1U chassis

Compact CPU cooler design CF-479B-RS
Socket 479 1U CPU Cooler
Compact CPU cooler design
•Cooler:50x50x26(mm)
•Heat Sink:50x50x16(mm)
•Fan:50x50x10(mm)
•(mounting kit:41x41mm)
•Heat Sink Material: Aluminum
•Capability:0.75¡æ/W(P4-M up to 50W)
•Bearing Type: Two ball
•Rated Voltage:12 VDC
•Fan Speed:6000 RPM
•Air Flow:14.237 CFM
•Air Pressure:6.160mmH2O
•Noise Level:39 dB
•Life Expectance:40,000 hrs
•Weight:86g

Fanless !!! 1 U Chassis Application 1 U Chassis Application
ROCKY-6612_Heat Sink_S

Low profile design with low thermal fanless onboard CPU designing to meet 1U height !

1 U Chassis Application_2
•Heat Sink:50x50x15(mm)
•(mounting kit:41x41mm)
•Heat Sink Material: Aluminum

  Compact Chassis Application


PAC-42GF
4-slot Full-size chassis

Feature:
• RoHS compliant design
• 2 x USB ports on front panel
• 1 x front-accessible 3.5¡± with 2 x 2.5¡± HDD or 2 x 3.5¡± HDD drive capacity
• Hot-replaceable 8 cm cooling fan

ACE-4518AP-RS
Feature:
* 100% Meet RoHS Compliance
* High efficiency over 82%
* Full functional over voltage / current protection
* Complies with Flex ATX and ATX12V standard
* Multiple safety / EMC certificated
PAC-42GF_1_01
Front View
PAC-42GF_1_02
Rear View
From CPU Board to chassis and PSU, only IEI can provide total RoHS solution together !!!



Complete IO/ LCD Support, Complete all on one solution



RAID Protection
  Dual SATA HDD RAID function support
  ROCKY-6612 integrates 2 SATA ports with RAID 0,1 function support which provide better performance and data protection to systems.
Testing Result 1
Testing Result 2
HD Tach Average Read Speed MB/s
SATA
RAID0
RAID1
54.5
104.4
54.2
Redundancy
NO
NO
Yes
When looking for a system designed for digital data protection, performance increasing, be sure to look for IEI reliable technology ready products.


  RAID administration software tool



Vibration free SATA connect
  Lockable SATA connectors Vibration free, lockable SATA connectors are available in both the ROCKY-6610 and ROCKY-6614 models
Retention latches on SATA connectors protect SATA drive connections from vibrations and accidental impacts.
  It's Easier

Parallel ATA Serial ATA SATA Advantage
Up to 133 Mb/sec Up to 150 Mb/sec (1.5Gb/sec) Faster, and room for expansion
Tiny Jumpers No Master/Slave, Point to Point Easy of use
18" cable Up to 39" (1 meter) cable Easy of integration
2"-wide ribbon cable Thin cable (1/4") Improved system airflow
80 conductors 7-wire differential (noise canceling) Eliminates data integrity problems
40 pin and socket Blade and Beam connector (snap in) Easy of use
2"-wide data connector 1/2"-wide data connector Ease of integration
Onboard DMA controller First-party DMA support Performance enhancement
High 5V tolerance for legacy drives Low voltage (.25V) tolerance Design improvement
Limited
(legacy command queuing)
Intelligent Data Handling Performance enhancement
--------- Hot Swap Ease of integration
CRC on data only Cyclic Redundancy Check on data, command, status Enhance data protection



IEI BIOS Features (Soul of Board)
  A complete set of trustworthy applications that recover, secure or access important data in the IEI integrated BIOS and Product Quality Verification process.
  i. Pre-Boot Execution Environment
    1. Boots diskless systems, such as thin clients and dedicated systems.
2. Deploys software and OS for new systems.
3. Automates systems maintenance, such as backups.
4. Lowers maintenance fee with a central recovery system with no on site requirement.
    IEI_BIOS1_500
  ii. Console Redirection
    Console redirection allows you to maintain a system from a remote location by re-directing keyboard input and text output through the serial port.
    IEI_BIOS2_500
  iii. User Data Storage area
    System Management BIOS (SMBIOS) / Desktop management Interface (DMI) - Allows manufacturers to develop structures to access attributes that are known by the system BIOS. You can use it as:
1: Customizing OEM data and series number for system information track.
2: Software and hardware Bundling to protect your development.

  iv. OEM Logo Display Function
    Ability to enable or disable display Customize EPA or OEM Logo to enhance your extra brand value.
    IEI_BIOS
  v. Boot from USB Removable Device
    Support for replacing, repairing, or recovering data from damaged hard drive image. With boot-to-USB enabled, the end user has the option to run diagnostic utilities and debug damaged internal system devices through USB-bootable device.



RoHS Compliance
  IEI is committed to compliance with all applicable laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) in electrical and electronic products. The goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. With IEI ' s new lead free production, all customers can start to work for their long term projects without worry about the RoHS regulation.



ROCKY-6612 Specification

CPU
Intel® CPU Pentiuml® M / Celeronl® M support 533/400 MHz FSB up to 2.26Ghz
System Chipset
SiS 661CX + SiS 964
BIOS
AMI Flash BIOS
SMIBIOS (DMI) compliant
Console redirection function support
PXE (Pre-Boot Execution Environment) support
USB booting support
System Memory
2 x DDR 184-pin sockets of 400/333MHz DDR SDRAM up to 2GHz
Ethernet
Realtek RTL8110S GbE
I/O
2 x RS-232 by 2 x 5 pin header
1 x LPT by 2 x 13 pin header
1 x IrDA by 1 x 5 pin header
8 x USB 2.0 / 6 by 2 x 4 pin header
2 x SATA-150 connectors
2 x ATA-100 Channel
1 x FDD by 2 x 17 Pin header
1 x PS2 Keyboard / Mouse
2 x 5 Pin header for 4 input / 4 output GPIO
Super I/O
Winbond W83697HG
Audio
AC ¡¯97 codec
Display
CRT integrated in SiS 661CX,support Dual 24-Bit LVDS for Dual Display
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Power Supply
4 pin ATX 12V, AT/ATX support
Power Consumption
+5V @ 6.59 A, +12V @0.12 A (Intel Pentium M 2.13G/2M/533, 2GB DDR 400)
Temperature
operation: 0 ~ 60º (32 ~ 140ºF)
Humidity
operation: 5% ~ 95% non-condensing
Dimension
380(W)mm x 133(L)mm
Weight
GW: 1.1Kg

ROCKY-6612 Ordering Information

Packing List
1 x ROCKY-6612 single board computer
1 x Keyboard/ PS2 mouse Y cable
(P/N: 32000-000138-RS)
1 x Mini jumper pack
1 x RS-232 cable
(P/N: 19800-000051-RS)
1 x ATA 66/100 flat cable
(P/N: 32200-000052-RS)
1 x USB cable
(P/N: CB-USB02-RS)
2 x SATA cable(for ROCKY-6610 only)
(P/N: 32000-062800-RS)
1 x Utility CD
1 x SATA power cable
(P/N: 32100-088600-RS)
1 x QIG
(quick installation guide)


Ordering Information
Part No.
Description
ROCKY-6612-R10
PICMG 1.0 Socket 479 Intel Pentium M/Celeron M FSB533Mhz CPU Card with VGA, GbE, Audio and SATA
ROCKY-6612LVDS-R10 PICMG 1.0 Socket 479 Intel Pentium M/Celeron M FSB533Mhz CPU Card with VGA, LVDS, GbE, Audio and SATA
ROCKY-6612-800Z-R10 PICMG 1.0 ULV Intel Celeron M 800 zero cache CPU Card with VGA, GbE, Audio and SATA
ROCKY-6612LVDS-800Z-R10
PICMG 1.0 ULV Intel Celeron M 800 zero cache CPU Card with VGA, LVDS, GbE, Audio and SATA
CF-518-RS Socket 479 type CPU Cooler
32200-000017-RS FDD cable
19800-000049-RS LPT cable
