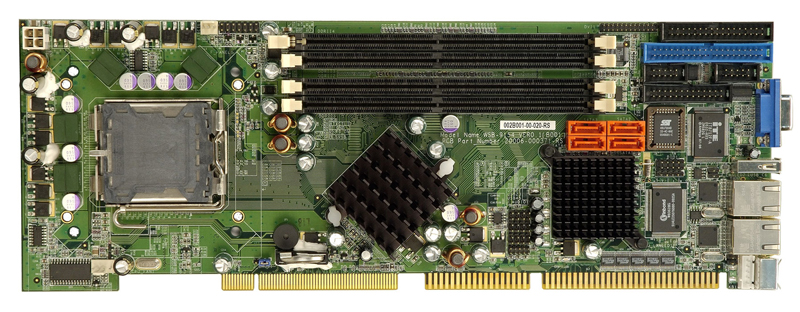

WSB-9154

PICMG 1.0 Pentium® 4 LGA775 800MHz FSB CPU Card with VGA,PCI-Express GbE, SATA, and USB2.0



1. Low Power, Low Thermal in Pentium® 4 LGA 775 architecture
A Intel® Pentium® 4 LGA775 architecture designed with concerns for power consumption and heat dissipation.

2. Double buffer size performance
LGA775 up to 3.8GHz Pentium® 4/ Celeron® D with 4 x DDRII memory up to 4GHz.

3. Real GbE LAN
Dual high performance PCI Express Gigabit Ethernet controller 145% more bandwidth than PCI bus GbE.

4. Green Product
RoHS Compliance




Low Power, Low Thermal in Pentium® 4 LGA 775 architecture
Low Power Consumption
  The innovative WSB-9154 board design can efficiently moderate the escalating power problem without performance tradeoffs.  The excellent design will be your best bet.

CPU Type
P4-3.4G/2M/800
RAM Module
Kingston DDR533 1GB x 2
HDD Type
WD 80G  (IDE)
DVD ROM
BENQ DVD 16X

Test Environment
3D MARK
+5V
3D MARK
+12V
Power Consumption
Power Difference
IEI- WSB-9150
( P4-3.2G/512K/800(HT)
5.6
5.89
99.03
-9.13W
IEI- WSB-9154
5.72
6.63
108.16
PXXX-760
4.76
8.11
121.12
+12.96 W
PXX-6190G2
5.72
7.97
124.24
+16.08 W
FXX-866G
7.1
9.72
152.14
+43.98 W
+5V/+12V 10minutes in ¨€ 25¡æ  ¡õ 65¡æ   ¡õOther:       ¡æ

The benefits of a board which consumes less power

•More stable system operation

•Lower heat dissipation working environment

•Utility maintenance saving

•Longer product life



Low Thermal




Double buffer size performance
  Upgrading Performance
  LGA 775 CPU Architecture


Better and Even Better!
Better performance in WSB-9154 brought by a CPU upgrade

Model   Workstation
WSB-9154 CPU Type P4-3.4G/2M/800 (LGA 775 HT) RAM Module Kingston DDRII533 1Gx2
WSB-9150 CPU Type P4-3.2G/512K/800 (Socket 478 HT) RAM Module Transcend DDR400 1Gx2
HDD Type WD 80G  (IDE) DVD ROM BENQ DVD 16X


LGA775 Mainstream LGA 775 CPU deliver upgrade performance across usages¡ªsuch as image processing, video content creation, games and multimedia¡ªwhere end-users can truly appreciate the performance


SISoft Sandra Standard
Function Item Score
1.CPU Dhrystone ALU 10072 MIPS
2.CPU-Media Integer X 4 iSSE 24348 IT/s
SISoft Sandra Standard
Function Item Score
1.CPU Dhrystone ALU 9779 MIPS
2.CPU-Media Integer X 4 iSSE 24214 IT/s



  4 slots DDR II Memory
    Main Features
    New Memory Architecture
This new design includes wider internal data buses that support dual-channel DDR2 memory technology at 667 MHz (up to 10.7 GB/s of peak memory bandwidth) for greater platform performance and memory flexibility.


DDR2-slot
Up to 60% increase in memory bandwidth


Model Workstation
WSB-9154 CPU Type P4-3.4G/2M/800 (LGA 775 HT) RAM Module Kingston DDRII533 1Gx2
WSB-9150 CPU Type P4-3.2G/512K/800 (Socket 478 HT) RAM Module Transcend DDR400 1Gx2
HDD Type WD 80G  (IDE) DVD ROM BENQ DVD 16X


DDR V.S. DDR2 Comparison
Feature/Option
DDR
DDRII
Data Transfer Rate
266,333,400 MHz
400,533,667,800 MHz
Package
TSOP and FBGA
FBGA only
Operating Voltage
2.5V
1.8V
I/O Voltage
2.5V
1.8V
I/O Type
SSTL_2
SSTL_18
Densities
64Mb-1Gb
256Mb-4Gb
Internal Banks
4
4 and 8
Prefetch
(MIN Write Burst)
2
4
CAS Latency(CL)
2, 2.5, 3 clicks
3, 4, 5 clocks
Additive Latency(AL)
no
0, 1, 2, 3, 4 clocks
READ Latency
CL
AL + CL
WRITE Latency
fixed
READ latency - 1 clock
I/O Width
x4/ x8 /x16
x4/ x8 /x16
Output Calibration
none
OCD
Data Strobes
bidirectional strobe
(single ended)
bidirectional strobe
(single ended or differential) with RDQS
On-Die Termination
none
selectable
Burst Lengths
2, 4, 8
4,8



Real GbE LAN
  True GbE Ethernet - PCI-E Ethernet
  WSB-9154_GbE-LAN
PCI-E 2.5Gbps of raw bandwidth in each direction
PCI 32 / 33MHz 1.056Gbps raw bandwidth in both directions
Gigabit Ethernet max. Bandwidth of 1Gbps in each direction

Performance Difference
PCI-E vs PCI
  WSB-9154 utilizes PCI Express bus to increase networking bandwidth. Compared with Ethernet running on PCI buses, it provides at least 145% more efficiency.
Dedicate VS Share Bandwidth





Lockable SATA
  With retention latches on SATA connectors, connection to SATA drives is safe from vibration and accidental impact.


Parallel ATA Serial ATA SATA Advantage
Up to 133 Mb/sec Up to 150 Mb/sec (1.5Gb/sec) Faster, and room for expansion
Tiny Jumpers No Master/Slave, Point to Point Easy of use
18" cable Up to 39" (1 meter) cable Easy of integration
2"-wide ribbon cable Thin cable (1/4") Improved system airflow
80 conductors 7-wire differential (noise canceling) Eliminates data integrity problems
40 pin and socket Blade and Beam connector (snap in) Easy of use
2"-wide data connector 1/2"-wide data connector Ease of integration
Onboard DMA controller First-party DMA support Performance enhancement
High 5V tolerance for legacy drives Low voltage (.25V) tolerance Design improvement
Limited
(legacy command queuing)
Intelligent Data Handling Performance enhancement
--------- Hot Swap Ease of integration
CRC on data only Cyclic Redundancy Check on data, command, status Enhance data protection


Function Upgrade


RoHS Compliance
IEI is committed to compliance with all applicable laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) in electrical and electronic products. The goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. With IEI ' s new lead free production, all customers can start to work for their long term projects without worry about the RoHS regulation.





Evolution in 915 Family
  Born for today¡¯s applications, WSB-9154 is powered by runs on Intel® LGA775 CPU up to 3.8 GHZ, 4 DDRII memory DIMMs up to 4GHz, and Dual PCI Express Gb Ethernet controllers. WSB-9154 is a natural successor to WSB-9150 for those who crave for extreme performance

Model Name
WSB-9150
WSB-9154
Form Factor
PICMG
PICMG
Chipset
i915GV
i915GV
CPU Socket
S-478
LGA775
CPU FSB
800
800
CPU Frequency (GHz)
3.4
3.8
Memory Socket
DDR*2
DDRII*4
Memory Frequency
DDR400
DDRII400/533
IDE (drive)
1
1
SATA (drive)
4
4
LAN
PCI-E GbE
Dual PCI-E GbE
SSD
NA
NA
AUDIO
Optional
Optional
Cooler
CF-514/CF-519
CF-520
IEI WSB-9154
IEI WSB-9150

WSB-9154 Specification

CPU
Intel® CPU ®LGA775 P4 Prescott/Celeron-D support 800/533 MHz FSB up to 3.8GHz with Hyper-Threading Technology.
System Chipset
Intel® 915GV + ICH6
BIOS
AMI Flash BIOS
SMIBIOS (DMI) compliant
Console redirection function support
PXE (Pre-Boot Execution Environment ) support USB booting support
System Memory
4 x DDRII 240-pin sockets of 533/400MHz DDR SDRAM up to 4GHz
Ethernet
Dual Marvell 88E8053
I/O
I/O Interface
2 x RS-232 by 2 x 5 pin header
1 x LPT by 2 x 13 pin header
1 x IrDA by 1 x 5 pin header
1 x USB connector
6 x USB 2.0 by 2 x 4 pin header
4 x SATA-150 connectors
1 x FDD by 2 x 17 Pin header
1 x PS2 Keyboard / Mouse
2x5 Pin header for 4 input/4 output GPIO
Display
Graphic Controller

Intel® Graphics Media Accelerator 900
Silicon Image SIL1362CLU SDVO -> DVI
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Power Supply
4 pin ATX 12V, 20 pin ATX Power on PICMG1.0 backplane
Power Consumption
+5V 3.86A, +12V 5.21A (P4-3.4GHz/2M/800, 1GB DDRII 533 x 2)
Temperature
operation: 0 ~ 60º (32 ~ 140ºF)
Humidity
operation: 5% ~ 95% non-condensing
Dimension
338(W)mm X 122(L)mm
Weight
GW: 1.2Kg

WSB-9154 Ordering Information

WSB-9154 Packing List
1 x WSB-9154 single board computer
1 x RS-232 cable (P/N: 19800-000051-RS)
1 x Mini jumper pack (P/N: 33100-000079-RS)
1 x USB cable (P/N: CB-USB02-RS)
1 x ATA 66/100 flat cable (P/N: 32200-000052-RS)
1 x Utility CD (P/N:IEI-7B000-000087/CD1)
2 x SATA cable (P/N: 32000-062800-RS)
1 x QIG (quick installation guide)
1 x SATA power cable (P/N: 32100-088600-RS)

1 x Keyboard/ PS2 mouse Y cable (P/N: 32000-000138-RS)



WSB-9154 Ordering Information
Part No.
Description
WSB-9154-R10
PICMG 1.0 LGA775 Intel Pentium4/ Celeron-D CPU Card with VGA, Dual GbE and SATA
WSB-9154DVI-R10
PICMG 1.0 LGA775 Intel Pentium4/ Celeron-D CPU Card with VGA, Dual GbE, SATA and DVI function
CF-520-RS
CPU Cooler
AC-KIT08R-R10
Audio Kit
32100-087100-RS
1 x ATX-12V cable
32200-000017-RS
FDD cable
32200-000040-RS LPT cable

WSB-9150 Ordering Information

Part No.
Description
WSB-9150-R10
PICMG 1.0 Socket478 800HMz FSB CPU Card with VGA, PCI-Express GbE, SATA, USB2.0
WSB-9150DVI-R10
PICMG 1.0 Socket478 800HMz FSB CPU Card with VGA, PCI-Express GbE, SATA, USB2.0 and DVI Function
