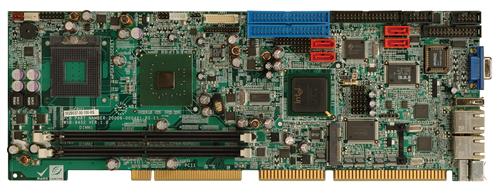

WSB-9452 Dual Core Processor Build in VIA-MARK Platform A Dual-Core IntelR Processor Benefit Two physical Cores in a package to share    system loading Each with its own L1 cache and share the    L2 cache to enhance processing speed Each with its own execution resources    with truly parallel multi-tasking and    threaded execution. Increased throughput. Core™ 2 Duo Core™ Duo Pentium M Processor Number T7600 T2500 760 Architecture 65-nm 65-nm 90-nm L2 Cache 4MB 2MB 2MB Clock Speed 2.33 GHz 2 GHz 2 GHz Front Side Bus 667 MHz 667 MHz 533 MHz Chipset 945GM 945GM 915GM Power (TDP) 34W 31W 27W  Low Power Processor   Perfomance Comparison Intel technology generation with Intel® Pentium®M Proc essor 780 and Intel® 915GM with Intel® Core™ Duo Proc essor 780 and Intel® 915GM Express with Intel® Core™2 Duo Proc essor T7600 and Intel® 945GM Express Perfomance Results Single-core Dual-core Dual-core SYSmark* 2004 SE1 Overall score (%improvement) 182 (Baseline) 243 (+34%) 273 (+50%) MobileMark* 2005 office Productivity 2 Perfomance 215 253 (Baseline) 298 283 (+12%) 306 300 (+19%) PCMark* 053 Overall score (%improvement) CPU Test (%improvement) 2350 (Baseline) 3587 (Baseline) 3646 (+55%) 5399 (+51%) 3957 (+68%) 5909 (+65%) 3DMark* 054 Overall score (%improvement) CPU Test (%improvement) 254 (Baseline) 2259 (Baseline) 593 (+55%) 4186 (+51%) 621 (+68%) 5261 (+65%) SPEC* CPU2000 Rate SPECint*_rate_base2000 20.7 (Baseline) 38.9 (+88%) 49.2 (+138%)  Low Power Processor  Compatible Chipset IPD Chipset Compat ability Matrix Processor Generation Code Name Intel 855GME Chipset (Montera GM) Intel 915GM Express Chipset (Alviso GM) Intel 945GM Express Chipset (Calistoga GM) Intel GM965 Chipset (Crestline) Intel Core 2 Duo Processor T7500 Merom 800 o Intel Core 2 Duo Processor LV L7500 Merom 800 o Intel Core 2 Duo Processor T7400 Merom 667 o Intel Core 2 Duo Processor LV T7400 Merom 667 o Intel Core  Duo Processor T2500 Yonah o Intel Core  Duo Processor Low Voltage L2400 Yonah o Intel Core  Duo Processor Ultra Low Voltage U2500 Yonah Intel Pentium M Processor 760 Dothan o Intel Pentium M Processor 745 Dothan o o Intel Pentium M Processor Low Voltage 738 Dothan o o Intel Celeron M Processor TBD Merom o Intel Celeron M Processor 530 Merom o Intel Celeron M Processor 440 Yonah o Intel Celeron M Processor 370 Dothan o o¡¡ Intel Celeron M Processor 320 Banias o Intel Celeron M Proc ssor Ultra Low Voltage 423 Yonah o Intel Celeron M Proc ssor Ultra Low Voltage 373 Dothan o o    PCIe mini card  smaller but faster PCIe mini concept The PCI Express Mini Card replaces the Mini PCI card, which is a small internal card functionally identical to standard desktop computer PCI cards. Mini PCI cards are used mainly to add communications functions to portable computers that are built- or customized-to-order. The PCI Express Mini Card is half the size of the Mini PCI card. Benefit Half the size of mini-PCI Higher bandwidth interface Rigid mechanical spec. IEEE WLAN Standard Over-the-Air (OTA) Estimates Media Access Control Layer, Service Access Point (MAC SAP) Estimates 802.11b 11 Mbps 5 Mbps 802.11g 54 Mbps 25 Mbps (when .11b is not present) 802.11a 54 Mbps 25 Mbps 802.11n 200+ Mbps 100 Mbps  Dual GbE Support ASF2.0 ASF2.0 Features Remote management in low-power or OS absent states Bi-directional communication. Plug and play System Health Monitor / Asset Security Management / Remote Control  Real-Time Thermal Test       Meeting your power budget is essential for attaining system performance and cost goals. Low power enables higher clock frequency, higher reliability, better noise margins, and reduced capital and operational costs.  Value Add Options DVI Function WSB-9452 Silicon Image SIL 1362CLU on WSB-9452 IO-KIT-001 DVI bracket with 4 USB Ports WSB-9452 DVI Pure Digital Graphic Signals Audio Function AC-KIT-08R module 5.1 Channel upgrading Realtek ALC655 WSB-9452 + AC-KIT-08R =Upgrading 5.1 Channel Audio Function in WSB-9452 JMB SATA Raid 0,1 Feature Compliance ‧ Compliant with Serial ATA AHCI (Advanced Host Controller    Interface) Spec. Reversion 1.0 ‧ Compliant with PCI Express Base Spec. Revision 1.0a ‧ Compliant with Serial ATA High Speed Serialized AT Attachment    Spec. Revision 1.0a ‧ Compliant with Serial ATA II: Extensions to Serial ATA 1.0a    Revision 1.1 ‧ Compliant with Gen1m and Gen2m Serial ATA II: Electrical Spec.    Revision 1.0 Specification   CPU Socket 479 Intel Core2 Duo, Core  Duo/Solo with 533/ 667 MHz FSB System Chipset Intel 945GM + ICH7M BIOS AMI Flash BIOS System Memory 2 x 240-pin Dual channel DDRII 400/533/667 MHz up to 2GB Ethernet Dual Broadcom BCM5787 PCI express GbE with ASF2.0 remote control support I/O I/O Interface 2 x RS232 7 x USB 2.0 1 x IDE (2 x IDE, WSB-9452S/WSB-9452S-DVI Only) 1 x FDD 1 X LPT 2 x SATAII (4 x SATAII by JMB363 WSB-9452S/9452S-DVI Only) 1 x PCI Express Mini card 1 x IrDA 1 x PS/2 for KB/MS 1 x 20-pin LPC (TPM Module) Digital I/O 8 bit digital I/O, 4 input / 4 output Display VGA integrated in Intel 945GM DVI (WSB-9452DVI/WSB-9452S-DVI) LVDS Dual Channel 18-bit LVDS Audio 5.1 Channel Audio Kit with Realtek ALC655 Watchdog Timer Software programmable supports 1~255 sec. system reset Power Supply AT/ATX Power Power Consumption 5V@7.15A,+12V@0.14A (YONAH DUAL CORE 1.83GHZ,DDR2 667MHz 1GB*2)-3D MARK Temperature operation: 0 ~ 60º (32 ~ 140ºF) Humidity operation: 5% ~ 95% non-condensing Dimension 338(L)mm x 122(W)mm Weight GW: 1.2Kg    Packing List 1 x WSB-9452 single board computer 2 x SATA cable (P/N: 32000-062800-RS) 1 x Mini jumper pack 1 x KB/MS Y cable (P/N:32000-000138-RS) 1 x ATA 66/100 flat cable (P/N:32200-000052-RS) 1 x USB cable (P/N:CB-USB02-RS) 1 x Dual RS232 cable (P/N: 19800-000051-RS) 1 x Utility CD 1 x SATA Power cable (P/N: 32100-088600-RS) 1 x QIG 1 x IO-KIT-001-R20 (DVI Only)    Ordering Information Part No. Description WSB-9452-R10 PICMG1.0 Intel Core  2 Duo 533/ 667MHz processor, CRT/LCD, Dual PCIE GbE, and 2xSATAII. WSB-9452DVI-R10 PICMG1.0 Intel Core  2 Duo 533/ 667MHz processor, CRT/LCD/DVI, Dual PCIE GbE, and 2xSATAII. WSB-9452S-R10 PICMG1.0 Intel Core  2 Duo 533/ 667MHz processor, CRT/LCD, Dual PCIE GbE, and 4xSATAII. WSB-9452SDVI-R10 PICMG1.0 Intel Core  2 Duo 533/ 667MHz processor, CRT/LCD/DVI, Dual PCIE GbE, and 4xSATAII. CF-479B-RS CPU cooler 19800-000056-RS HDTV out cable with Comsite, Component and S-Video output AC-KIT08R-R10 5.1 Channel Audio Kit with Realtek ALC655 32200-000017-RS FDD cable 19800-000049-RS LPT cable
