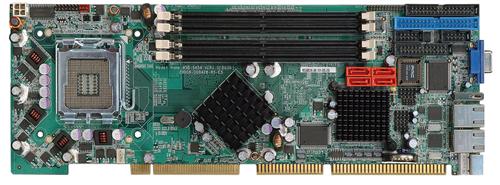

WSB-9454

PICMG 1.0 LGA775 Intel Core 2 Duo, Pentium D/4, Celeron D CPU with VGA/ DVI, Dual PCIE GbE, SATAII and Audio


 Platform Positioning

Processors and TDP Intel Core 2 Duo processor E6300 Intel Pentium D processor 950
TDP 65 Watts 130 Watts
Intel Pentium D Processor 950 have 50% higher TDP than Intel Core 2 Duo processor E6300.

£¨900series£© TDP
950 130 W
940 130 W
930 95 W
920 95 W
£¨800series£© TDP
840 130 W
830 130 W
820 95 W



 Platform Generation




 Microsoft Vista AERO Support



Full AERO professional experience supported on current Intel integrated graphics chipsets
  » Desktop ¨C Inte  945G Express chipset
  » Mobile ¨C Inte  945GM Express chipset
  » No discrete graphics card required
WDDM drivers available today
  » Desktop drivers bundled with latest Windows Vista CTP build
  » Mobile drivers are available through mobile PC vendors
  » Support for all Windows Vista SKUs, including Ultimate Edition
  » Intel Production WDDM drivers will be available via support.intel.com and through Windows Update



 Value Add Options




 Specifications

CPU
LGA775 INTEL Core 2 Duo, Pentium D/4, Celeron D with 533/800/1066 MHz FSB
System Chipset
Intel 945G+ ICH7
BIOS
AMI Flash BIOS
System Memory
4 x 240-pin Dual channel DDRII 400/533/667 Mhz up to 8GB
Ethernet
Dual Broadcom BCM5787 PCI express GbE
I/O
I/O Interface
2 x RS232
7 x USB 2.0
1 x IDE
1 X LPT
4 x SATAII-300
1 x IrDA
1 x PS2 for KB/MS
Digital I/O
8 bit digital I/O, 4 input / 4 output
Display
  VGA integrated in Intel 945G DVI by silconimage SIL1362 (WSB-9454DVI Only)
Audio
  Option 5.1 or 7.1 Channel Audio Kit
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Power Supply
ATX Power
Power Consumption
+5V@6.75A,+12V@7.24A (Pentium® 4 3.0GHz, DDR2 533MHz 1GBx4)-3D MARK
Temperature
operation: 0 ~ 60¡ãC (32 ~ 140¡ãF)
Humidity
operation: 5% ~ 95% non-condensing
Dimension
338(L)mm x 122(W)mm
Weight
GW: 1.2Kg



 Pack List & Order Information

Packing List
1 x WSB-9454 single board computer 2 x SATA cable (P/N: 32000-062800-RS)
1 x Mini jumper pack 1 x KB/MS Y cable (P/N:32000-000138-RS)
1 x ATA 66/100 flat cable (P/N:32200-000052-RS) 1 x USB cable (P/N:CB-USB02-RS)
1 x Dual RS232 cable (P/N: 19800-000051-RS) 1 x Utility CD
1 x SATA Power cable (P/N: 32100-088600-RS) 1 x QIG
1 x IO-KIT-001-R20 (DVI Only)

Order Information
WSB-9454-R10 PICMG1.0 Intel Pentium D 1066MHz processor, VGA, Dual PCIE GbE, and SATAII.
WSB-9454DVI-R10 PICMG1.0 Intel Pentium D 1066MHz processor, VGA/ DVI, Dual PCIE GbE, and SATAII.
AC-KIT08R-R10 5.1 Channel Audio Kit with Realtek ALC655
CF-520-RS CPU Cooler support Pentium 4 up to 3.4 GHz
32200-000017-RS FDD cable
19800-000049-RS LPT cable
CF-775A-RS CPU Cooler support Pentium D up to 3.6 GHz
AC-KIT-883HD-R10 7.1 Channel Audio Kit
